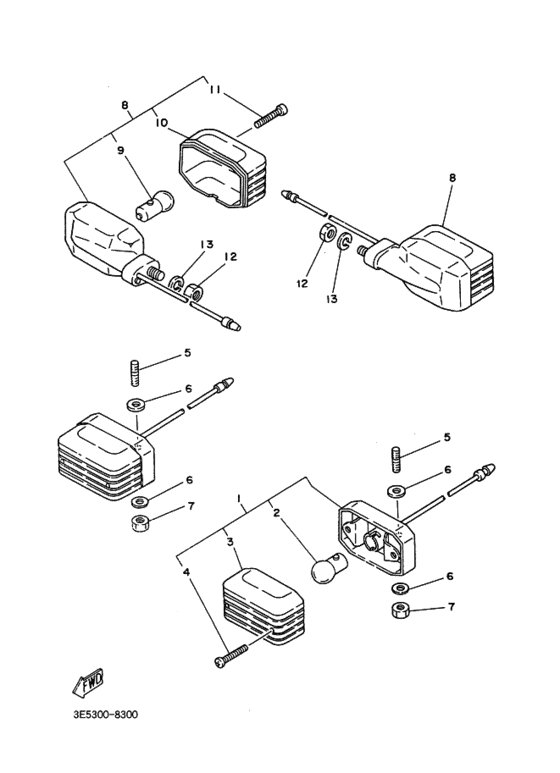

Flasher light Diagram Yamaha V80 V80IIID
- Year
- 1978
- Colour
- New High Sparkle Green (NHG; 00V9)
- Model code
- 3E5
- Sales region
- Japan (010)
- Engine Capacity
- 80
- Color Variant
- B
- Model
- V80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3E1-83310-10-93
Front Flasher Light Assy 1
フロントフラツシヤライトアセンブリ; ＣＭ |
3E1-83310-10-93 |
— | ||
|
1
|
1
3E1-83320-10-93
Front Flasher Light Assy 2
ＣＭ |
3E1-83320-10-93 |
— | ||
|
2
|
2
152-83311-10-00 Bulb 6V 10W．バルブ; ６Ｖ−１０Ｗ |
152-83311-10-00 |
US $2.77 |
||
|
3
|
3
2W1-83312-10-00 Lens, Flasher．レンズ，フラツシヤ; |
2W1-83312-10-00 |
US $14.25 |
||
|
4
|
4
98501-03032-00 Screw, Pan Head．スクリユ，パンヘツド; |
98501-03032-00 |
US $1.21 |
||
|
5
|
5
90116-06282-00 Bolt, Stud |
90116-06282-00 |
US $3.54 |
||
|
6
|
6
92901-06200-00 Washer, Plainワツシヤ，プレート; |
92901-06200-00 |
from US $1.07 |
||
| replacement | |||||
|
6
|
6
92990-06200-00 Washer, Plainワツシヤ，プレート; |
92990-06200-00 |
from US $1.18 |
||
|
7
|
7
95301-06700-00 Nut |
95301-06700-00 |
from US $1.43 |
||
| replacements | |||||
|
7
|
7
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.52 |
||
|
7
|
7
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.52 |
||
|
8
|
8
3E1-83340-10-93
Rear Flasher Light Assy 2
ＣＭ |
3E1-83340-10-93 |
— | ||
|
9
|
9
152-83311-10-00 Bulb 6V 10W．バルブ; ６Ｖ−１０Ｗ |
152-83311-10-00 |
US $2.77 |
||
|
10
|
10
2W1-83312-10-00 Lens, Flasher．レンズ，フラツシヤ; |
2W1-83312-10-00 |
US $14.25 |
||
|
11
|
11
98501-03032-00 Screw, Pan Head．スクリユ，パンヘツド; |
98501-03032-00 |
US $1.21 |
||
|
12
|
12
95301-08600-00 Nut Hexagon (738) |
95301-08600-00 |
from US $1.28 |
||
| replacements | |||||
|
12
|
12
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
12
|
12
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
|
13
|
13
929-01081-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-01081-00-00 |
— | ||
| replacement | |||||
|
13
|
13
92990-08100-00 Ybs67-8 Washer, Springワツシヤ，スプリング; |
92990-08100-00 |
from US $1.66 |
||
