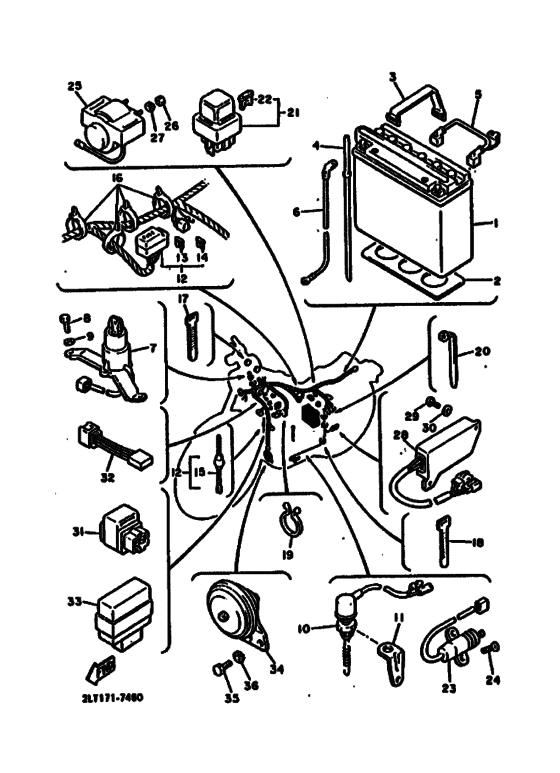

Electrical 2 Diagram Yamaha VMX12 V-MAX
- Year
- 1988
- Colour
- Apple Red (ARE; 00LG)
- Model code
- 2LT0
- Sales region
- Europe (010)
- Engine Capacity
- 1200
- Color Variant
- A
- Model
- VMX12
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5E3-82110-80-00 Battery Assy |
5E3-82110-80-00 |
US $258.36 |
||
| replacements | |||||
|
1
|
1
907-9EY00-03-00
Battery (Yb16Al-A2)
|
907-9EY00-03-00 |
— | ||
|
1
|
1
BTG-CB16A-LA-00
Battery
|
BTG-CB16A-LA-00 |
— | ||
|
1
|
1
YB1-6ALA2-00-00
Bat Yb16Al-A2 (Cb16Al-A2) Yu
|
YB1-6ALA2-00-00 |
— | ||
|
2
|
2
1FK-82122-00-00 Seat, Battery |
1FK-82122-00-00 |
from US $23.80 |
||
|
3
|
3
1E6-82131-00-00 Band, Battery |
1E6-82131-00-00 |
from US $14.51 |
||
|
4
|
4
1FK-82112-00-00 Pipe, Breather |
1FK-82112-00-00 |
from US $13.76 |
||
|
5
|
5
1UT-82115-00-00
Wire, Plus Lead
|
1UT-82115-00-00 |
— | ||
|
6
|
6
1FK-82116-00-00 Wire, Minus Lead |
1FK-82116-00-00 |
from US $36.65 |
||
|
7
|
7
1FK-82510-00-00 Main Switch Assy |
1FK-82510-00-00 |
from US $109.72 |
||
| replacement | |||||
|
7
|
7
1FK-82510-01-00 Main Switch Assy |
1FK-82510-01-00 |
US $290.51 |
||
|
8
|
8
97006-06012-00 Bolt |
97006-06012-00 |
from US $1.21 |
||
| replacement | |||||
|
8
|
8
97017-06012-00 Bolt |
97017-06012-00 |
from US $1.39 |
||
|
9
|
9
929-06066-00-00
Washer
|
929-06066-00-00 |
— | ||
| replacement | |||||
|
9
|
9
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
10
|
10
1FK-82530-00-00 Stop Switch Assy |
1FK-82530-00-00 |
from US $25.70 |
||
| replacement | |||||
|
10
|
10
1FK-82530-02-00
Stop Switch Assy
|
1FK-82530-02-00 |
— | ||
|
11
|
11
1FK-82539-00-00 Stay, Stop Switch |
1FK-82539-00-00 |
from US $2.97 |
||
|
12
|
12
1UT-82590-00-00
Wire Harness Assy
|
1UT-82590-00-00 |
— | ||
| replacement | |||||
|
12
|
12
1UT-82590-01-00
Wire Harness Assemblyassy
|
1UT-82590-01-00 |
— | ||
|
13
|
13
42X-82151-20-00 Fuse (10A-Bl)12V-10A |
42X-82151-20-00 |
from US $1.56 |
||
| replacement | |||||
|
13
|
13
42X-82151-00-00 Fuse (10A-Bl)12V-10A |
42X-82151-00-00 |
from US $1.66 |
||
|
14
|
14
36Y-82151-00-00 Fuse (15A-Blue)12V-15A |
36Y-82151-00-00 |
from US $2.86 |
||
|
15
|
15
3H5-81980-00-00 Diode AssyRectifier 2 |
3H5-81980-00-00 |
from US $14.45 |
||
|
16
|
16
12R-82591-00-00
Band
|
12R-82591-00-00 |
— | ||
| replacement | |||||
|
16
|
16
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.52 |
||
|
17
|
17
437-83936-00-00
Band, Switch Cord
|
437-83936-00-00 |
— | ||
| replacement | |||||
|
17
|
17
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
18
|
18
437-83936-00-00
Band, Switch Cord
|
437-83936-00-00 |
— | ||
| replacement | |||||
|
18
|
18
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
19
|
19
90464-16039-00 Clamp (3Y2) |
90464-16039-00 |
from US $1.81 |
||
|
20
|
20
904-64130-73-00
Clamp
|
904-64130-73-00 |
— | ||
| replacement | |||||
|
20
|
20
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.39 |
||
|
21
|
21
1AE-82150-00-00 Fuse Holder Assy |
1AE-82150-00-00 |
from US $38.41 |
||
|
22
|
22
1AE-82151-00-00 Fuse (30A-Bl)12V-30A |
1AE-82151-00-00 |
from US $2.02 |
||
|
23
|
23
5H0-82566-00-00 Switch, Side Stand |
5H0-82566-00-00 |
from US $107.77 |
||
| replacement | |||||
|
23
|
23
33E-82566-00-00 Switch, Side Stand |
33E-82566-00-00 |
from US $118.82 |
||
|
24
|
24
90152-05021-00 Screw, Flat Head |
90152-05021-00 |
from US $1.42 |
||
| replacement | |||||
|
24
|
24
98707-05016-00 Screw, Flat Head |
98707-05016-00 |
from US $1.35 |
||
|
25
|
25
36Y-81940-00-00 Starter Relay Assy |
36Y-81940-00-00 |
from US $87.73 |
||
|
26
|
26
95302-06700-00 Nut, Hexagon |
95302-06700-00 |
from US $1.42 |
||
| replacements | |||||
|
26
|
26
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.52 |
||
|
26
|
26
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.52 |
||
|
27
|
27
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
27
|
27
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
28
|
28
42X-81960-A0-00
Rectifier & Regulator Assy
|
42X-81960-A0-00 |
— | ||
| replacement | |||||
|
28
|
28
42X-81960-A1-00 Rectifier & Regulator Assembly |
42X-81960-A1-00 |
from US $357.83 |
||
|
29
|
29
92501-06012-00 Screw, Pan Head |
92501-06012-00 |
from US $1.56 |
||
| replacement | |||||
|
29
|
29
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.66 |
||
|
30
|
30
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
31
|
31
4U8-81950-01-00 Relay Assyfor side stand |
4U8-81950-01-00 |
from US $83.86 |
||
| replacements | |||||
|
31
|
31
4U8-81950-02-00 Relay Assy (4U8-02)for side stand |
4U8-81950-02-00 |
from US $83.86 |
||
|
31
|
31
4U8-81950-03-00 Relay Assyfor side stand |
4U8-81950-03-00 |
US $97.13 |
||
|
32
|
32
4U8-81980-M0-00 Diode Assyfor side stand safty davise |
4U8-81980-M0-00 |
from US $57.89 |
||
|
33
|
33
41R-83350-71-00 Flasher Relay Assy |
41R-83350-71-00 |
from US $147.83 |
||
| replacement | |||||
|
33
|
33
41R-83350-72-00 Flasher Relay Assy |
41R-83350-72-00 |
from US $147.83 |
||
|
34
|
34
1FK-83371-02-00
Horn
|
1FK-83371-02-00 |
— | ||
|
35
|
35
97006-06016-00 Bolt |
97006-06016-00 |
from US $1.21 |
||
| replacement | |||||
|
35
|
35
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.39 |
||
|
36
|
36
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
36
|
36
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
