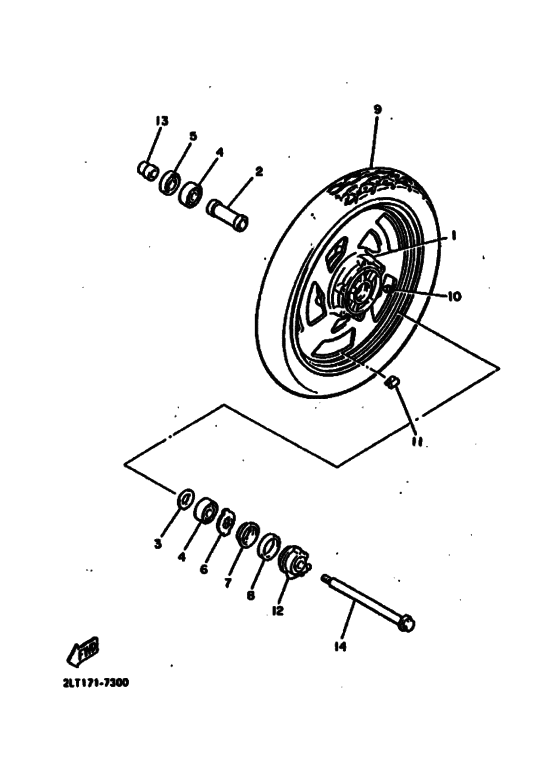

Front wheel Diagram Yamaha VMX12 V-MAX
- Year
- 1988
- Colour
- Apple Red (ARE; 00LG)
- Model code
- 2LT0
- Sales region
- Europe (010)
- Engine Capacity
- 1200
- Color Variant
- A
- Model
- VMX12
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2HY-25168-00-JK
Wheel, Cast Front
warm silver |
2HY-25168-00-JK |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
warm silver |
999-99999-99-00 |
— | ||
|
2
|
2
90560-17322-00 Spacer |
90560-17322-00 |
from US $12.75 |
||
|
3
|
3
148-25315-00-00 Flange, Spacer |
148-25315-00-00 |
from US $3.40 |
||
| replacement | |||||
|
3
|
3
146-25315-00-00 Flange, Spacer |
146-25315-00-00 |
from US $3.74 |
||
|
4
|
4
93306-30301-00 Bearing |
93306-30301-00 |
from US $3.38 |
||
| replacement | |||||
|
4
|
4
93306-30302-00 Brg,r-B 6303 47Mm 115G Nk |
93306-30302-00 |
from US $19.55 |
||
|
5
|
5
93102-28022-00 Oil Seal |
93102-28022-00 |
from US $7.07 |
||
|
6
|
6
341-25149-00-00 Clutch, Meter |
341-25149-00-00 |
from US $4.43 |
||
|
7
|
7
341-25846-00-00 Retainer, Clutch |
341-25846-00-00 |
from US $3.33 |
||
|
8
|
8
93105-45017-00 Oil Seal |
93105-45017-00 |
from US $10.83 |
||
|
9
|
9
941-11185-N0-00 Tire (110/90-V18 G525Aw)110/90-V18 G525AW; UR bridgestone |
941-11185-N0-00 |
US $299.18 |
||
| replacement | |||||
|
9
|
9
94111-1805F-00 Tire (110/90-18 M/c 61V G525)Tire (110/90-v18 g525) 110/90-V18 G525AW; UR bridgestone |
94111-1805F-00 |
US $294.70 |
||
|
9
|
9
94111-186N6-00 Tire (110/90-V18 F20)110/90-V18 F20; UR dunloP |
94111-186N6-00 |
US $204.98 |
||
| replacements | |||||
|
9
|
9
94111-1805F-00 Tire (110/90-18 M/c 61V G525)Tire (110/90-v18 g525) 110/90-V18 F20; UR dunloP |
94111-1805F-00 |
US $294.70 |
||
|
9
|
9
94111-1805D-00 Tire (110/90-18 M/c 61V F20)Tire (110/90- v18 f20) 110/90-V18 F20; UR dunloP |
94111-1805D-00 |
US $204.98 |
||
|
10
|
10
93900-00016-00 Valve, Rim (Pvr59A)UR bridgestone |
93900-00016-00 |
from US $14.42 |
||
| replacement | |||||
|
10
|
10
93900-00025-00 Valve, Rim (Pvr59A)UR bridgestone |
93900-00025-00 |
from US $17.85 |
||
|
10
|
10
93900-00017-00 Valve, RimUR dunloP |
93900-00017-00 |
from US $14.42 |
||
| replacement | |||||
|
10
|
10
93900-00025-00 Valve, Rim (Pvr59A)UR dunloP |
93900-00025-00 |
from US $17.85 |
||
|
11
|
11
29L-25398-00-00
Balancer, Wheel (10G)
10G; UN |
29L-25398-00-00 |
— | ||
| replacement | |||||
|
11
|
11
5MT-25398-00-00 Balancer, Wheel (10G)10G; UN |
5MT-25398-00-00 |
from US $8.46 |
||
|
11
|
11
29L-25398-10-00
Balancer, Wheel (20G)
20G; UN |
29L-25398-10-00 |
— | ||
| replacement | |||||
|
11
|
11
5MT-25398-10-00 Balancer, Wheel (20G)20G; UN |
5MT-25398-10-00 |
from US $8.46 |
||
|
11
|
11
29L-25398-20-00 Balancer, Wheel (30G)30G; UN |
29L-25398-20-00 |
from US $7.65 |
||
| replacement | |||||
|
11
|
11
5MT-25398-20-00 Balancer, Wheel (30G)30G; UN |
5MT-25398-20-00 |
from US $8.46 |
||
|
12
|
12
1FK-25190-00-00 Gear Unit Assy |
1FK-25190-00-00 |
from US $74.79 |
||
| replacement | |||||
|
12
|
12
1FK-25190-02-00 Gear Unit Assy |
1FK-25190-02-00 |
from US $88.01 |
||
|
13
|
13
903-87173-R6-00
Collar
|
903-87173-R6-00 |
— | ||
| replacement | |||||
|
13
|
13
90387-173H2-00 Collar (26H) |
90387-173H2-00 |
US $19.71 |
||
|
14
|
14
1FK-25181-00-00 Axle, Wheel |
1FK-25181-00-00 |
from US $35.60 |
||
| replacement | |||||
|
14
|
14
1FK-25181-09-00 Axle, Wheel |
1FK-25181-09-00 |
from US $52.78 |
||
