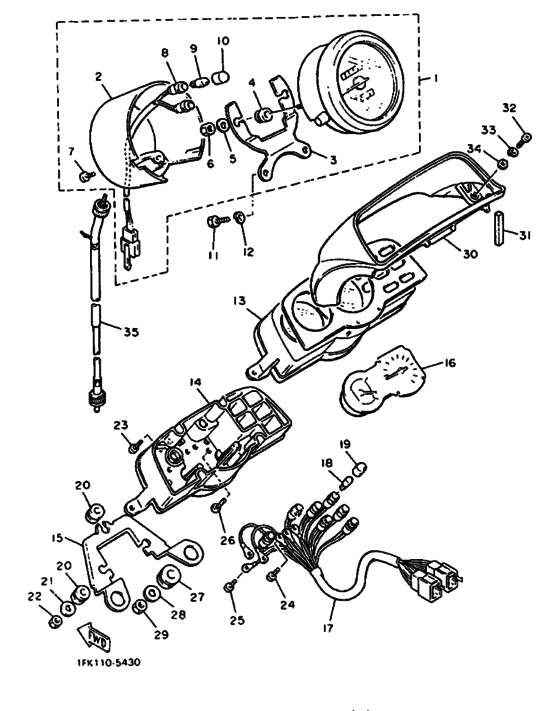

Meter Diagram Yamaha VMX12 V-MAX
- Year
- 1988
- Colour
- Apple Red (ARE; 00LG)
- Model code
- 2LT0
- Sales region
- Europe (010)
- Engine Capacity
- 1200
- Color Variant
- A
- Model
- VMX12
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1GR-83570-F0-00 Speedometer Assy |
1GR-83570-F0-00 |
US $418.50 |
||
| replacement | |||||
|
1
|
1
1GR-83570-F2-00
Speedometer Assy
|
1GR-83570-F2-00 |
— | ||
|
2
|
2
1FK-83507-00-00 Case Comp, Under |
1FK-83507-00-00 |
from US $99.06 |
||
|
3
|
3
1FK-83519-00-00 Bracket, Meter |
1FK-83519-00-00 |
from US $14.24 |
||
|
4
|
4
12R-83523-00-00 Damper |
12R-83523-00-00 |
from US $7.37 |
||
| replacement | |||||
|
4
|
4
1FG-83523-00-00 Damper |
1FG-83523-00-00 |
from US $7.37 |
||
|
5
|
5
90201-05031-00 Washer, Plate |
90201-05031-00 |
from US $1.70 |
||
| replacements | |||||
|
5
|
5
90201-05725-00 Washer, Plate |
90201-05725-00 |
from US $1.70 |
||
|
5
|
5
90201-05043-00 Washer, Plate |
90201-05043-00 |
from US $1.70 |
||
|
6
|
6
953-01056-00-00
Nut
|
953-01056-00-00 |
— | ||
| replacement | |||||
|
6
|
6
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
7
|
7
90164-04009-00 Screw, Tapping |
90164-04009-00 |
from US $2.69 |
||
| replacement | |||||
|
7
|
7
90164-04023-00 Screw, Tapping(71E) |
90164-04023-00 |
from US $1.84 |
||
|
8
|
8
1FK-83509-00-00 Socket Cord Assy |
1FK-83509-00-00 |
from US $56.51 |
||
|
9
|
9
42X-83517-00-00 Bulb (14V-3.4W)12V-3W |
42X-83517-00-00 |
from US $2.83 |
||
| replacement | |||||
|
9
|
9
3FV-83517-00-00 Bulb (12V-1.7W)12V-3W |
3FV-83517-00-00 |
from US $4.99 |
||
|
10
|
10
1FK-83535-00-00 Tube |
1FK-83535-00-00 |
from US $6.66 |
||
|
11
|
11
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
11
|
11
97095-06016-00 Bolt |
97095-06016-00 |
US $1.39 |
||
|
11
|
11
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.39 |
||
|
12
|
12
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
12
|
12
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
13
|
13
1FK-8353G-00-00 Case, Upper |
1FK-8353G-00-00 |
US $103.30 |
||
| replacement | |||||
|
13
|
13
3LR-8353G-00-00 Case, Upper |
3LR-8353G-00-00 |
US $103.30 |
||
|
14
|
14
1FK-8353H-00-00 Case, Under |
1FK-8353H-00-00 |
from US $49.09 |
||
|
15
|
15
1FK-83545-00-00 Bracket, Tachometer |
1FK-83545-00-00 |
from US $12.82 |
||
|
16
|
16
1FK-83540-00-00
Tachometer Assy
|
1FK-83540-00-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
17
|
17
1FK-83520-00-00
Socket Cord Assemblyassy
|
1FK-83520-00-00 |
— | ||
|
18
|
18
42X-83517-00-00 Bulb (14V-3.4W)12V-3W |
42X-83517-00-00 |
from US $2.83 |
||
| replacement | |||||
|
18
|
18
3FV-83517-00-00 Bulb (12V-1.7W)12V-3W |
3FV-83517-00-00 |
from US $4.99 |
||
|
19
|
19
1FK-83535-00-00 Tube |
1FK-83535-00-00 |
from US $6.66 |
||
|
20
|
20
1FK-83523-00-00 Damper |
1FK-83523-00-00 |
from US $3.60 |
||
|
21
|
21
902-01052-E2-00
Washer, Plate
|
902-01052-E2-00 |
— | ||
| replacement | |||||
|
21
|
21
90201-05032-00 Washer Plate 803835240000 |
90201-05032-00 |
from US $1.81 |
||
|
22
|
22
953-01056-00-00
Nut
|
953-01056-00-00 |
— | ||
| replacement | |||||
|
22
|
22
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
23
|
23
90164-04005-00
Screw, Tapping
|
90164-04005-00 |
— | ||
|
24
|
24
90159-03102-00 Screw, With Washer |
90159-03102-00 |
from US $1.84 |
||
|
25
|
25
90159-03044-00 Screw, With Washer |
90159-03044-00 |
from US $2.64 |
||
|
26
|
26
90159-04043-00 Screw, With Washer |
90159-04043-00 |
from US $1.30 |
||
|
27
|
27
90480-14229-00 Grommet |
90480-14229-00 |
from US $1.94 |
||
|
28
|
28
90201-063J2-00 Washer, Plate(36Y) |
90201-063J2-00 |
from US $3.12 |
||
|
29
|
29
95302-06600-00 Nut, Hexagon |
95302-06600-00 |
US $1.07 |
||
| replacement | |||||
|
29
|
29
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
30
|
30
2HY-83559-00-00
Cover, Meter
|
2HY-83559-00-00 |
— | ||
|
31
|
31
1FK-83526-00-00 Damper 2 |
1FK-83526-00-00 |
from US $2.55 |
||
|
32
|
32
98511-04016-00 Screw, Pan Head |
98511-04016-00 |
from US $1.42 |
||
| replacement | |||||
|
32
|
32
985-17040-16-00 Screw, Pan Head |
985-17040-16-00 |
from US $1.52 |
||
|
33
|
33
929-02041-00-00
Washer, Spring
|
929-02041-00-00 |
— | ||
| replacement | |||||
|
33
|
33
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
34
|
34
929-01046-00-00
Washer
|
929-01046-00-00 |
— | ||
| replacement | |||||
|
34
|
34
929-90046-00-00 Washer, Plate |
929-90046-00-00 |
from US $1.07 |
||
|
35
|
35
1FK-83550-00-00
Speedometer Cable Assembly
|
1FK-83550-00-00 |
— | ||
| replacement | |||||
|
35
|
35
1FK-83550-11-00 Speedometer Cable Assembly |
1FK-83550-11-00 |
from US $21.22 |
||
