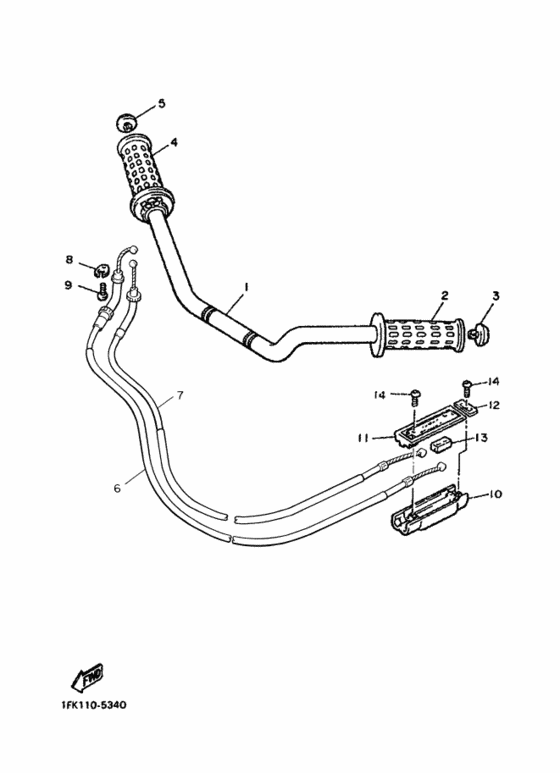

Steering handle & cable Diagram Yamaha VMX12 V-MAX
- Year
- 1988
- Colour
- Apple Red (ARE; 00LG)
- Model code
- 2LT0
- Sales region
- Europe (010)
- Engine Capacity
- 1200
- Color Variant
- A
- Model
- VMX12
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1FK-26111-00-00 Handlebar |
1FK-26111-00-00 |
from US $74.74 |
||
| replacement | |||||
|
1
|
1
1FK-26111-10-00 Handlebar |
1FK-26111-10-00 |
from US $114.88 |
||
|
2
|
2
42X-26241-00-00 Grip Lh |
42X-26241-00-00 |
from US $50.70 |
||
|
3
|
3
26H-2628J-00-00 Cap, Grip |
26H-2628J-00-00 |
from US $10.31 |
||
|
4
|
4
1FK-26240-00-00
Grip Assembly
|
1FK-26240-00-00 |
— | ||
|
5
|
5
26H-2628J-00-00 Cap, Grip |
26H-2628J-00-00 |
from US $10.31 |
||
|
6
|
6
1FK-26311-00-00 Cable, Throttle 1 |
1FK-26311-00-00 |
from US $23.41 |
||
| replacement | |||||
|
6
|
6
1FK-26311-01-00 Cable, Throttle 1 |
1FK-26311-01-00 |
from US $24.08 |
||
|
7
|
7
1FK-26312-00-00 Cable, Throttle 2 |
1FK-26312-00-00 |
from US $23.28 |
||
| replacement | |||||
|
7
|
7
1FK-26312-01-00 Cable, Throttle 2 |
1FK-26312-01-00 |
from US $23.92 |
||
|
8
|
8
5H0-26393-00-00 Holder |
5H0-26393-00-00 |
from US $3.47 |
||
|
9
|
9
985-06050-08-00
Screw, Pan Head
|
985-06050-08-00 |
— | ||
| replacement | |||||
|
9
|
9
985-07050-08-00 Screw, Pan Head |
985-07050-08-00 |
from US $1.07 |
||
|
10
|
10
26H-26261-01-00
Connector, Cable
|
26H-26261-01-00 |
— | ||
| replacement | |||||
|
10
|
10
36Y-26261-00-00
Connector, Cable
|
36Y-26261-00-00 |
— | ||
|
11
|
11
26H-26262-01-00 Cap, Cable Connector |
26H-26262-01-00 |
from US $8.28 |
||
| replacement | |||||
|
11
|
11
36Y-26262-00-00 Cap, Cable Connector |
36Y-26262-00-00 |
from US $7.74 |
||
|
12
|
12
26H-26272-00-00 Cap |
26H-26272-00-00 |
from US $7.93 |
||
| replacement | |||||
|
12
|
12
36Y-26272-00-00 Cap |
36Y-26272-00-00 |
from US $7.93 |
||
|
13
|
13
26H-26244-01-00 Slider, Throttle |
26H-26244-01-00 |
from US $4.53 |
||
|
14
|
14
97706-30112-00 Screw, Tapping |
97706-30112-00 |
from US $1.56 |
||
| replacement | |||||
|
14
|
14
97707-30512-00 Screw, Tapping |
97707-30512-00 |
from US $1.56 |
||
