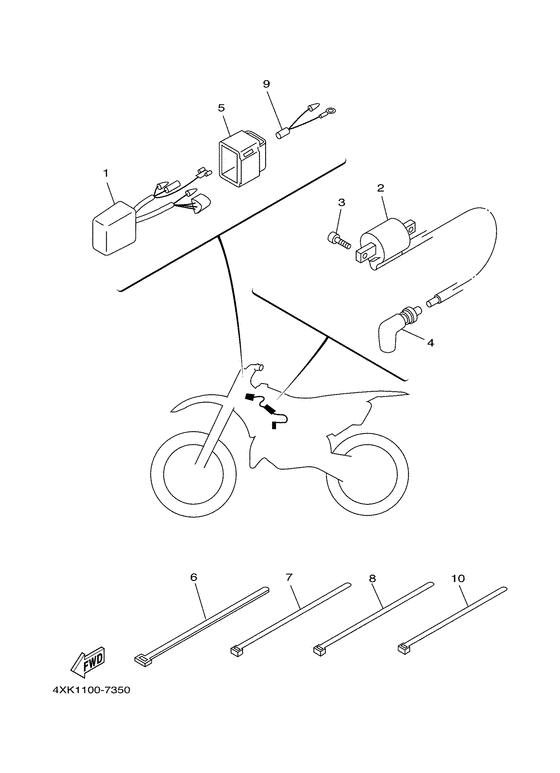

Electrical 1 Diagram Yamaha WR250 WR250Z
- Year
- 1998
- Colour
- Deep Purplish Blue Solid E (DPBSE; 0583)
- Model code
- 5EN2
- Sales region
- Japan (010)
- Engine Capacity
- 250
- Model
- WR250Z
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4MX-85540-00-00
C.d.i. Unit Assembly
|
4MX-85540-00-00 |
— | ||
|
02
|
02
4SR-82310-00-00 Ignition Coil Assy |
4SR-82310-00-00 |
from US $117.85 |
||
| replacements | |||||
|
02
|
02
4MX-82310-00-00
Ignition Coil Assy
|
4MX-82310-00-00 |
— | ||
|
02
|
02
4MX-82310-01-00 Ignition Coil Assy |
4MX-82310-01-00 |
US $100.95 |
||
|
02
|
02
4MX-82310-02-00 Ignition Coil Assy |
4MX-82310-02-00 |
from US $90.59 |
||
|
02
|
02
4MX-82310-02-00 Ignition Coil Assy |
4MX-82310-02-00 |
from US $90.59 |
||
|
03
|
03
91317-06016-00 Bolt |
91317-06016-00 |
from US $1.18 |
||
|
04
|
04
4PE-82370-10-00 Plug Cap Assy |
4PE-82370-10-00 |
from US $28.34 |
||
| replacement | |||||
|
04
|
04
8DG-82370-00-00 Plug Cap Assy |
8DG-82370-00-00 |
from US $28.34 |
||
|
05
|
05
4XK-85546-00-00
Band
|
4XK-85546-00-00 |
— | ||
|
06
|
06
90464-50255-00 Clamp |
90464-50255-00 |
US $3.83 |
||
| replacement | |||||
|
06
|
06
90464-76001-00 Clamp |
90464-76001-00 |
from US $3.83 |
||
|
07
|
07
904-64130-73-00
Clamp
|
904-64130-73-00 |
— | ||
| replacement | |||||
|
07
|
07
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.52 |
||
|
08
|
08
904-65132-75-00
Clamp
|
904-65132-75-00 |
— | ||
| replacement | |||||
|
08
|
08
904-64151-52-00 Clamp |
904-64151-52-00 |
from US $3.05 |
||
|
09
|
09
5X1-82519-01-00
Wire, Earth Lead
|
5X1-82519-01-00 |
— | ||
|
10
|
10
5Y9-12491-00-00 Clamp 1 |
5Y9-12491-00-00 |
from US $1.81 |
||
