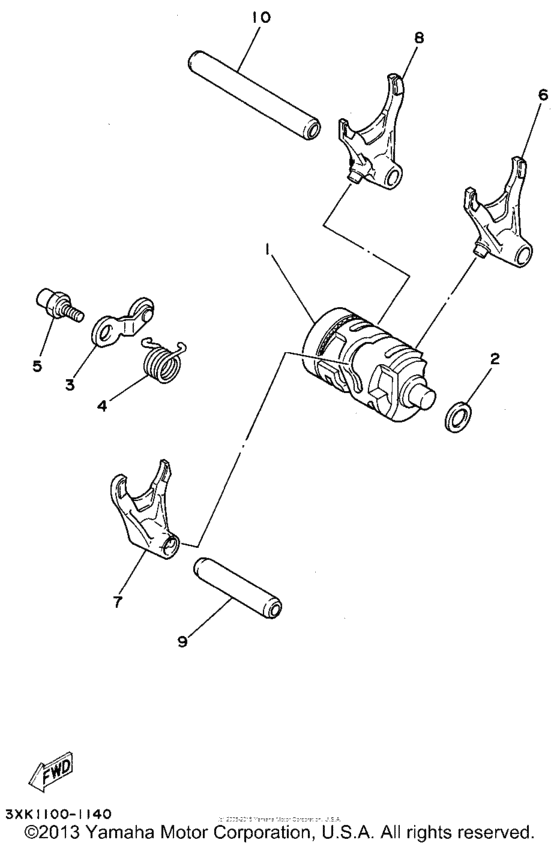

Shift cam - shift fork Diagram Yamaha WR250 WR250Z
- Year
- 1994
- Sales region
- USA
- Базовая модель
- WR250ZF
- Engine Capacity
- 250
- Model
- WR250Z
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3XK-18540-01-00 Shift Cam Assy |
3XK-18540-01-00 |
US $349.56 |
||
|
2
|
2
90201-12166-00 Washer, Plate |
90201-12166-00 |
from US $1.70 |
||
|
3
|
3
3XK-18140-00-00 Stopper Lever Assy |
3XK-18140-00-00 |
from US $23.98 |
||
|
4
|
4
90508-26561-00 Spring, Torsion |
90508-26561-00 |
from US $4.82 |
||
|
5
|
5
3XK-18177-00-00
Bolt, Stopper
|
3XK-18177-00-00 |
— | ||
|
6
|
6
2VM-18511-00-00
Fork, Shift 1
|
2VM-18511-00-00 |
— | ||
|
7
|
7
2VM-18512-00-00
Fork, Shift 2
|
2VM-18512-00-00 |
— | ||
|
8
|
8
2VM-18513-00-00
Fork, Shift 3
|
2VM-18513-00-00 |
— | ||
|
9
|
9
4EX-18531-00-00
Bar, Shift Fork Guide 1
|
4EX-18531-00-00 |
— | ||
|
10
|
10
3XV-18535-00-00 Bar, Shift Fork Guide 2 |
3XV-18535-00-00 |
US $17.20 |
