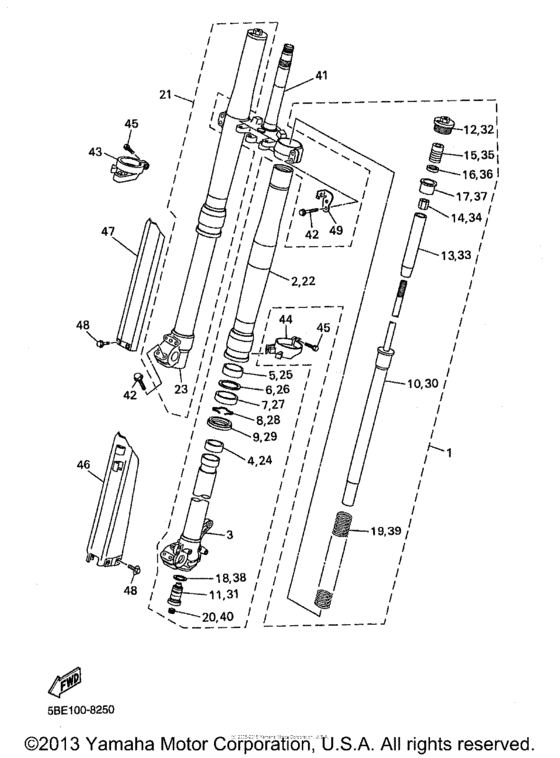

Front fork Diagram Yamaha WR400F
- Year
- 1998
- Sales region
- USA
- Engine Capacity
- 400
- Model
- WR400F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5BF-23102-L0-00
Front Fork Assembly (L.h)
|
5BF-23102-L0-00 |
— | ||
|
2
|
2
5DH-23136-L0-00
Tube, Outer 2
|
5DH-23136-L0-00 |
— | ||
|
3
|
3
5DH-23120-L0-00 Inner Tube Comp. 2 |
5DH-23120-L0-00 |
from US $339.29 |
||
|
4
|
4
4SS-23171-L0-00 Piston, Front Fork |
4SS-23171-L0-00 |
from US $16.36 |
||
| replacement | |||||
|
4
|
4
5ET-23171-L0-00 Piston, Front Fork |
5ET-23171-L0-00 |
from US $18.28 |
||
|
5
|
5
4SS-23125-L0-00 Metal, Slide 1 |
4SS-23125-L0-00 |
from US $24.37 |
||
|
6
|
6
4SS-23146-L0-00 Washer, Oil Seal |
4SS-23146-L0-00 |
from US $10.19 |
||
|
7
|
7
5DH-23145-L0-00 Oil Seal |
5DH-23145-L0-00 |
from US $18.05 |
||
| replacement | |||||
|
7
|
7
5UN-23145-L0-00 Oil Seal |
5UN-23145-L0-00 |
from US $22.20 |
||
|
8
|
8
4SS-23153-L0-00 Ring, Snap |
4SS-23153-L0-00 |
from US $2.91 |
||
|
9
|
9
4SS-23144-L0-00 Seal, Dust |
4SS-23144-L0-00 |
from US $18.14 |
||
| replacement | |||||
|
9
|
9
5HD-23144-L0-00 Seal, Dust |
5HD-23144-L0-00 |
from US $20.25 |
||
|
10
|
10
5DH-23170-L0-00
Cylinder Comp., Front Fork
|
5DH-23170-L0-00 |
— | ||
|
11
|
11
5BF-2316A-L0-00
Valve Comp
|
5BF-2316A-L0-00 |
— | ||
|
12
|
12
5DH-23111-L0-00 Bolt, Cap |
5DH-23111-L0-00 |
from US $154.90 |
||
|
13
|
13
5DH-23142-L0-00 Seat, Spring Upper |
5DH-23142-L0-00 |
from US $26.07 |
||
|
14
|
14
5DH-23393-L0-00 Nut, Special |
5DH-23393-L0-00 |
US $15.16 |
||
|
15
|
15
5DH-23195-L0-00 Rubber |
5DH-23195-L0-00 |
from US $22.39 |
||
|
16
|
16
5DH-23149-L0-00 Washer, Spring Upper |
5DH-23149-L0-00 |
from US $12.04 |
||
|
17
|
17
5DH-23118-L0-00 Spacer |
5DH-23118-L0-00 |
US $29.63 |
||
|
18
|
18
4SS-23158-L0-00 Gasket |
4SS-23158-L0-00 |
from US $5.10 |
||
|
19
|
19
5BE-23141-L0-00 Spring (K=4.41N/mm) |
5BE-23141-L0-00 |
from US $78.88 |
||
|
20
|
20
3JD-2312G-L0-00 Plug |
3JD-2312G-L0-00 |
from US $6.51 |
||
|
21
|
21
5BF-23103-L0-00
Front Fork Assembly (R.h)
|
5BF-23103-L0-00 |
— | ||
|
22
|
22
5DH-23136-L0-00
Tube, Outer 2
|
5DH-23136-L0-00 |
— | ||
|
23
|
23
5BF-23110-L0-00 Inner Tube Comp. 1 |
5BF-23110-L0-00 |
from US $296.89 |
||
|
24
|
24
4SS-23171-L0-00 Piston, Front Fork |
4SS-23171-L0-00 |
from US $16.36 |
||
| replacement | |||||
|
24
|
24
5ET-23171-L0-00 Piston, Front Fork |
5ET-23171-L0-00 |
from US $18.28 |
||
|
25
|
25
4SS-23125-L0-00 Metal, Slide 1 |
4SS-23125-L0-00 |
from US $24.37 |
||
|
26
|
26
4SS-23146-L0-00 Washer, Oil Seal |
4SS-23146-L0-00 |
from US $10.19 |
||
|
27
|
27
5DH-23145-L0-00 Oil Seal |
5DH-23145-L0-00 |
from US $18.05 |
||
| replacement | |||||
|
27
|
27
5UN-23145-L0-00 Oil Seal |
5UN-23145-L0-00 |
from US $22.20 |
||
|
28
|
28
4SS-23153-L0-00 Ring, Snap |
4SS-23153-L0-00 |
from US $2.91 |
||
|
29
|
29
4SS-23144-L0-00 Seal, Dust |
4SS-23144-L0-00 |
from US $18.14 |
||
| replacement | |||||
|
29
|
29
5HD-23144-L0-00 Seal, Dust |
5HD-23144-L0-00 |
from US $20.25 |
||
|
30
|
30
5DH-23170-L0-00
Cylinder Comp., Front Fork
|
5DH-23170-L0-00 |
— | ||
|
31
|
31
5BF-2316A-L0-00
Valve Comp
|
5BF-2316A-L0-00 |
— | ||
|
32
|
32
5DH-23111-L0-00 Bolt, Cap |
5DH-23111-L0-00 |
from US $154.90 |
||
|
33
|
33
5DH-23142-L0-00 Seat, Spring Upper |
5DH-23142-L0-00 |
from US $26.07 |
||
|
34
|
34
5DH-23393-L0-00 Nut, Special |
5DH-23393-L0-00 |
US $15.16 |
||
|
35
|
35
5DH-23195-L0-00 Rubber |
5DH-23195-L0-00 |
from US $22.39 |
||
|
36
|
36
5DH-23149-L0-00 Washer, Spring Upper |
5DH-23149-L0-00 |
from US $12.04 |
||
|
37
|
37
5DH-23118-L0-00 Spacer |
5DH-23118-L0-00 |
US $29.63 |
||
|
38
|
38
4SS-23158-L0-00 Gasket |
4SS-23158-L0-00 |
from US $5.10 |
||
|
39
|
39
5BE-23141-L0-00 Spring (K=4.41N/mm) |
5BE-23141-L0-00 |
from US $78.88 |
||
|
40
|
40
3JD-2312G-L0-00 Plug |
3JD-2312G-L0-00 |
from US $6.51 |
||
|
41
|
41
5BF-23340-L0-00
Under Bracket Comp
|
5BF-23340-L0-00 |
— | ||
| replacement | |||||
|
41
|
41
5GS-23340-60-00
Under Bracket Comp
|
5GS-23340-60-00 |
— | ||
|
42
|
42
95021-08040-00 Bolt, Flange (Small Head) |
95021-08040-00 |
from US $1.42 |
||
| replacement | |||||
|
42
|
42
95024-08040-00 Bolt, Flange |
95024-08040-00 |
from US $1.52 |
||
|
43
|
43
4SS-2314G-L0-00 Protecter Guide Comp., 2 |
4SS-2314G-L0-00 |
from US $37.45 |
||
|
44
|
44
5DH-2314F-L0-00 Protecter Guide Comp., 1 |
5DH-2314F-L0-00 |
from US $37.45 |
||
|
45
|
45
4SS-23346-L0-00 Bolt 1 |
4SS-23346-L0-00 |
from US $3.12 |
||
|
46
|
46
5BF-2314J-00-00
Protecter Comp., 2
|
5BF-2314J-00-00 |
— | ||
|
47
|
47
5DH-2314H-00-00 Protecter Comp., 1 |
5DH-2314H-00-00 |
from US $32.87 |
||
|
48
|
48
3SP-23356-L0-00 Bolt 2 |
3SP-23356-L0-00 |
from US $2.91 |
||
|
49
|
49
4EW-2331E-L0-00 Guide, Cable |
4EW-2331E-L0-00 |
from US $18.47 |
||
| replacement | |||||
|
49
|
49
4EW-2331E-L1-00 Guide, Cable |
4EW-2331E-L1-00 |
from US $27.77 |
||
