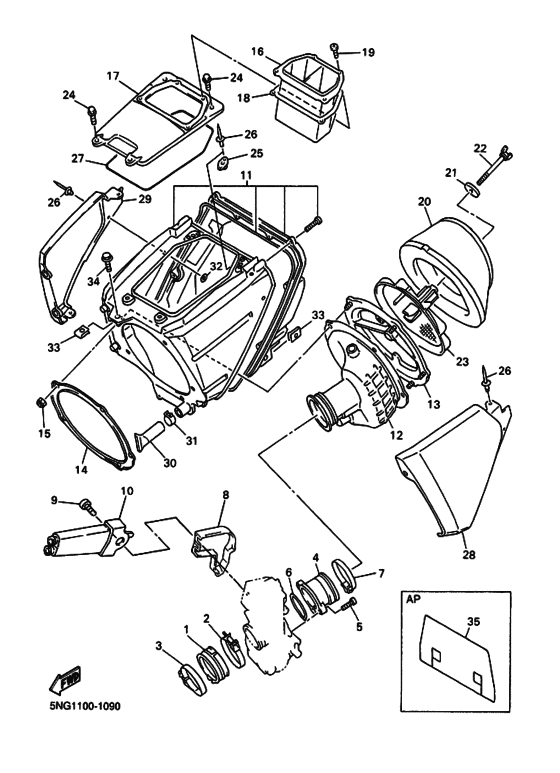

Intake Diagram Yamaha WR426F
- Year
- 2001
- Colour
- Deep Purplish Blue Solid E (DPBSE; 0583)
- Model code
- 5NG2
- Sales region
- Europe (060)
- Engine Capacity
- 426
- Color Variant
- A
- Model
- WR426F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5JG-13597-00-00 Joint, Carburetor 3 |
5JG-13597-00-00 |
from US $22.24 |
||
| replacement | |||||
|
1
|
1
5SF-13597-00-00 Joint, Carburetor 3 |
5SF-13597-00-00 |
from US $22.24 |
||
|
2
|
2
90450-57092-00 Hose Clamp Assy |
90450-57092-00 |
from US $8.78 |
||
| replacement | |||||
|
2
|
2
90450-57010-00 Hose Clamp Assy |
90450-57010-00 |
from US $8.78 |
||
|
3
|
3
90450-59091-00 Hose Clamp Assy |
90450-59091-00 |
from US $8.22 |
||
| replacements | |||||
|
3
|
3
90450-59009-00 Hose Clamp Assy |
90450-59009-00 |
from US $8.22 |
||
|
3
|
3
90450-62006-00 Hose Clamp Assy |
90450-62006-00 |
from US $8.22 |
||
|
4
|
4
5JG-1440F-01-00
Joint, Air Filter 1
|
5JG-1440F-01-00 |
— | ||
|
5
|
5
91317-05014-00 Bolt |
91317-05014-00 |
from US $1.07 |
||
|
6
|
6
4FN-14561-00-00 O-Ring |
4FN-14561-00-00 |
from US $12.89 |
||
|
7
|
7
90450-61001-00 Hose Clamp Assy |
90450-61001-00 |
from US $11.05 |
||
| replacement | |||||
|
7
|
7
90450-61002-00 Hose Clamp Assy |
90450-61002-00 |
from US $11.05 |
||
|
8
|
8
5JG-14293-01-00 Cover 1 |
5JG-14293-01-00 |
from US $51.53 |
||
|
9
|
9
5JG-14428-00-00 Bolt |
5JG-14428-00-00 |
US $19.39 |
||
|
10
|
10
5NG-14169-00-00 Cap |
5NG-14169-00-00 |
US $33.05 |
||
|
11
|
11
5JG-14401-00-00 Air Cleaner Case Assy |
5JG-14401-00-00 |
from US $190.75 |
||
|
12
|
12
5JG-14453-00-00 Joint, Air Cleaner 1 |
5JG-14453-00-00 |
US $132.79 |
||
|
13
|
13
3JD-14459-01-00 Holder, Guide |
3JD-14459-01-00 |
US $55.15 |
||
|
14
|
14
5MV-14477-00-00
Plate
|
5MV-14477-00-00 |
— | ||
|
15
|
15
95607-05100-00 Nut, U |
95607-05100-00 |
from US $2.22 |
||
| replacement | |||||
|
15
|
15
95617-05100-00 Nut, U |
95617-05100-00 |
from US $2.22 |
||
|
16
|
16
5BF-14437-00-00 Duct |
5BF-14437-00-00 |
US $42.55 |
||
|
17
|
17
5BF-1441A-10-00 Cover, Cleaner Case 1 |
5BF-1441A-10-00 |
US $10.37 |
||
|
18
|
18
5BF-14452-00-00 Seal |
5BF-14452-00-00 |
from US $4.25 |
||
|
19
|
19
97707-50012-00 Screw, Truss Head Tapping |
97707-50012-00 |
from US $1.28 |
||
|
20
|
20
4XM-14451-00-00
Element, Air Cleaner
|
4XM-14451-00-00 |
— | ||
| replacement | |||||
|
20
|
20
4XM-14451-01-00 ELEMENT, AIR CLEANER |
4XM-14451-01-00 |
from US $45.51 |
||
|
21
|
21
90209-06096-00 Washer |
90209-06096-00 |
from US $1.84 |
||
|
22
|
22
90122-06035-00 Bolt, Wing |
90122-06035-00 |
from US $6.52 |
||
| replacement | |||||
|
22
|
22
90122-06005-00 Bolt, Wing |
90122-06005-00 |
from US $6.52 |
||
|
23
|
23
5BE-14458-00-00 Guide |
5BE-14458-00-00 |
from US $27.49 |
||
| replacement | |||||
|
23
|
23
5BE-14458-10-00 Guide |
5BE-14458-10-00 |
from US $27.49 |
||
|
24
|
24
90146-06014-00 Screw, Oval Fillister |
90146-06014-00 |
from US $2.04 |
||
| replacement | |||||
|
24
|
24
98907-06016-00 Screw, Bind |
98907-06016-00 |
from US $1.66 |
||
|
25
|
25
5BF-14493-00-00 Stay 1 |
5BF-14493-00-00 |
from US $1.66 |
||
|
26
|
26
90267-32070-00 Rivet, Blind |
90267-32070-00 |
from US $2.13 |
||
|
27
|
27
5BF-14457-00-00 Seal |
5BF-14457-00-00 |
from US $8.93 |
||
| replacement | |||||
|
27
|
27
51Y-14462-00-00 Seal |
51Y-14462-00-00 |
from US $10.54 |
||
|
28
|
28
5BE-1441A-10-00 Cover, Cleaner Case 1 |
5BE-1441A-10-00 |
US $13.99 |
||
|
29
|
29
5BE-1441E-10-00
Cover, Cleaner Case 2
|
5BE-1441E-10-00 |
— | ||
|
30
|
30
5BF-1443E-00-00 Pipe, Drain |
5BF-1443E-00-00 |
from US $2.02 |
||
|
31
|
31
90467-17089-00 Clip |
90467-17089-00 |
from US $1.42 |
||
| replacement | |||||
|
31
|
31
90467-17128-00 Clip |
90467-17128-00 |
from US $1.28 |
||
|
32
|
32
90201-03313-00 Washer, Plate |
90201-03313-00 |
from US $1.84 |
||
|
33
|
33
90183-06023-00 Nut, Spring |
90183-06023-00 |
from US $3.68 |
||
|
34
|
34
950-27060-12-00 Bolt, Flange |
950-27060-12-00 |
from US $1.28 |
||
|
35
|
35
5JG-14417-00-00
Cover 1
AP |
5JG-14417-00-00 |
— | ||
