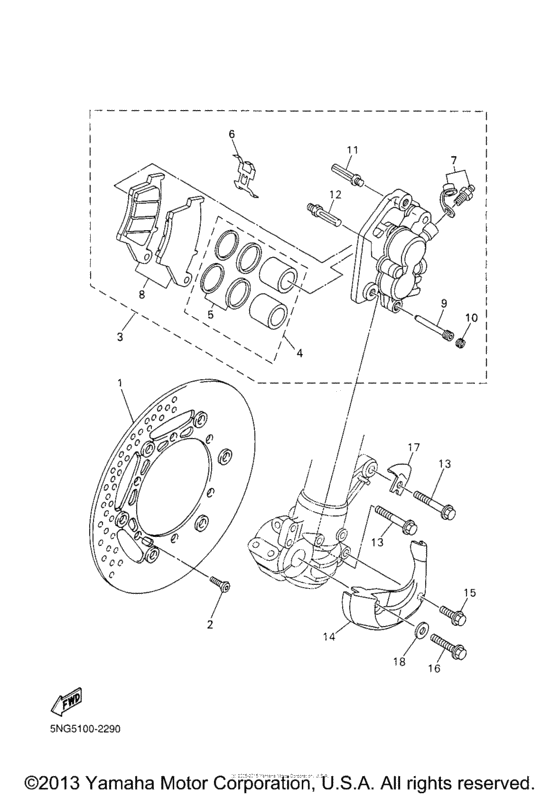

Front brake caliper Diagram Yamaha WR426F
- Year
- 2002
- Sales region
- USA
- Engine Capacity
- 426
- Model
- WR426F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5MV-2581T-00-00 Disc Brake Assy |
5MV-2581T-00-00 |
from US $244.60 |
||
|
2
|
2
90149-06327-00 Screw, Countersunk |
90149-06327-00 |
from US $1.52 |
||
| replacement | |||||
|
2
|
2
901-51060-80-00 Screw, Countersunk |
901-51060-80-00 |
from US $1.52 |
||
|
3
|
3
5MV-2580T-10-00 Caliper Assy (Left) |
5MV-2580T-10-00 |
from US $285.41 |
||
| replacement | |||||
|
3
|
3
5MV-2580T-11-00 Caliper Assy (Left) |
5MV-2580T-11-00 |
from US $285.41 |
||
|
4
|
4
4EW-W0057-00-00 Piston Assy, Caliper |
4EW-W0057-00-00 |
from US $55.40 |
||
|
5
|
5
3JD-W0047-00-00 Caliper Seal Kit |
3JD-W0047-00-00 |
from US $22.57 |
||
| replacement | |||||
|
5
|
5
3JD-25803-00-00 Caliper Seal Kit |
3JD-25803-00-00 |
from US $22.68 |
||
|
6
|
6
5DH-25919-00-00 Support, Pad |
5DH-25919-00-00 |
from US $19.98 |
||
|
7
|
7
1UY-W0048-50-00
Bleed Screw Kit
|
1UY-W0048-50-00 |
— | ||
| replacement | |||||
|
7
|
7
36Y-W0048-00-00 Bleed Screw Kit |
36Y-W0048-00-00 |
from US $10.37 |
||
|
8
|
8
5MV-W0045-00-00 Brake Pad Kit |
5MV-W0045-00-00 |
from US $42.50 |
||
| replacement | |||||
|
8
|
8
5MV-W0045-01-00 Brake Pad Kit |
5MV-W0045-01-00 |
from US $48.56 |
||
|
9
|
9
5DH-25933-00-00 Pin, Pad |
5DH-25933-00-00 |
from US $13.45 |
||
|
10
|
10
5DH-25916-00-00 Plug |
5DH-25916-00-00 |
from US $3.54 |
||
|
11
|
11
3SP-25926-51-00 Bolt |
3SP-25926-51-00 |
from US $11.76 |
||
|
12
|
12
3SP-25914-51-00 Pin, Slide |
3SP-25914-51-00 |
from US $5.68 |
||
|
13
|
13
90105-08659-00 Bolt, Flange |
90105-08659-00 |
from US $1.07 |
||
| replacement | |||||
|
13
|
13
95817-08035-00 Bolt, Flange |
95817-08035-00 |
from US $1.18 |
||
|
14
|
14
5DH-2314E-00-00 Cover, Hose |
5DH-2314E-00-00 |
from US $43.45 |
||
|
15
|
15
958-27060-12-00
Bolt, Flange
|
958-27060-12-00 |
— | ||
| replacement | |||||
|
15
|
15
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.39 |
||
|
16
|
16
95027-08020-00 Bolt, Flange |
95027-08020-00 |
from US $1.39 |
||
| replacement | |||||
|
16
|
16
90105-081A1-00 Bolt, Washer Based(3Jp) |
90105-081A1-00 |
from US $2.77 |
||
|
17
|
17
5DH-25875-00-00
Holder, Brake Hose 1
|
5DH-25875-00-00 |
— | ||
|
18
|
18
92907-08200-00 Washer |
92907-08200-00 |
from US $1.36 |
||
