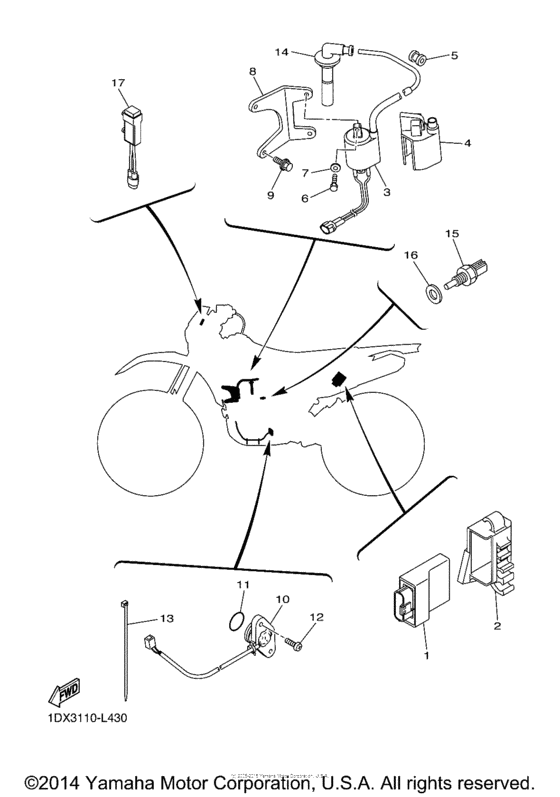

Electrical (1) Diagram Yamaha WR450F
- Year
- 2015
- Colour
- Deep Purplish Blue Solid E
- Sales region
- USA (010)
- Базовая модель
- WR450FF
- Engine Capacity
- 450
- Color Variant
- A
- Model
- WR450F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1DX-8591A-20-00
Engine Control Unit Assy
|
1DX-8591A-20-00 |
— | ||
|
2
|
2
1DX-85546-00-00 Band |
1DX-85546-00-00 |
from US $12.61 |
||
|
3
|
3
1DX-82310-00-00 Ignition Coil Assy |
1DX-82310-00-00 |
from US $110 |
||
| replacement | |||||
|
3
|
3
1DX-82310-01-00 Rotor Assy |
1DX-82310-01-00 |
from US $102.76 |
||
|
4
|
4
1DX-82314-00-00 Cover, Ignition Coil |
1DX-82314-00-00 |
from US $7.51 |
||
|
5
|
5
904-80110-15-00 Grommet |
904-80110-15-00 |
from US $2.84 |
||
|
6
|
6
97002-05020-00 Bolt |
97002-05020-00 |
US $1.42 |
||
| replacements | |||||
|
6
|
6
90101-05396-00 Bolt (2E9) |
90101-05396-00 |
from US $1.70 |
||
|
6
|
6
970-27050-20-00
Bolt
|
970-27050-20-00 |
— | ||
|
7
|
7
92902-05600-00 Washer, Plate |
92902-05600-00 |
US $1.07 |
||
| replacements | |||||
|
7
|
7
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
7
|
7
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
|
8
|
8
1DX-82316-00-00 Bracket, Ignition Coil |
1DX-82316-00-00 |
from US $56.09 |
||
|
9
|
9
901-19062-65-00 Bolt, With Washer |
901-19062-65-00 |
from US $1.42 |
||
|
10
|
10
1DX-82540-00-00 Neutral Switch Assy |
1DX-82540-00-00 |
from US $41.72 |
||
|
11
|
11
93210-21001-00 O-Ring |
93210-21001-00 |
from US $1.94 |
||
|
12
|
12
90154-05022-00 Screw, Bind |
90154-05022-00 |
from US $1.26 |
||
| replacement | |||||
|
12
|
12
98902-05014-00 Screw, Bind |
98902-05014-00 |
from US $1.56 |
||
|
13
|
13
5Y9-12491-00-00 Clamp 1 |
5Y9-12491-00-00 |
from US $1.81 |
||
|
14
|
14
18P-82370-00-00 Plug Cap Assy |
18P-82370-00-00 |
from US $84.14 |
||
|
15
|
15
4P9-83591-00-00
Thermo Unit
|
4P9-83591-00-00 |
— | ||
| replacements | |||||
|
15
|
15
54P-H3591-00-00 Thermo Unit |
54P-H3591-00-00 |
US $22.20 |
||
|
15
|
15
52B-H3591-00-00 Thermo Unit |
52B-H3591-00-00 |
from US $20.12 |
||
|
16
|
16
90430-10004-00 Gasket |
90430-10004-00 |
from US $1.70 |
||
|
17
|
17
1DX-82718-00-00 Resistor Assy |
1DX-82718-00-00 |
from US $61.76 |
||
