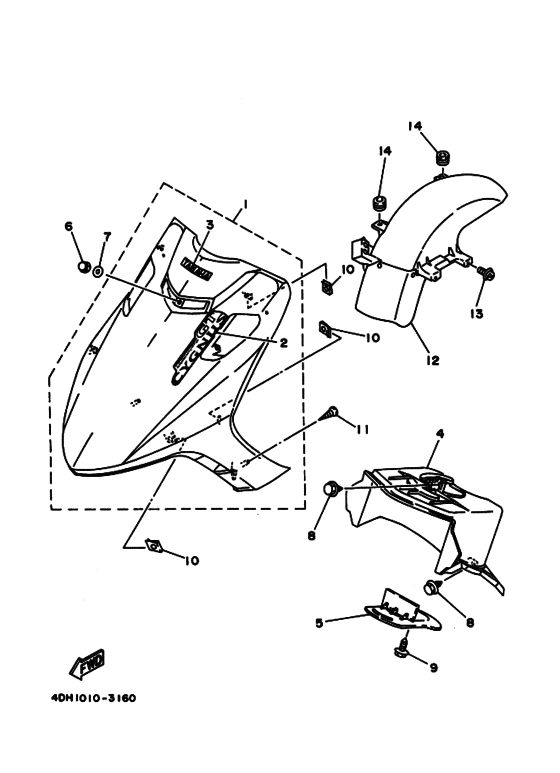

Fender Diagram Yamaha XC150 Cygnus
- Year
- 1992
- Colour
- Black 2 (BL2; 004B)
- Model code
- 4DH1
- Sales region
- Japan (010)
- Engine Capacity
- 150
- Color Variant
- A
- Model
- XC150
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3UH-X2151-20-4B
Fender, Front
フエンダ，フロント; ブラツク ２ |
3UH-X2151-20-4B |
— | ||
|
2
|
2
4DH-F1578-00-00
Emblem
．エンブレム; |
4DH-F1578-00-00 |
— | ||
|
3
|
3
99236-00020-00 Emblem, Yamaha (Silver)．エンブレム，ＹＡＭＡＨＡ ; シルバー |
99236-00020-00 |
from US $9.07 |
||
| replacement | |||||
|
3
|
3
992-46000-80-00 Emblem (YAMAHA)．エンブレム，ＹＡＭＡＨＡ ; シルバー |
992-46000-80-00 |
from US $9.15 |
||
|
4
|
4
3UH-F1552-01-00
Fender, Inner
フエンダ，インナ; |
3UH-F1552-01-00 |
— | ||
|
5
|
5
3UH-F1553-00-00
Fender, Inner 2
フエンダ，インナ ２; |
3UH-F1553-00-00 |
— | ||
|
6
|
6
95380-06800-00 Nut (J17) |
95380-06800-00 |
from US $1.18 |
||
|
7
|
7
90201-060H9-00 Washer, Plateワツシヤ，プレート; |
90201-060H9-00 |
from US $2.69 |
||
|
8
|
8
90119-06079-00 Bolt, With Washer |
90119-06079-00 |
from US $1.56 |
||
|
9
|
9
90119-06088-00 Bolt, With Washer (33A) |
90119-06088-00 |
from US $1.35 |
||
| replacement | |||||
|
9
|
9
90119-06226-00 Bolt, With Washer |
90119-06226-00 |
from US $1.52 |
||
|
10
|
10
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.52 |
||
|
11
|
11
97706-50016-00 Screw, Truss Head Tappingスクリユ，ラウンドタツピング; |
97706-50016-00 |
from US $1.42 |
||
| replacements | |||||
|
11
|
11
90167-05077-00 Screw, Tapping(4Tv)スクリユ，ラウンドタツピング; |
90167-05077-00 |
from US $2.08 |
||
|
11
|
11
977-07500-16-00
Screw, Tapping(4Mv)
スクリユ，ラウンドタツピング; |
977-07500-16-00 |
— | ||
|
12
|
12
4CB-F1610-00-00
Rear Fender Comp
リヤフエンダコンプリート; |
4CB-F1610-00-00 |
— | ||
|
13
|
13
90159-06813-00 Screw, With Washer |
90159-06813-00 |
from US $0.68 |
||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
14
|
14
90480-12053-00 Grommet |
90480-12053-00 |
from US $1.94 |
||
