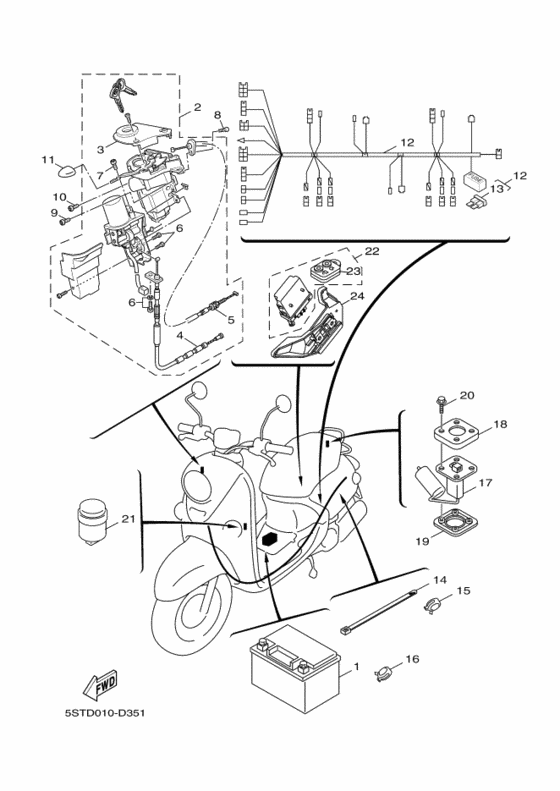

Electrical 2 Diagram Yamaha XC50 Vino
- Year
- 2005
- Colour
- Black Metallic X (SMX; 0903)
- Model code
- 5STD
- Sales region
- Japan (010)
- Engine Capacity
- 50
- Color Variant
- B
- Model
- Vino
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
90793-25026-00
Battery Assy (Gtx5L-Bs)
バツテリアセンブリ; ＧＴＸ５Ｌ−ＢＳ |
90793-25026-00 |
— | ||
|
2
|
2
5ST-82020-20-00 Key SetＡＰ ＊１ |
5ST-82020-20-00 |
US $675.84 |
||
|
2
|
2
5ST-H252E-20-00 Main Switch Comp |
5ST-H252E-20-00 |
US $469.22 |
||
|
3
|
3
5SU-F831B-00-00
Case, Unit 1
．ケース， ユニツト １; |
5SU-F831B-00-00 |
— | ||
|
4
|
4
5ST-F478E-10-00 Cable, Seat Lock．ケーブル，シートロツク; |
5ST-F478E-10-00 |
US $42 |
||
|
5
|
5
5ST-F637E-10-00 Cable, Control 1．ワイヤ，コントロール １; |
5ST-F637E-10-00 |
US $41.86 |
||
|
6
|
6
976-07041-12-00
Screw, Pan Head
．スクリユ，パンヘツドウイズワツシヤ; |
976-07041-12-00 |
— | ||
| replacement | |||||
|
6
|
6
98517-04012-00 Screw, Pan Head．スクリユ，パンヘツドウイズワツシヤ; |
98517-04012-00 |
from US $1.07 |
||
|
7
|
7
97707-04012-00 Screw, Tapping．スクリユ，タツピング; |
97707-04012-00 |
from US $0.09 |
||
|
8
|
8
91317-05008-00 Boltボルト; |
91317-05008-00 |
from US $1.56 |
||
|
9
|
9
90149-06813-00 Screw |
90149-06813-00 |
from US $0.11 |
||
|
10
|
10
90149-06814-00 Screw |
90149-06814-00 |
from US $0.11 |
||
|
11
|
11
5SU-F836X-00-00 Knob, 1 |
5SU-F836X-00-00 |
from US $2.04 |
||
|
12
|
12
5ST-H2590-40-00
Wire Harness Assy
ワイヤハーネスアセンブリ; |
5ST-H2590-40-00 |
— | ||
|
13
|
13
5ML-H2151-20-00 Fuse (7.5A)．．フユーズ ; ７５Ａ |
5ML-H2151-20-00 |
from US $1.56 |
||
|
14
|
14
90464-12812-00 Clamp |
90464-12812-00 |
from US $1.19 |
||
|
15
|
15
90464-20803-00 Clamp |
90464-20803-00 |
from US $1.24 |
||
|
16
|
16
90464-25801-00 Clamp |
90464-25801-00 |
from US $1.40 |
||
|
17
|
17
5ST-H5752-00-00 Sender Unit Assy, Fuel Meterセンダユニツトアセンブリ，フユエルメータ; |
5ST-H5752-00-00 |
from US $21.11 |
||
|
18
|
18
5SU-H5757-00-00 Retainerリテーナ; |
5SU-H5757-00-00 |
from US $2.66 |
||
|
19
|
19
4US-85753-00-00 Gasket, Sender Unit |
4US-85753-00-00 |
from US $3.40 |
||
|
20
|
20
901-19050-71-00 Bolt, With Washer |
901-19050-71-00 |
from US $1.84 |
||
|
21
|
21
5CA-H3350-10-00 Flasher Relay Assyフラツシヤリレーアセンブリ; |
5CA-H3350-10-00 |
from US $27 |
||
|
22
|
22
5SU-H6260-10-00 Remote Control Unit Assy |
5SU-H6260-10-00 |
US $258.16 |
||
|
23
|
23
5SU-H6261-10-00 Xmtr. Comp．トランスミツタコンプリート; |
5SU-H6261-10-00 |
US $89.35 |
||
|
24
|
24
5ST-H2588-00-00 Plateプレート; |
5ST-H2588-00-00 |
US $10.34 |
||
