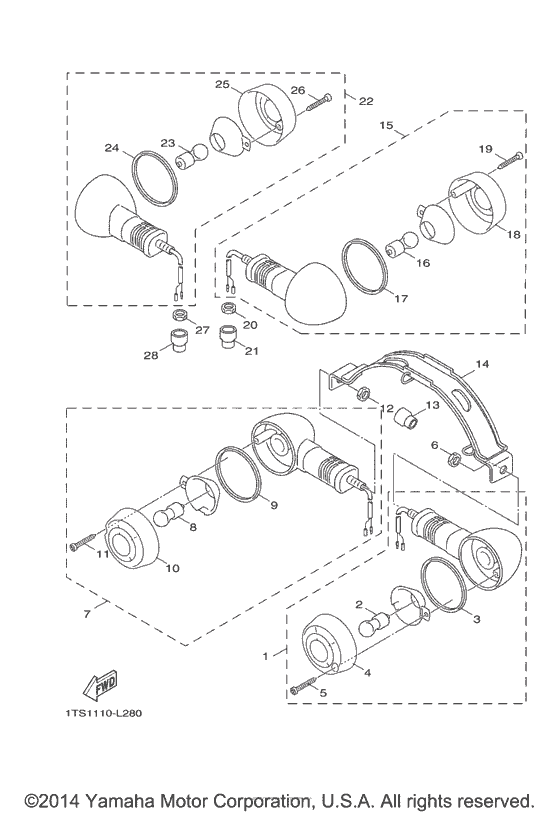

Flasher light Diagram Yamaha XC50 Vino Classic
- Year
- 2015
- Sales region
- USA
- Model
- Vino Classic
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3D1-H3310-10-00 Front Flasher Light Assy 1 |
3D1-H3310-10-00 |
US $33.73 |
||
|
2
|
2
3D1-H3311-00-00 Bulb, Flasher |
3D1-H3311-00-00 |
from US $4.43 |
||
|
3
|
3
3D1-H3313-00-00 Gasket, Flasher Lens |
3D1-H3313-00-00 |
US $2.65 |
||
|
4
|
4
3D1-H3322-00-00 Lens, Flasher 2 |
3D1-H3322-00-00 |
US $2.41 |
||
|
5
|
5
977-80046-40-00 Screw, Tapping |
977-80046-40-00 |
US $1.28 |
||
|
6
|
6
953-07126-00-00 Nut |
953-07126-00-00 |
from US $1.70 |
||
| replacement | |||||
|
6
|
6
95337-12600-00 Nut |
95337-12600-00 |
from US $1.70 |
||
|
7
|
7
3D1-H3320-10-00 Front Flasher Light Assy 2 |
3D1-H3320-10-00 |
US $33.73 |
||
|
8
|
8
3D1-H3311-00-00 Bulb, Flasher |
3D1-H3311-00-00 |
from US $4.43 |
||
|
9
|
9
3D1-H3313-00-00 Gasket, Flasher Lens |
3D1-H3313-00-00 |
US $2.65 |
||
|
10
|
10
3D1-H3312-00-00 Lens, Flasher |
3D1-H3312-00-00 |
US $2.41 |
||
|
11
|
11
977-80046-40-00 Screw, Tapping |
977-80046-40-00 |
US $1.28 |
||
|
12
|
12
953-07126-00-00 Nut |
953-07126-00-00 |
from US $1.70 |
||
| replacement | |||||
|
12
|
12
95337-12600-00 Nut |
95337-12600-00 |
from US $1.70 |
||
|
13
|
13
1TS-H3365-00-00 Cap |
1TS-H3365-00-00 |
US $1.76 |
||
|
14
|
14
3D1-H3318-00-00 Stay, Flasher 1 |
3D1-H3318-00-00 |
US $8.59 |
||
|
15
|
15
3D1-H3330-10-00 Rear Flasher Light Assy 1 |
3D1-H3330-10-00 |
US $36.38 |
||
|
16
|
16
3D1-H3311-00-00 Bulb, Flasher |
3D1-H3311-00-00 |
from US $4.43 |
||
|
17
|
17
3D1-H3313-00-00 Gasket, Flasher Lens |
3D1-H3313-00-00 |
US $2.65 |
||
|
18
|
18
3D1-H3312-00-00 Lens, Flasher |
3D1-H3312-00-00 |
US $2.41 |
||
|
19
|
19
977-80046-40-00 Screw, Tapping |
977-80046-40-00 |
US $1.28 |
||
|
20
|
20
953-07126-00-00 Nut |
953-07126-00-00 |
from US $1.70 |
||
| replacement | |||||
|
20
|
20
95337-12600-00 Nut |
95337-12600-00 |
from US $1.70 |
||
|
21
|
21
1TS-H3365-00-00 Cap |
1TS-H3365-00-00 |
US $1.76 |
||
|
22
|
22
3D1-H3340-10-00 Rear Flasher Light Assy 2 |
3D1-H3340-10-00 |
US $36.32 |
||
|
23
|
23
3D1-H3311-00-00 Bulb, Flasher |
3D1-H3311-00-00 |
from US $4.43 |
||
|
24
|
24
3D1-H3313-00-00 Gasket, Flasher Lens |
3D1-H3313-00-00 |
US $2.65 |
||
|
25
|
25
3D1-H3322-00-00 Lens, Flasher 2 |
3D1-H3322-00-00 |
US $2.41 |
||
|
26
|
26
977-80046-40-00 Screw, Tapping |
977-80046-40-00 |
US $1.28 |
||
|
27
|
27
953-07126-00-00 Nut |
953-07126-00-00 |
from US $1.70 |
||
| replacement | |||||
|
27
|
27
95337-12600-00 Nut |
95337-12600-00 |
from US $1.70 |
||
|
28
|
28
1TS-H3365-00-00 Cap |
1TS-H3365-00-00 |
US $1.76 |
||
