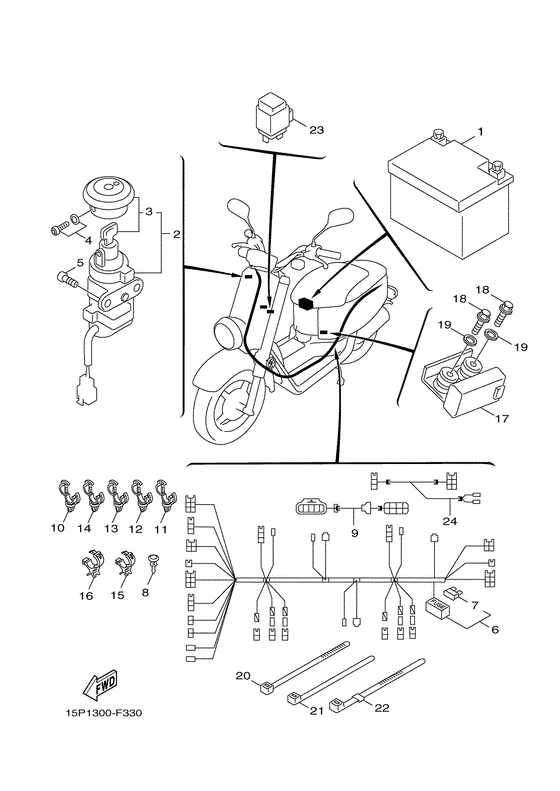

Electrical 2 Diagram Yamaha XF50 GIGGLE
- Year
- 2007
- Colour
- Black Metallic X (SMX; 0903)
- Model code
- 15P3
- Sales region
- England (010)
- Engine Capacity
- 50
- Model
- GIGGLE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5PJ-H2100-00-00
Gtx5Lbs & Gt5Lbs -Ba
|
5PJ-H2100-00-00 |
— | ||
| replacements | |||||
|
01
|
01
GTX-5LBS0-00-00
element
|
GTX-5LBS0-00-00 |
— | ||
|
01
|
01
YTX-5LBS0-00-00 Bat Ytx5L-Bs (Ptx5L-Bs) Yu |
YTX-5LBS0-00-00 |
US $99.32 |
||
|
02
|
02
3B3-H2501-00-00
Main Switch Steering Lock
|
3B3-H2501-00-00 |
— | ||
| replacement | |||||
|
02
|
02
3B3-H2501-01-00 Main Switch Steering Lock |
3B3-H2501-01-00 |
from US $90.54 |
||
|
03
|
03
3B3-WH250-00-00 Shutter & Blank Key |
3B3-WH250-00-00 |
from US $87.12 |
||
| replacements | |||||
|
03
|
03
3B3-WH250-01-00 Shutter & Blank Key |
3B3-WH250-01-00 |
from US $87.12 |
||
|
03
|
03
3B3-WH250-02-00 Shutter & Blank Key |
3B3-WH250-02-00 |
from US $92.84 |
||
|
04
|
04
97607-05212-00 Screw, With Washer |
97607-05212-00 |
from US $1.56 |
||
|
05
|
05
90149-06826-00 Screw |
90149-06826-00 |
from US $1.84 |
||
|
06
|
06
15P-H2590-00-00
Wire Harness Assy
|
15P-H2590-00-00 |
— | ||
|
07
|
07
5ML-H2151-10-00 Fuse (15A) |
5ML-H2151-10-00 |
from US $1.19 |
||
|
08
|
08
90269-07802-00 Rivet |
90269-07802-00 |
from US $1.40 |
||
|
09
|
09
3B3-H2509-00-00 Wire, Sub Lead |
3B3-H2509-00-00 |
from US $21.76 |
||
|
10
|
10
90464-20803-00 Clamp |
90464-20803-00 |
from US $1.24 |
||
|
11
|
11
90464-20803-00 Clamp |
90464-20803-00 |
from US $1.24 |
||
|
12
|
12
90464-20803-00 Clamp |
90464-20803-00 |
from US $1.24 |
||
|
13
|
13
90464-20803-00 Clamp |
90464-20803-00 |
from US $1.24 |
||
|
14
|
14
90464-20803-00 Clamp |
90464-20803-00 |
from US $1.24 |
||
|
15
|
15
90464-25801-00 Clamp |
90464-25801-00 |
from US $1.40 |
||
|
16
|
16
90464-30801-00 Clamp |
90464-30801-00 |
from US $2.92 |
||
|
17
|
17
5PS-82576-01-00
Sensor, Lean Angle
|
5PS-82576-01-00 |
— | ||
| replacement | |||||
|
17
|
17
5PS-82576-02-00 Sensor, Lean Angle |
5PS-82576-02-00 |
from US $93.26 |
||
|
18
|
18
91317-04025-00 Bolt |
91317-04025-00 |
from US $1.42 |
||
|
19
|
19
90201-047A2-00 Washer, Plate |
90201-047A2-00 |
from US $1.70 |
||
|
20
|
20
31U-H3936-00-00 Band, Switch Cord |
31U-H3936-00-00 |
from US $0.58 |
||
|
21
|
21
90465-13152-00 Band |
90465-13152-00 |
from US $1.28 |
||
| replacement | |||||
|
21
|
21
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.52 |
||
|
22
|
22
31U-H3936-10-00 Band, Switch Cord |
31U-H3936-10-00 |
from US $0.76 |
||
|
23
|
23
3B3-83350-00-00 Flasher Relay Assy |
3B3-83350-00-00 |
from US $31.03 |
||
|
24
|
24
15P-H471G-00-00
Wire, Lead
|
15P-H471G-00-00 |
— | ||
