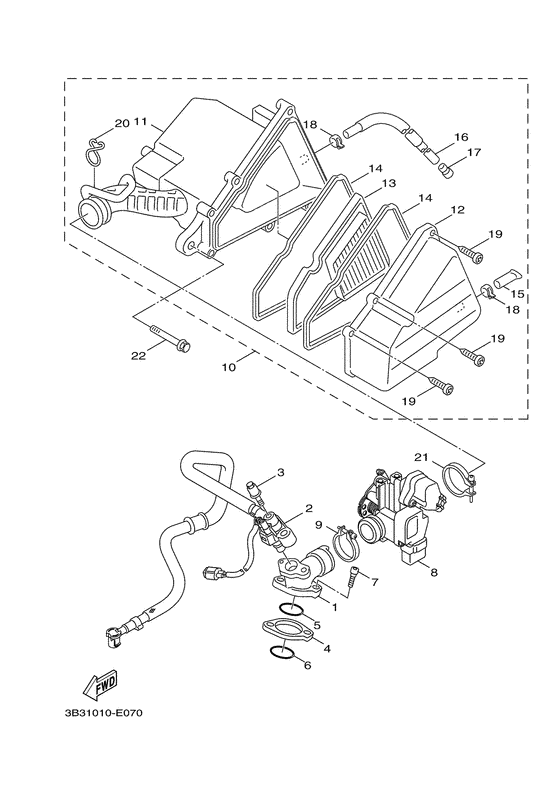

Intake Diagram Yamaha XF50 GIGGLE
- Year
- 2007
- Colour
- Black Metallic X (SMX; 0903)
- Model code
- 15P3
- Sales region
- England (010)
- Engine Capacity
- 50
- Model
- GIGGLE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3B3-E3585-01-00 Manifold |
3B3-E3585-01-00 |
from US $28.49 |
||
|
02
|
02
3B3-13930-00-00 Pipe Inlet Assembly |
3B3-13930-00-00 |
from US $470.58 |
||
|
03
|
03
90109-06834-00 Bolt |
90109-06834-00 |
from US $1.39 |
||
|
04
|
04
3B3-E3595-00-00 Joint |
3B3-E3595-00-00 |
from US $7.51 |
||
|
05
|
05
932-10228-03-00
O-Ring(Mf1)
|
932-10228-03-00 |
— | ||
| replacement | |||||
|
05
|
05
932-10223-A2-00 O-RING |
932-10223-A2-00 |
from US $1.80 |
||
|
06
|
06
932-10228-03-00
O-Ring(Mf1)
|
932-10228-03-00 |
— | ||
| replacement | |||||
|
06
|
06
932-10223-A2-00 O-RING |
932-10223-A2-00 |
from US $1.80 |
||
|
07
|
07
913-17060-25-00 Bolt |
913-17060-25-00 |
from US $1.39 |
||
|
08
|
08
3B3-E3750-01-00 Throttle Body Assy |
3B3-E3750-01-00 |
from US $343.73 |
||
|
09
|
09
3B3-E3575-00-00 Band |
3B3-E3575-00-00 |
from US $2.69 |
||
|
10
|
10
15P-E4410-00-00
Air Cleaner Assy
|
15P-E4410-00-00 |
— | ||
|
11
|
11
15P-WE441-00-00
Air Cleaner Case Comp
|
15P-WE441-00-00 |
— | ||
|
12
|
12
3B3-WE442-00-00 Cap, Cleaner Case 1 |
3B3-WE442-00-00 |
from US $15.64 |
||
| replacement | |||||
|
12
|
12
3B3-WE442-01-00 Element, Air Cleaner |
3B3-WE442-01-00 |
from US $16.34 |
||
|
13
|
13
3B3-E4451-00-00 Element, Air Cleaner |
3B3-E4451-00-00 |
from US $13.77 |
||
|
14
|
14
3B3-E4467-00-00 Seal |
3B3-E4467-00-00 |
from US $2.92 |
||
|
15
|
15
3B3-E443G-00-00 Pipe, Drain 2 |
3B3-E443G-00-00 |
from US $2.54 |
||
|
16
|
16
3B3-E443H-00-00 Pipe, Drain 3 |
3B3-E443H-00-00 |
from US $4.25 |
||
|
17
|
17
3B3-E4191-00-00 Plug, Drain |
3B3-E4191-00-00 |
from US $1.39 |
||
|
18
|
18
90467-12804-00 Clip |
90467-12804-00 |
from US $2.54 |
||
|
19
|
19
97707-50025-00 Screw, Tapping |
97707-50025-00 |
from US $1.52 |
||
| replacement | |||||
|
19
|
19
97702-50025-00 Screw, Tapping(2Jg) |
97702-50025-00 |
from US $1.52 |
||
|
20
|
20
90467-16829-00 Clip |
90467-16829-00 |
from US $2.69 |
||
|
21
|
21
3B3-E3474-00-00 Band |
3B3-E3474-00-00 |
from US $2.39 |
||
|
22
|
22
95807-06030-00 Bolt, Flange |
95807-06030-00 |
from US $1.07 |
||
| replacement | |||||
|
22
|
22
95817-06030-00 Bolt, Flange |
95817-06030-00 |
from US $1.07 |
||
