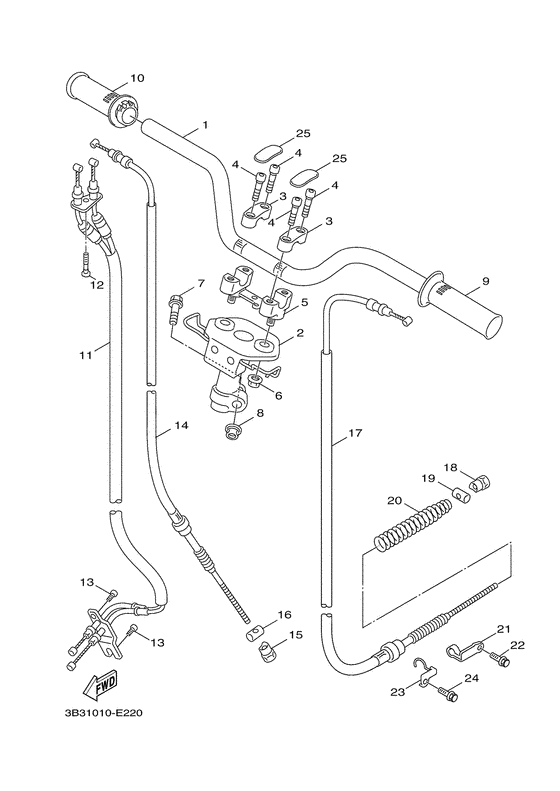

Steering handle & cable Diagram Yamaha XF50 GIGGLE
- Year
- 2007
- Colour
- Black Metallic X (SMX; 0903)
- Model code
- 15P3
- Sales region
- England (010)
- Engine Capacity
- 50
- Model
- GIGGLE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3B3-F6111-00-00 Handlebar |
3B3-F6111-00-00 |
from US $28.01 |
||
|
02
|
02
3B3-F3461-00-00 Bracket, Handle |
3B3-F3461-00-00 |
from US $18.72 |
||
|
03
|
03
1MH-F3441-01-P0 Holder, Handle Upper |
1MH-F3441-01-P0 |
US $6.37 |
||
|
04
|
04
913-17080-25-00 Bolt |
913-17080-25-00 |
from US $1.16 |
||
|
05
|
05
5FH-F3442-00-00 Holder, Handle Lower |
5FH-F3442-00-00 |
from US $20.02 |
||
|
06
|
06
90185-10801-00 Nut, Self-Locking |
90185-10801-00 |
from US $5.38 |
||
|
07
|
07
90105-10036-00 Bolt, Flange |
90105-10036-00 |
from US $4.25 |
||
|
08
|
08
90185-10801-00 Nut, Self-Locking |
90185-10801-00 |
from US $5.38 |
||
|
09
|
09
5SU-F6241-00-00 GripLlgs4 vos1 yb |
5SU-F6241-00-00 |
from US $2.86 |
||
|
10
|
10
5ST-F6240-00-00 Grip AssyLlgs4 vos1 yb |
5ST-F6240-00-00 |
from US $5.35 |
||
|
11
|
11
3B3-F6301-10-00 Throttle Cable Assy |
3B3-F6301-10-00 |
from US $45.11 |
||
| replacements | |||||
|
11
|
11
3B3-F6301-20-00 Throttle Cable Assy |
3B3-F6301-20-00 |
from US $61.62 |
||
|
11
|
11
3B3-F6301-42-00 Throttle Cable Assy |
3B3-F6301-42-00 |
from US $63.18 |
||
|
12
|
12
985-07050-10-00
Screw, Pan Head
|
985-07050-10-00 |
— | ||
| replacement | |||||
|
12
|
12
985-17050-10-00 Screw, Pan Head |
985-17050-10-00 |
from US $1.36 |
||
|
13
|
13
92012-05010-00 Bolt, Button Head |
92012-05010-00 |
from US $1.66 |
||
|
14
|
14
15P-F6341-00-00 Cable,brake |
15P-F6341-00-00 |
from US $19.39 |
||
| replacement | |||||
|
14
|
14
15P-F6341-10-00 Wire, Brake 1 |
15P-F6341-10-00 |
from US $20.66 |
||
|
15
|
15
90179-06411-00 Nut |
90179-06411-00 |
from US $1.52 |
||
|
16
|
16
90249-12806-00 Pin |
90249-12806-00 |
from US $1.31 |
||
|
17
|
17
15P-F6351-00-00 Cable, Brake |
15P-F6351-00-00 |
from US $23.17 |
||
|
18
|
18
90179-06411-00 Nut |
90179-06411-00 |
from US $1.52 |
||
|
19
|
19
90249-12806-00 Pin |
90249-12806-00 |
from US $1.31 |
||
|
20
|
20
90501-16804-00 Spring, Compression |
90501-16804-00 |
from US $1.39 |
||
|
21
|
21
3B3-F639F-00-00 Holder 2 |
3B3-F639F-00-00 |
from US $4.21 |
||
|
22
|
22
95807-06016-00 Bolt, Flange |
95807-06016-00 |
US $1.18 |
||
| replacement | |||||
|
22
|
22
958-17060-16-00 Bolt, Flange |
958-17060-16-00 |
from US $1.18 |
||
|
23
|
23
3B3-F637G-01-00 Holder, Wire |
3B3-F637G-01-00 |
from US $2.77 |
||
|
24
|
24
95807-06016-00 Bolt, Flange |
95807-06016-00 |
US $1.18 |
||
| replacement | |||||
|
24
|
24
958-17060-16-00 Bolt, Flange |
958-17060-16-00 |
from US $1.18 |
||
|
25
|
25
1MH-F3469-00-00 Cap, Bolt |
1MH-F3469-00-00 |
from US $3.04 |
||
