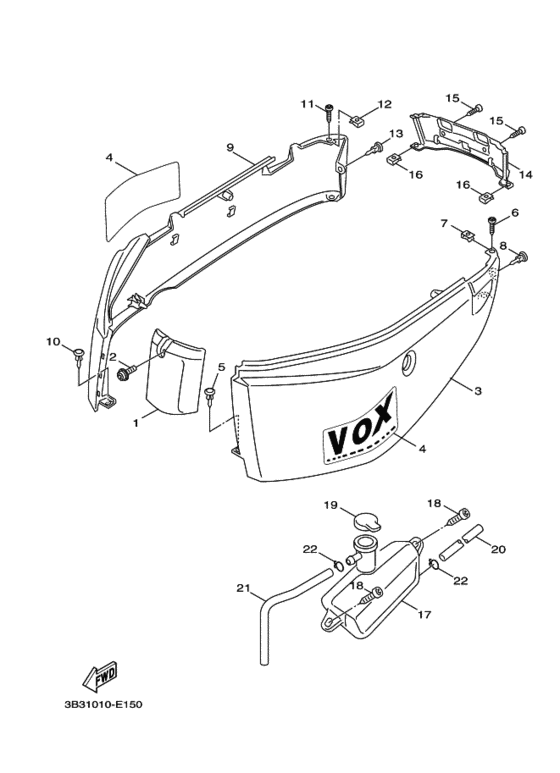

Side cover Diagram Yamaha XF50 VOX
- Year
- 2006
- Colour
- Greenish White Metallic 1 (GWM1; 1017)
- Model code
- 3B31
- Sales region
- Japan (010)
- Engine Capacity
- 50
- Color Variant
- A
- Model
- VOX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3B3-F1711-00-00 Cover, Side 1カバー，サイド １; 参照; 〜108890 |
3B3-F1711-00-00 |
from US $5.99 |
||
| replacement | |||||
|
1
|
1
3B3-F1711-01-00 Cover, Side 1カバー，サイド １; 参照; 〜108890 |
3B3-F1711-01-00 |
from US $7.51 |
||
|
1
|
1
3B3-F1711-01-00 Cover, Side 1カバー，サイド １; 参照; 108891〜 |
3B3-F1711-01-00 |
from US $7.51 |
||
|
2
|
2
90159-06812-00 Screw, With Washerスクリユ，ウイズワツシヤ; |
90159-06812-00 |
from US $3.47 |
||
|
3
|
3
3B3-F1721-00-P0 Cover, Side 2カバー，サイド ２; ＵＲ ＧＷＭ１，ＷＯＧ |
3B3-F1721-00-P0 |
US $73.92 |
||
|
4
|
4
3B3-F1781-00-00 Emblem 1ＵＲ |
3B3-F1781-00-00 |
US $8.93 |
||
|
5
|
5
90269-06803-00 Rivet |
90269-06803-00 |
from US $1.66 |
||
|
6
|
6
977-07500-16-00
Screw, Tapping(4Mv)
スクリユ，トラスヘツドタツピング; |
977-07500-16-00 |
— | ||
| replacement | |||||
|
6
|
6
90167-05077-00 Screw, Tapping(4Tv)スクリユ，トラスヘツドタツピング; |
90167-05077-00 |
from US $2.08 |
||
|
7
|
7
901-83058-07-00
Nut, Spring
|
901-83058-07-00 |
— | ||
| replacement | |||||
|
7
|
7
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.52 |
||
|
8
|
8
90269-07802-00 Rivet |
90269-07802-00 |
from US $1.40 |
||
|
9
|
9
3B3-F1731-00-P0 Cover, Side 3カバー，サイド ３; ＵＲ ＧＷＭ１，ＷＯＧ |
3B3-F1731-00-P0 |
US $77.42 |
||
|
10
|
10
90269-06803-00 Rivet |
90269-06803-00 |
from US $1.66 |
||
|
11
|
11
977-07500-16-00
Screw, Tapping(4Mv)
スクリユ，トラスヘツドタツピング; |
977-07500-16-00 |
— | ||
| replacement | |||||
|
11
|
11
90167-05077-00 Screw, Tapping(4Tv)スクリユ，トラスヘツドタツピング; |
90167-05077-00 |
from US $2.08 |
||
|
12
|
12
901-83058-07-00
Nut, Spring
|
901-83058-07-00 |
— | ||
| replacement | |||||
|
12
|
12
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.52 |
||
|
13
|
13
90269-07802-00 Rivet |
90269-07802-00 |
from US $1.40 |
||
|
14
|
14
3B3-F1741-00-P0 Cover, Side 4カバー，サイド ４; ＵＲ ＧＷＭ１ |
3B3-F1741-00-P0 |
US $20.94 |
||
|
15
|
15
977-07500-16-00
Screw, Tapping(4Mv)
スクリユ，トラスヘツドタツピング; |
977-07500-16-00 |
— | ||
| replacement | |||||
|
15
|
15
90167-05077-00 Screw, Tapping(4Tv)スクリユ，トラスヘツドタツピング; |
90167-05077-00 |
from US $2.08 |
||
|
16
|
16
901-83058-07-00
Nut, Spring
|
901-83058-07-00 |
— | ||
| replacement | |||||
|
16
|
16
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.52 |
||
|
17
|
17
3B3-F1871-00-00 Tank, Recovery |
3B3-F1871-00-00 |
from US $10.73 |
||
|
18
|
18
977-07500-16-00
Screw, Tapping(4Mv)
スクリユ，トラスヘツドタツピング; |
977-07500-16-00 |
— | ||
| replacement | |||||
|
18
|
18
90167-05077-00 Screw, Tapping(4Tv)スクリユ，トラスヘツドタツピング; |
90167-05077-00 |
from US $2.08 |
||
|
19
|
19
5CA-F1815-00-00 Cap |
5CA-F1815-00-00 |
from US $2.74 |
||
|
20
|
20
90445-09821-00 Hoseホース; |
90445-09821-00 |
US $11.05 |
||
|
21
|
21
5ST-F1877-00-00 Pipe, Overflowパイプ，オーバフロー; |
5ST-F1877-00-00 |
from US $2.59 |
||
|
22
|
22
904-67090-A2-00 Clip |
904-67090-A2-00 |
from US $1.66 |
||
