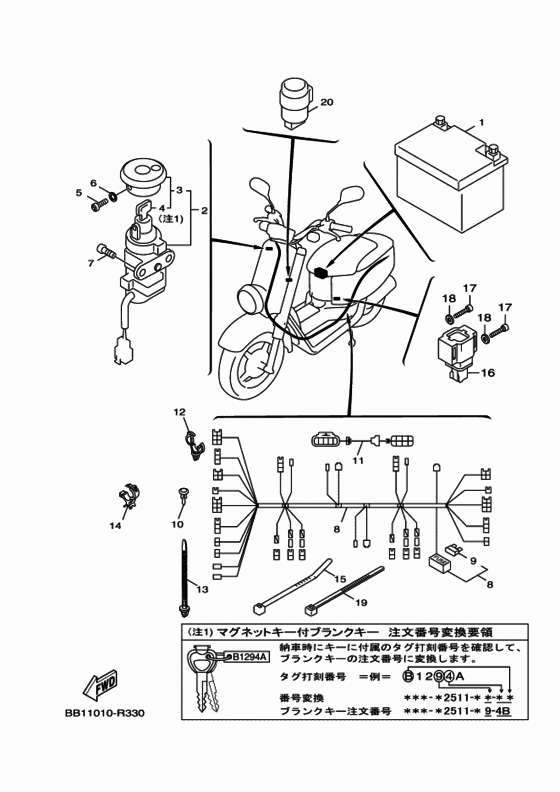

Electrical 2 Diagram Yamaha XF50 VOX Deluxe
- Year
- 2016
- Colour
- Black Metallic X
- Model code
- BB11
- Sales region
- Japan (010)
- Engine Capacity
- 50
- Color Variant
- A
- Model
- VOX Deluxe
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5DA-H2100-20-00
Battery Assy (Yuasa Ytx5L)
|
5DA-H2100-20-00 |
— | ||
|
2
|
2
3B3-H2501-21-00 Main Switch Steering Lock |
3B3-H2501-21-00 |
US $262.50 |
||
|
2
|
2
3B3-WH203-32-00 Key SetAP(*1) |
3B3-WH203-32-00 |
US $323.29 |
||
|
3
|
3
3B3-WH250-02-00 Shutter & Blank Key |
3B3-WH250-02-00 |
from US $92.84 |
||
|
5
|
5
985-07050-12-00
Screw, Pan Head
|
985-07050-12-00 |
— | ||
| replacement | |||||
|
5
|
5
98517-05012-00 Screw, Pan Head |
98517-05012-00 |
from US $1.21 |
||
|
6
|
6
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
|
7
|
7
90149-06826-00 Screw |
90149-06826-00 |
from US $1.84 |
||
|
8
|
8
BB1-H2590-00-00 Wire Harness Assy |
BB1-H2590-00-00 |
US $541.20 |
||
|
9
|
9
5ML-H2151-10-00 Fuse (15A) |
5ML-H2151-10-00 |
from US $1.19 |
||
|
10
|
10
90269-07802-00 Rivet |
90269-07802-00 |
from US $1.40 |
||
|
11
|
11
10B-H1517-00-00 Wire, Sub Lead |
10B-H1517-00-00 |
US $39.79 |
||
|
12
|
12
90464-20803-00 Clamp |
90464-20803-00 |
from US $1.24 |
||
|
13
|
13
28S-H2594-00-00 Clamp |
28S-H2594-00-00 |
US $4.96 |
||
|
14
|
14
90464-30801-00 Clamp |
90464-30801-00 |
from US $2.92 |
||
|
15
|
15
90464-40801-00 Clamp |
90464-40801-00 |
from US $1.98 |
||
|
16
|
16
1PA-H2576-00-00 Sensor, Lean Angle |
1PA-H2576-00-00 |
from US $24.09 |
||
|
17
|
17
913-17040-16-00 Bolt |
913-17040-16-00 |
from US $1.56 |
||
|
18
|
18
90201-047A2-00 Washer, Plate |
90201-047A2-00 |
from US $1.70 |
||
|
19
|
19
31U-H3936-00-00 Band, Switch Cord |
31U-H3936-00-00 |
from US $0.58 |
||
|
20
|
20
5GD-83350-00-00 Flasher Relay Assy |
5GD-83350-00-00 |
US $42.42 |
||
