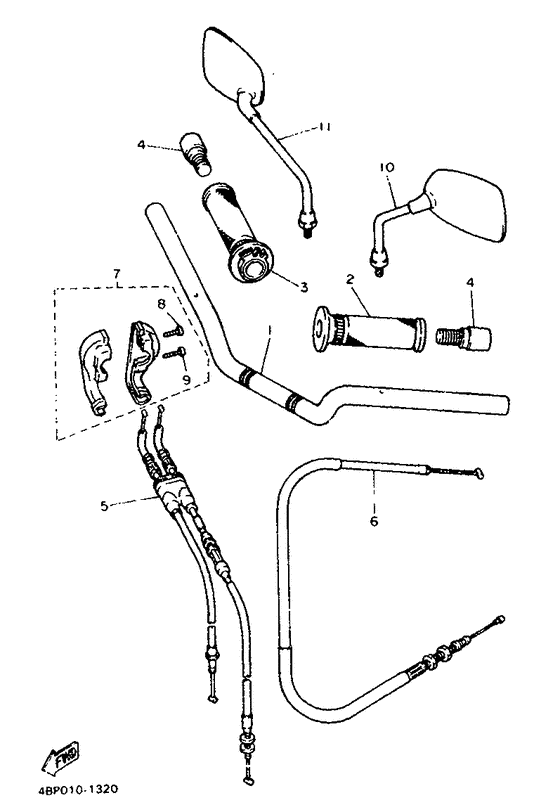

Steering handle & cable Diagram Yamaha XJ600 Diversion (S-TYPE)
- Year
- 1992
- Colour
- Vivid Red Cocktail 1 (VRC1; 0121)
- Model code
- 4DS1
- Sales region
- Germany (999)
- Engine Capacity
- 600
- Model
- XJ600S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4BP-26111-00-00 Handlebar |
4BP-26111-00-00 |
from US $100.01 |
||
| replacement | |||||
|
01
|
01
4BP-26111-01-00 Handlebar |
4BP-26111-01-00 |
from US $103.27 |
||
|
02
|
02
31A-26241-00-00 Grip |
31A-26241-00-00 |
from US $10.10 |
||
|
03
|
03
36Y-26240-00-00 Grip Assembly |
36Y-26240-00-00 |
from US $24.83 |
||
|
04
|
04
51J-26246-00-00 End, Grip |
51J-26246-00-00 |
from US $23.80 |
||
| replacement | |||||
|
04
|
04
51J-26246-01-00 End, Grip |
51J-26246-01-00 |
from US $26.22 |
||
|
05
|
05
4BP-26302-00-00 Throttle Cable Assy |
4BP-26302-00-00 |
US $167.17 |
||
|
06
|
06
4BP-26335-00-00 Cable, clutch |
4BP-26335-00-00 |
from US $34 |
||
|
07
|
07
4BP-26270-00-00 Cable Connector Cap Assembly |
4BP-26270-00-00 |
US $142.92 |
||
|
08
|
08
98506-05020-00 Screw, Pan Head |
98506-05020-00 |
from US $1.84 |
||
| replacement | |||||
|
08
|
08
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.70 |
||
|
09
|
09
98506-05025-00 Screw, Pan Head |
98506-05025-00 |
from US $1.42 |
||
| replacements | |||||
|
09
|
09
98507-05025-00 Screw, Pan Head(4My) |
98507-05025-00 |
from US $1.52 |
||
|
09
|
09
985-80055-25-00 Screw, Pan Head |
985-80055-25-00 |
from US $1.33 |
||
|
10
|
10
4BR-26280-00-00 Rear View Mirror Assembly (Left |
4BR-26280-00-00 |
from US $77.65 |
||
|
11
|
11
4BR-26290-00-00 Rear View Mirror Assembly (Righ |
4BR-26290-00-00 |
from US $77.65 |
||
