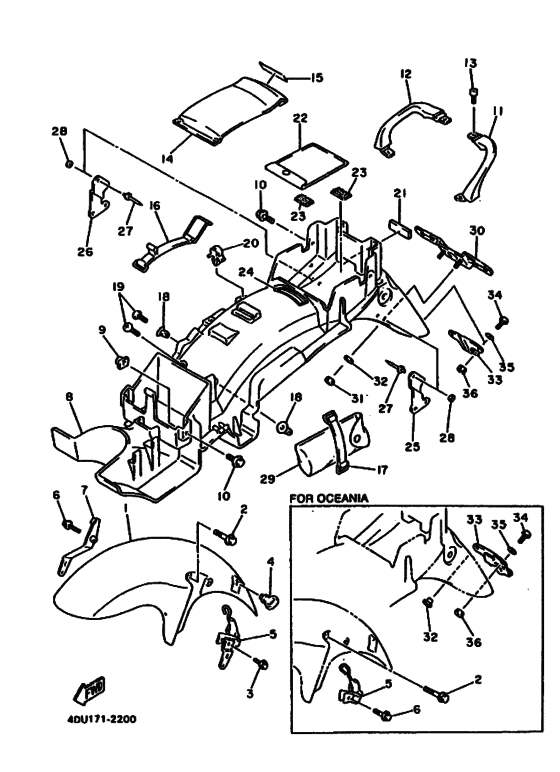

Fender Diagram Yamaha XJ600 SECA II
- Year
- 1992
- Colour
- Vivid Red Cocktail 1 (VRC1; 0121)
- Model code
- 4DU3
- Sales region
- Europe (010)
- Engine Capacity
- 600
- Color Variant
- A
- Model
- XJ600S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4BP-21510-00-P2
Fender, Front
UR VIVID RED COCKTAIL 1 |
4BP-21510-00-P2 |
— | ||
|
2
|
2
95023-06016-00 Bolt, Flange (Small Head)FOR CANADA |
95023-06016-00 |
from US $1.56 |
||
| replacement | |||||
|
2
|
2
95024-06016-00 Bolt, FlangeFOR CANADA |
95024-06016-00 |
from US $1.56 |
||
|
3
|
3
95023-06025-00 Bolt, Flange (Small Head)FOR CANADA |
95023-06025-00 |
from US $1.56 |
||
| replacement | |||||
|
3
|
3
95024-06025-00 Bolt, Flange (Small Head)FOR CANADA |
95024-06025-00 |
from US $1.66 |
||
|
4
|
4
1A8-21518-00-00 Holder, Cable |
1A8-21518-00-00 |
from US $4.53 |
||
|
5
|
5
4DU-25875-00-00
Holder, Brake Hose 1
FOR CANADA |
4DU-25875-00-00 |
— | ||
|
5
|
5
4BP-25875-01-00
Holder, Brake Hose 1
FOR OCEANIA |
4BP-25875-01-00 |
— | ||
| replacement | |||||
|
5
|
5
4DU-25875-00-00
Holder, Brake Hose 1
FOR OCEANIA |
4DU-25875-00-00 |
— | ||
|
6
|
6
95023-06025-00 Bolt, Flange (Small Head) |
95023-06025-00 |
from US $1.56 |
||
| replacement | |||||
|
6
|
6
95024-06025-00 Bolt, Flange (Small Head) |
95024-06025-00 |
from US $1.66 |
||
|
7
|
7
4DU-21597-00-00
Holder,wire 1
FOR CANADA |
4DU-21597-00-00 |
— | ||
|
8
|
8
4DU-21611-00-00 Fndr, RrFOR CANADA |
4DU-21611-00-00 |
US $140.35 |
||
| replacement | |||||
|
8
|
8
4BP-21611-02-00 Fender, RearFOR CANADA |
4BP-21611-02-00 |
US $140.35 |
||
|
8
|
8
4BP-21611-00-00 Fender, RearFOR OCEANIA |
4BP-21611-00-00 |
US $140.35 |
||
| replacement | |||||
|
8
|
8
4BP-21611-02-00 Fender, RearFOR OCEANIA |
4BP-21611-02-00 |
US $140.35 |
||
|
9
|
9
31A-14477-00-00
Plate
|
31A-14477-00-00 |
— | ||
| replacement | |||||
|
9
|
9
31A-14477-10-00 Plate |
31A-14477-10-00 |
US $2.98 |
||
|
10
|
10
901-19060-43-00
Bolt, With Washer
|
901-19060-43-00 |
— | ||
| replacement | |||||
|
10
|
10
901-19062-42-00 Bolt, With Washer |
901-19062-42-00 |
from US $1.52 |
||
|
11
|
11
4BP-21644-00-00 Stay, Rear |
4BP-21644-00-00 |
from US $63.74 |
||
| replacement | |||||
|
11
|
11
4BP-21644-01-00
Stay, Rear
|
4BP-21644-01-00 |
— | ||
|
12
|
12
4BP-21645-00-00 Stay, Rear |
4BP-21645-00-00 |
from US $63.74 |
||
| replacement | |||||
|
12
|
12
4BP-21645-01-00 Stay, Rear |
4BP-21645-01-00 |
from US $84.97 |
||
|
13
|
13
90109-060E9-00 Bolt |
90109-060E9-00 |
from US $1.84 |
||
|
14
|
14
4BP-21651-00-P2
Cover, Rear Fender
UR VIVID RED COCKTAIL 1 |
4BP-21651-00-P2 |
— | ||
|
15
|
15
3KJ-21781-21-00 Emblem 1UR FOR VRC 1 |
3KJ-21781-21-00 |
from US $6.94 |
||
| replacements | |||||
|
15
|
15
3WF-2153E-60-00
Emblem, Yamaha
UR FOR VRC 1 |
3WF-2153E-60-00 |
— | ||
|
15
|
15
3WF-2153E-61-00 EMBLEM, YAMAHAUR FOR VRC 1 |
3WF-2153E-61-00 |
from US $3.72 |
||
|
16
|
16
4BP-82131-00-00 Band, Battery |
4BP-82131-00-00 |
from US $17 |
||
|
17
|
17
120-82131-00-00
Band, Battery
|
120-82131-00-00 |
— | ||
| replacement | |||||
|
17
|
17
7H3-82131-00-00 Band, Battery |
7H3-82131-00-00 |
from US $5.06 |
||
|
18
|
18
90338-08226-00 Plug |
90338-08226-00 |
from US $1.70 |
||
|
19
|
19
97706-60016-00 Screw, Tapping |
97706-60016-00 |
from US $1.26 |
||
| replacement | |||||
|
19
|
19
97707-60016-00 Screw, Tapping |
97707-60016-00 |
from US $1.98 |
||
|
20
|
20
90464-15157-00 Clamp |
90464-15157-00 |
from US $1.81 |
||
|
21
|
21
8U9-77162-00-00 Strip, Weather 2 |
8U9-77162-00-00 |
from US $1.78 |
||
|
22
|
22
4K5-28186-00-00 Pouch |
4K5-28186-00-00 |
from US $13.88 |
||
|
23
|
23
4K5-2814E-10-00 Hook |
4K5-2814E-10-00 |
from US $3.26 |
||
|
24
|
24
3JJ-28446-00-00 Label, Caution |
3JJ-28446-00-00 |
US $9.79 |
||
|
25
|
25
3LK-21688-00-00 Bracket, Rear StayFOR CANADA |
3LK-21688-00-00 |
US $9.09 |
||
|
26
|
26
3LK-21689-00-00 Bracket, Rear Stay 2FOR CANADA |
3LK-21689-00-00 |
US $9.09 |
||
|
27
|
27
90267-40029-00 Rivet, Blind (4X18 Black)FOR CANADA |
90267-40029-00 |
from US $3.54 |
||
|
28
|
28
90201-044A2-00 Washer, PlateFOR CANADA |
90201-044A2-00 |
from US $1.82 |
||
| replacement | |||||
|
28
|
28
90201-044H9-00 Washer, PlateFOR CANADA |
90201-044H9-00 |
from US $1.84 |
||
|
29
|
29
1HX-28100-01-00 Tool Kit |
1HX-28100-01-00 |
US $168.28 |
||
|
30
|
30
1KH-84751-00-90 Bracket, LicenseUNI-CHROME (BLACK CHROMATE) |
1KH-84751-00-90 |
from US $16.01 |
||
| replacement | |||||
|
30
|
30
999-99023-51-00 Bracket, LicenseUNI-CHROME (BLACK CHROMATE) |
999-99023-51-00 |
from US $13.07 |
||
|
31
|
31
956-16061-00-00
Nut (17W)
|
956-16061-00-00 |
— | ||
| replacement | |||||
|
31
|
31
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
32
|
32
902-01060-59-00
Washer, Plate
FOR CANADA |
902-01060-59-00 |
— | ||
| replacements | |||||
|
32
|
32
90201-06057-00 Washer, PlateFOR CANADA |
90201-06057-00 |
from US $1.28 |
||
|
32
|
32
90201-06020-00 Washer, PlateFOR CANADA |
90201-06020-00 |
from US $1.56 |
||
|
32
|
32
90387-061M0-00 CollarFOR OCEANIA |
90387-061M0-00 |
from US $4.11 |
||
|
33
|
33
4DU-85132-00-00
Bracket, Reflector 1
FOR CANADA |
4DU-85132-00-00 |
— | ||
|
33
|
33
3HE-85132-00-00 Bracket, Reflector 1FOR OCEANIA |
3HE-85132-00-00 |
US $15.73 |
||
| replacement | |||||
|
33
|
33
3HE-85132-01-00 Bracket, Reflector 1FOR OCEANIA |
3HE-85132-01-00 |
US $15.73 |
||
|
34
|
34
90149-04278-00 Screw |
90149-04278-00 |
from US $1.70 |
||
|
35
|
35
90201-047A2-00 Washer, Plate |
90201-047A2-00 |
from US $1.70 |
||
|
36
|
36
95602-04100-00 Nut, U |
95602-04100-00 |
from US $4.25 |
||
| replacement | |||||
|
36
|
36
956-17041-00-00 Nut, U |
956-17041-00-00 |
from US $4.25 |
||
