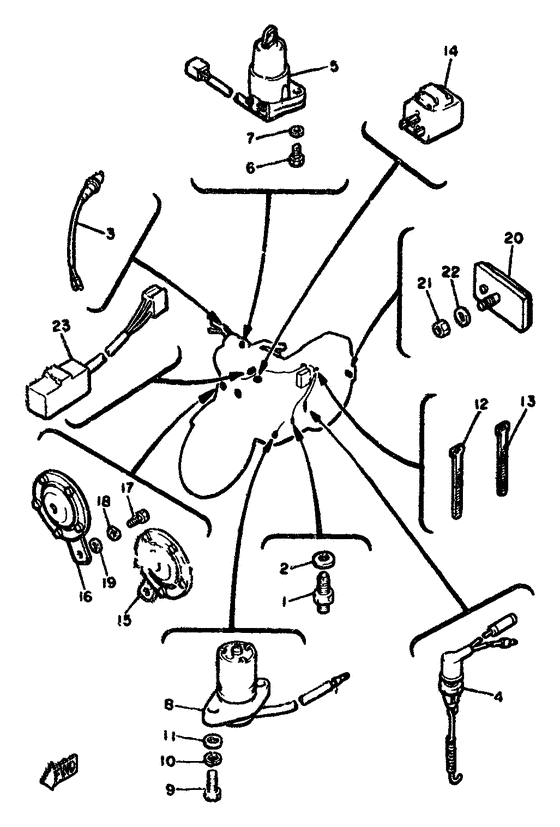

Electrical 2 Diagram Yamaha XJ650
- Year
- 1980
- Model code
- 4K0
- Sales region
- Europe (General) (999)
- Engine Capacity
- 650
- Model
- XJ650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2H7-82540-00-00
Neutral Switch Assy
|
2H7-82540-00-00 |
— | ||
| replacements | |||||
|
1
|
1
4KM-82540-00-00
Neutral Switch Assy
|
4KM-82540-00-00 |
— | ||
|
1
|
1
4GY-82540-10-00 Neutral Switch Assy |
4GY-82540-10-00 |
from US $26.22 |
||
|
2
|
2
90430-10148-00 Gasket |
90430-10148-00 |
from US $1.66 |
||
|
3
|
3
1A0-83980-30-00
Front Stop Switch Assy
|
1A0-83980-30-00 |
— | ||
| replacement | |||||
|
3
|
3
26H-83980-00-00 Front Stop Switch Assy |
26H-83980-00-00 |
from US $64.66 |
||
|
4
|
4
1E9-82530-00-00 Stop Switch Assembly (1E9-82530 |
1E9-82530-00-00 |
from US $39.88 |
||
| replacement | |||||
|
4
|
4
1E9-82530-02-00 Stop Switch Assembly (1E9-82530 |
1E9-82530-02-00 |
from US $34.82 |
||
|
5
|
5
3Y6-82508-80-00 Main Switch Assy |
3Y6-82508-80-00 |
US $138.16 |
||
| replacement | |||||
|
5
|
5
3Y6-82501-81-00 Main Switch Steering Lock |
3Y6-82501-81-00 |
US $138.16 |
||
|
6
|
6
97322-06016-00 Bolt |
97322-06016-00 |
from US $1.28 |
||
| replacements | |||||
|
6
|
6
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
6
|
6
97014-06016-00 Bolt, Hexagon |
97014-06016-00 |
from US $1.39 |
||
|
6
|
6
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
7
|
7
92902-06600-00 Washer, Plate |
92902-06600-00 |
US $1.07 |
||
| replacement | |||||
|
7
|
7
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
8
|
8
4H7-85720-00-00 Oil Level Gauge Assy |
4H7-85720-00-00 |
from US $183.75 |
||
| replacements | |||||
|
8
|
8
4H7-85720-01-00 Oil Lvl Gauge Assembly |
4H7-85720-01-00 |
from US $183.75 |
||
|
8
|
8
4H7-85720-02-00 |
4H7-85720-02-00 |
US $190.94 |
||
|
9
|
9
97321-06020-00 Bolt |
97321-06020-00 |
from US $1.07 |
||
| replacement | |||||
|
9
|
9
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.16 |
||
|
10
|
10
92901-06100-00 Washer, Spring |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
10
|
10
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
11
|
11
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
11
|
11
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
11
|
11
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
11
|
11
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
12
|
12
437-83936-10-00 Band, Switch Cord |
437-83936-10-00 |
from US $1.56 |
||
| replacement | |||||
|
12
|
12
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
13
|
13
447-82591-00-00 Band, Switch Cord |
447-82591-00-00 |
from US $1.56 |
||
| replacement | |||||
|
13
|
13
25G-83936-01-00 Band, Switch Cord |
25G-83936-01-00 |
from US $1.56 |
||
|
14
|
14
4K0-83350-20-00
Flasher Relay Assy
|
4K0-83350-20-00 |
— | ||
|
15
|
15
2H9-83371-20-00
Horn
|
2H9-83371-20-00 |
— | ||
| replacement | |||||
|
15
|
15
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
16
|
16
2H9-83371-30-00
Horn
|
2H9-83371-30-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
17
|
17
97306-08014-00 Bolt |
97306-08014-00 |
from US $1.42 |
||
| replacement | |||||
|
17
|
17
970-17080-16-00 Bolt |
970-17080-16-00 |
from US $1.42 |
||
|
18
|
18
929-06081-00-00
Washer, Spring
|
929-06081-00-00 |
— | ||
| replacement | |||||
|
18
|
18
92907-08100-00 Washer, Spring |
92907-08100-00 |
from US $0.85 |
||
|
19
|
19
929-06086-00-00
Washer
|
929-06086-00-00 |
— | ||
| replacement | |||||
|
19
|
19
929-07086-00-00 Washer, Plate |
929-07086-00-00 |
from US $1.39 |
||
|
20
|
20
3Y6-85130-00-00 Rear Reflector Assy |
3Y6-85130-00-00 |
from US $21.40 |
||
| replacement | |||||
|
20
|
20
3Y6-85130-02-00 Reflector |
3Y6-85130-02-00 |
from US $12.80 |
||
|
21
|
21
95601-05100-00 Nut, U |
95601-05100-00 |
US $1.98 |
||
| replacement | |||||
|
21
|
21
95617-05100-00 Nut, U |
95617-05100-00 |
from US $2.22 |
||
|
22
|
22
92901-05200-00 Washer, Plain |
92901-05200-00 |
US $1.56 |
||
| replacement | |||||
|
22
|
22
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.56 |
||
|
23
|
23
1A0-83395-03-00
Flasher Cancel Unit
|
1A0-83395-03-00 |
— | ||
| replacement | |||||
|
23
|
23
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
