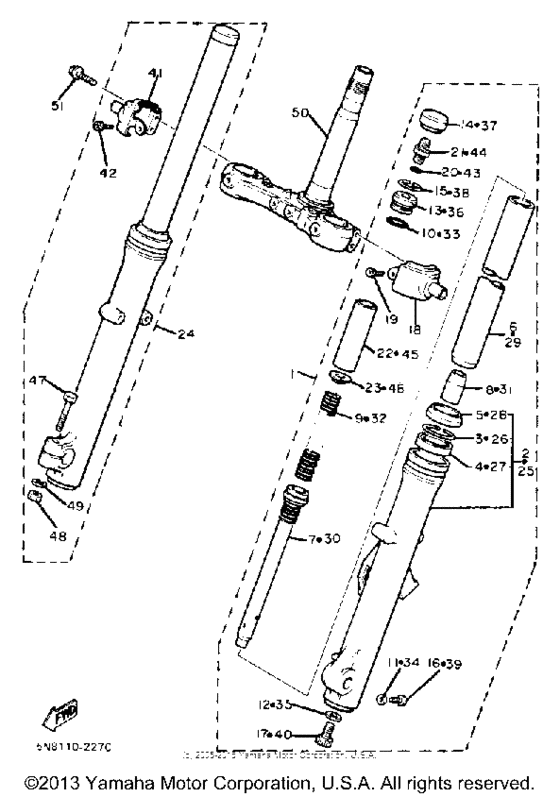

Front fork Diagram Yamaha XJ650
- Year
- 1982
- Sales region
- USA
- Engine Capacity
- 650
- Model
- XJ650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5N8-23102-00-00
Front Fork Assembly L
|
5N8-23102-00-00 |
— | ||
|
2
|
2
4H7-23126-00-00
Tube, Outer 1
|
4H7-23126-00-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
3
|
3
4A1-23156-00-00 Ring, Snap |
4A1-23156-00-00 |
from US $4.22 |
||
|
4
|
4
49A-23145-00-00 Oil Seal |
49A-23145-00-00 |
from US $15.44 |
||
| replacement | |||||
|
4
|
4
4ES-23145-00-00 Oil Seal |
4ES-23145-00-00 |
from US $15.44 |
||
|
5
|
5
33M-23144-00-00 Seal, Dust (15R-23144-00)15R-23144-00 |
33M-23144-00-00 |
from US $29.36 |
||
|
6
|
6
4H7-23110-00-00
Inner Tube 1
|
4H7-23110-00-00 |
— | ||
| replacement | |||||
|
6
|
6
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
7
|
7
4H7-23170-00-00
Cylinder, Frtfrkfront Fork
|
4H7-23170-00-00 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
8
|
8
1W1-23173-L0-00 Taper Spindle |
1W1-23173-L0-00 |
from US $24.65 |
||
|
9
|
9
5N8-23141-00-00
Spring, Front Fork
|
5N8-23141-00-00 |
— | ||
|
10
|
10
3J2-23114-00-00 O-Ring |
3J2-23114-00-00 |
from US $3.54 |
||
|
11
|
11
122-23129-00-00 Gasket, Drain Plug |
122-23129-00-00 |
from US $3.26 |
||
|
12
|
12
509-23158-L0-00 Gasket |
509-23158-L0-00 |
from US $4.03 |
||
|
13
|
13
3J2-23111-00-00
Bolt, Cap
|
3J2-23111-00-00 |
— | ||
|
14
|
14
4X7-23168-00-00
Cap, Front Fork
|
4X7-23168-00-00 |
— | ||
|
15
|
15
3J2-23183-00-00 Circlip |
3J2-23183-00-00 |
from US $6.44 |
||
|
16
|
16
4H7-23119-00-00
Screw, Pan Head
|
4H7-23119-00-00 |
— | ||
| replacements | |||||
|
16
|
16
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
16
|
16
985-11040-06-00
Screw, Pan Head (98502-04006)
|
985-11040-06-00 |
— | ||
|
17
|
17
278-23181-50-00
Bolt, Hexagon Socket Head
|
278-23181-50-00 |
— | ||
| replacement | |||||
|
17
|
17
3D8-23181-00-00 Bolt, Hexagon Socket Head |
3D8-23181-00-00 |
from US $5.41 |
||
|
18
|
18
4H7-23122-00-00
Cover, Outer 1
|
4H7-23122-00-00 |
— | ||
|
19
|
19
4H7-23181-00-00
Bolt, Hex Sckt Head
|
4H7-23181-00-00 |
— | ||
| replacement | |||||
|
19
|
19
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
20
|
20
3J2-23147-00-00 O/ring |
3J2-23147-00-00 |
from US $4.39 |
||
|
21
|
21
4V4-23190-L0-00 Air Valve |
4V4-23190-L0-00 |
from US $41.45 |
||
|
22
|
22
5N8-23118-00-00 Inactive Part Number |
5N8-23118-00-00 |
from US $6.59 |
||
|
23
|
23
583-23142-00-00
Seat, Spring Upper
|
583-23142-00-00 |
— | ||
|
24
|
24
5N8-23103-00-00
Front Fork Assembly R
|
5N8-23103-00-00 |
— | ||
|
25
|
25
22U-23136-01-38
Tube, Outer 2
|
22U-23136-01-38 |
— | ||
| replacement | |||||
|
25
|
25
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
26
|
26
4A1-23156-00-00 Ring, Snap |
4A1-23156-00-00 |
from US $4.22 |
||
|
27
|
27
49A-23145-00-00 Oil Seal |
49A-23145-00-00 |
from US $15.44 |
||
| replacement | |||||
|
27
|
27
4ES-23145-00-00 Oil Seal |
4ES-23145-00-00 |
from US $15.44 |
||
|
28
|
28
33M-23144-00-00 Seal, Dust (15R-23144-00)15R-23144-00 |
33M-23144-00-00 |
from US $29.36 |
||
|
29
|
29
4H7-23110-00-00
Inner Tube 1
|
4H7-23110-00-00 |
— | ||
| replacement | |||||
|
29
|
29
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
30
|
30
4H7-23170-00-00
Cylinder, Frtfrkfront Fork
|
4H7-23170-00-00 |
— | ||
| replacement | |||||
|
30
|
30
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
31
|
31
1W1-23173-L0-00 Taper Spindle |
1W1-23173-L0-00 |
from US $24.65 |
||
|
32
|
32
5N8-23141-00-00
Spring, Front Fork
|
5N8-23141-00-00 |
— | ||
|
33
|
33
3J2-23114-00-00 O-Ring |
3J2-23114-00-00 |
from US $3.54 |
||
|
34
|
34
122-23129-00-00 Gasket, Drain Plug |
122-23129-00-00 |
from US $3.26 |
||
|
35
|
35
509-23158-L0-00 Gasket |
509-23158-L0-00 |
from US $4.03 |
||
|
36
|
36
3J2-23111-00-00
Bolt, Cap
|
3J2-23111-00-00 |
— | ||
|
37
|
37
4X7-23168-00-00
Cap, Front Fork
|
4X7-23168-00-00 |
— | ||
|
38
|
38
3J2-23183-00-00 Circlip |
3J2-23183-00-00 |
from US $6.44 |
||
|
39
|
39
4H7-23119-00-00
Screw, Pan Head
|
4H7-23119-00-00 |
— | ||
| replacements | |||||
|
39
|
39
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
39
|
39
985-11040-06-00
Screw, Pan Head (98502-04006)
|
985-11040-06-00 |
— | ||
|
40
|
40
278-23181-50-00
Bolt, Hexagon Socket Head
|
278-23181-50-00 |
— | ||
| replacement | |||||
|
40
|
40
3D8-23181-00-00 Bolt, Hexagon Socket Head |
3D8-23181-00-00 |
from US $5.41 |
||
|
41
|
41
4H7-23132-00-00
Cover, Outer 2
|
4H7-23132-00-00 |
— | ||
| replacement | |||||
|
41
|
41
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
42
|
42
4H7-23181-00-00
Bolt, Hex Sckt Head
|
4H7-23181-00-00 |
— | ||
| replacement | |||||
|
42
|
42
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
43
|
43
3J2-23147-00-00 O/ring |
3J2-23147-00-00 |
from US $4.39 |
||
|
44
|
44
4V4-23190-L0-00 Air Valve |
4V4-23190-L0-00 |
from US $41.45 |
||
|
45
|
45
5N8-23118-00-00 Inactive Part Number |
5N8-23118-00-00 |
from US $6.59 |
||
|
46
|
46
583-23142-00-00
Seat, Spring Upper
|
583-23142-00-00 |
— | ||
|
47
|
47
97313-08045-00 Bolt, Hexagon |
97313-08045-00 |
from US $4.11 |
||
| replacement | |||||
|
47
|
47
97013-08045-00 Bolt |
97013-08045-00 |
from US $4.11 |
||
|
48
|
48
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
| replacement | |||||
|
48
|
48
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
49
|
49
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
50
|
50
5N8-23340-00-33
Under Bracket
|
5N8-23340-00-33 |
— | ||
|
51
|
51
18G-23128-00-00 Bolt, With Washer |
18G-23128-00-00 |
from US $7.37 |
||
