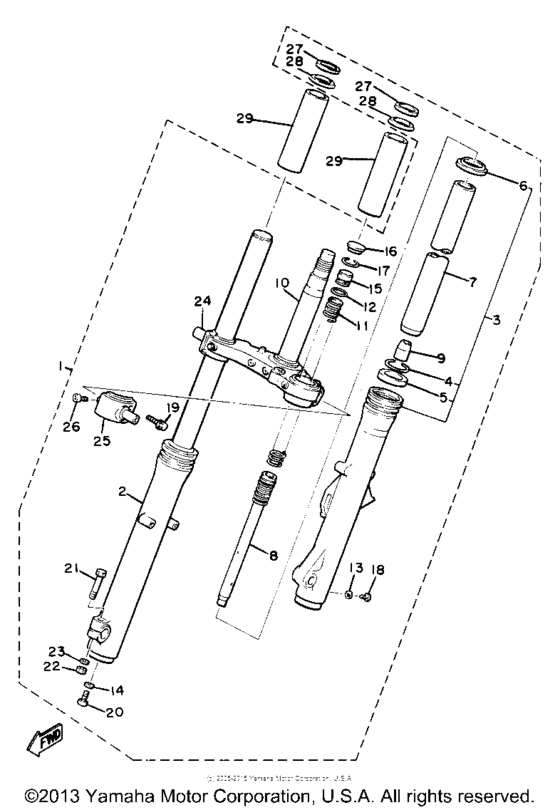

Front fork Diagram Yamaha XJ650
- Year
- 1981
- Sales region
- USA
- Engine Capacity
- 650
- Model
- XJ650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4W5-23101-00-00
Front Fork Assembly
|
4W5-23101-00-00 |
— | ||
|
2
|
2
4W5-23136-00-6G
Tube, Outer 2 (4H7-23136-00-6
4H7-23136-00-6 NEW YAMAHA BLK |
4W5-23136-00-6G |
— | ||
|
3
|
3
4W5-23126-00-6G
Tube, Outer 1
NEW YAMAHA BLK |
4W5-23126-00-6G |
— | ||
|
4
|
4
4A1-23156-00-00 Ring, Snap |
4A1-23156-00-00 |
from US $4.22 |
||
|
5
|
5
49A-23145-00-00 Oil Seal |
49A-23145-00-00 |
from US $15.44 |
||
| replacement | |||||
|
5
|
5
4ES-23145-00-00 Oil Seal |
4ES-23145-00-00 |
from US $15.44 |
||
|
6
|
6
33M-23144-00-00 Seal, Dust (15R-23144-00)15R-23144-00 |
33M-23144-00-00 |
from US $29.36 |
||
|
7
|
7
4H7-23110-00-00
Inner Tube 1
|
4H7-23110-00-00 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
8
|
8
4H7-23170-00-00
Cylinder, Frtfrkfront Fork
|
4H7-23170-00-00 |
— | ||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
9
|
9
1W1-23173-L0-00 Taper Spindle |
1W1-23173-L0-00 |
from US $24.65 |
||
|
10
|
10
5N8-23340-00-33
Under Bracket
|
5N8-23340-00-33 |
— | ||
|
11
|
11
4H7-23141-00-00
Spring, Front Fork
|
4H7-23141-00-00 |
— | ||
|
12
|
12
3J2-23114-00-00 O-Ring |
3J2-23114-00-00 |
from US $3.54 |
||
|
13
|
13
122-23129-00-00 Gasket, Drain Plug |
122-23129-00-00 |
from US $3.26 |
||
|
14
|
14
509-23158-L0-00 Gasket |
509-23158-L0-00 |
from US $4.03 |
||
|
15
|
15
3Y1-23111-00-00
Bolt, Cap
|
3Y1-23111-00-00 |
— | ||
|
16
|
16
3Y1-23168-00-00
Cap, Front Fork
|
3Y1-23168-00-00 |
— | ||
|
17
|
17
3J2-23183-00-00 Circlip |
3J2-23183-00-00 |
from US $6.44 |
||
|
18
|
18
4W5-23119-00-00 Plug, Drain |
4W5-23119-00-00 |
US $1.56 |
||
| replacements | |||||
|
18
|
18
901-59041-44-00
Screw, With Washer
|
901-59041-44-00 |
— | ||
|
18
|
18
985-17040-16-00 Screw, Pan Head |
985-17040-16-00 |
from US $1.52 |
||
|
18
|
18
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
18
|
18
99999-04427-00 Screw,pan Head W/washer |
99999-04427-00 |
US $3.04 |
||
|
19
|
19
18G-23128-00-00 Bolt, With Washer |
18G-23128-00-00 |
from US $7.37 |
||
|
20
|
20
278-23181-50-00
Bolt, Hexagon Socket Head
|
278-23181-50-00 |
— | ||
| replacement | |||||
|
20
|
20
3D8-23181-00-00 Bolt, Hexagon Socket Head |
3D8-23181-00-00 |
from US $5.41 |
||
|
21
|
21
97026-08045-00 Bolt |
97026-08045-00 |
from US $1.84 |
||
| replacement | |||||
|
21
|
21
97017-08045-00 Bolt(3Hn) |
97017-08045-00 |
from US $1.84 |
||
|
22
|
22
953-36086-00-00
Nut, Hex
|
953-36086-00-00 |
— | ||
| replacement | |||||
|
22
|
22
95337-08600-00 Nut |
95337-08600-00 |
from US $1.52 |
||
|
23
|
23
929-06081-00-00
Washer, Spring
|
929-06081-00-00 |
— | ||
| replacement | |||||
|
23
|
23
92907-08100-00 Washer, Spring |
92907-08100-00 |
from US $0.85 |
||
|
24
|
24
4W5-23132-00-6G
Cover, Outer 2
NEW YAMAHA BLK |
4W5-23132-00-6G |
— | ||
|
25
|
25
4W5-23122-00-6G
Cover, Outer 1
NEW YAMAHA BLK |
4W5-23122-00-6G |
— | ||
|
26
|
26
4H7-23181-00-00
Bolt, Hex Sckt Head
|
4H7-23181-00-00 |
— | ||
| replacement | |||||
|
26
|
26
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
27
|
27
2H7-23163-00-00 Gasket (42H-23163-00-00)42H-23163-00-00 |
2H7-23163-00-00 |
from US $6.61 |
||
|
28
|
28
4W5-23115-00-00
Guide, Cover Upper
|
4W5-23115-00-00 |
— | ||
|
29
|
29
4W5-23131-00-6G
Cover, Upper 2
NEW YAMAHA BLK |
4W5-23131-00-6G |
— | ||
