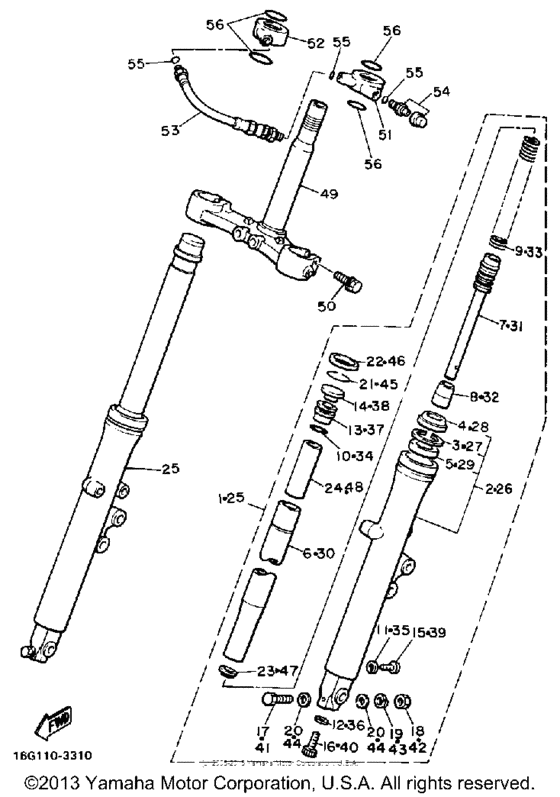

Front fork Diagram Yamaha XJ650
- Year
- 1982
- Sales region
- USA
- Engine Capacity
- 650
- Model
- XJ650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16G-23102-02-00
Front Fork Assembly L
|
16G-23102-02-00 |
— | ||
|
2
|
2
16G-23126-00-6G
Tube, Outer 1
NW YAMAHA BLK |
16G-23126-00-6G |
— | ||
|
3
|
3
4A1-23156-00-00 Ring, Snap |
4A1-23156-00-00 |
from US $4.22 |
||
|
4
|
4
33M-23144-00-00 Seal, Dust (15R-23144-00)15R-23144-00 |
33M-23144-00-00 |
from US $29.36 |
||
|
5
|
5
49A-23145-00-00 Oil Seal |
49A-23145-00-00 |
from US $15.44 |
||
| replacement | |||||
|
5
|
5
4ES-23145-00-00 Oil Seal |
4ES-23145-00-00 |
from US $15.44 |
||
|
6
|
6
16G-23110-01-00
Inner Tube 1
|
16G-23110-01-00 |
— | ||
|
7
|
7
16G-23170-01-00
Cylinder, Frtfrk
|
16G-23170-01-00 |
— | ||
|
8
|
8
1W1-23173-L0-00 Taper Spindle |
1W1-23173-L0-00 |
from US $24.65 |
||
|
9
|
9
11U-23141-00-00
Spring, Front Fork
|
11U-23141-00-00 |
— | ||
|
10
|
10
240-23114-00-00 Gasket |
240-23114-00-00 |
from US $5.24 |
||
|
11
|
11
122-23129-00-00 Gasket, Drain Plug |
122-23129-00-00 |
from US $3.26 |
||
|
12
|
12
509-23158-L0-00 Gasket |
509-23158-L0-00 |
from US $4.03 |
||
|
13
|
13
11H-23111-00-00
Bolt, Cap
|
11H-23111-00-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
14
|
14
16G-23168-00-00 Cap, Front Fork |
16G-23168-00-00 |
from US $11.76 |
||
| replacement | |||||
|
14
|
14
26H-23168-00-00 Cap, Front Fork |
26H-23168-00-00 |
from US $11.76 |
||
|
15
|
15
4H7-23119-00-00
Screw, Pan Head
|
4H7-23119-00-00 |
— | ||
| replacements | |||||
|
15
|
15
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
15
|
15
985-11040-06-00
Screw, Pan Head (98502-04006)
|
985-11040-06-00 |
— | ||
|
16
|
16
278-23181-50-00
Bolt, Hexagon Socket Head
|
278-23181-50-00 |
— | ||
| replacement | |||||
|
16
|
16
3D8-23181-00-00 Bolt, Hexagon Socket Head |
3D8-23181-00-00 |
from US $5.41 |
||
|
17
|
17
4U8-23356-10-00 Bolt |
4U8-23356-10-00 |
from US $2.41 |
||
| replacement | |||||
|
17
|
17
97017-08060-00 Bolt |
97017-08060-00 |
from US $2.41 |
||
|
18
|
18
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
| replacement | |||||
|
18
|
18
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
19
|
19
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
20
|
20
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
20
|
20
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
21
|
21
15R-23153-00-00
Ring, Snap
|
15R-23153-00-00 |
— | ||
|
22
|
22
2H7-23163-00-00 Gasket (42H-23163-00-00)42H-23163-00-00 |
2H7-23163-00-00 |
from US $6.61 |
||
|
23
|
23
583-23142-00-00
Seat, Spring Upper
|
583-23142-00-00 |
— | ||
|
24
|
24
58T-23118-L0-00
Spacer
|
58T-23118-L0-00 |
— | ||
|
25
|
25
16G-23103-02-00
Front Fork Assembly R
|
16G-23103-02-00 |
— | ||
|
26
|
26
16G-23136-00-6G
Tube, Outer 2
NW YAMAHA BLK |
16G-23136-00-6G |
— | ||
|
27
|
27
4A1-23156-00-00 Ring, Snap |
4A1-23156-00-00 |
from US $4.22 |
||
|
28
|
28
33M-23144-00-00 Seal, Dust (15R-23144-00)15R-23144-00 |
33M-23144-00-00 |
from US $29.36 |
||
|
29
|
29
49A-23145-00-00 Oil Seal |
49A-23145-00-00 |
from US $15.44 |
||
| replacement | |||||
|
29
|
29
4ES-23145-00-00 Oil Seal |
4ES-23145-00-00 |
from US $15.44 |
||
|
30
|
30
16G-23110-01-00
Inner Tube 1
|
16G-23110-01-00 |
— | ||
|
31
|
31
16G-23170-01-00
Cylinder, Frtfrk
|
16G-23170-01-00 |
— | ||
|
32
|
32
1W1-23173-L0-00 Taper Spindle |
1W1-23173-L0-00 |
from US $24.65 |
||
|
33
|
33
11U-23141-00-00
Spring, Front Fork
|
11U-23141-00-00 |
— | ||
|
34
|
34
240-23114-00-00 Gasket |
240-23114-00-00 |
from US $5.24 |
||
|
35
|
35
122-23129-00-00 Gasket, Drain Plug |
122-23129-00-00 |
from US $3.26 |
||
|
36
|
36
509-23158-L0-00 Gasket |
509-23158-L0-00 |
from US $4.03 |
||
|
37
|
37
11H-23111-00-00
Bolt, Cap
|
11H-23111-00-00 |
— | ||
| replacement | |||||
|
37
|
37
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
38
|
38
16G-23168-00-00 Cap, Front Fork |
16G-23168-00-00 |
from US $11.76 |
||
| replacement | |||||
|
38
|
38
26H-23168-00-00 Cap, Front Fork |
26H-23168-00-00 |
from US $11.76 |
||
|
39
|
39
4H7-23119-00-00
Screw, Pan Head
|
4H7-23119-00-00 |
— | ||
| replacements | |||||
|
39
|
39
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
39
|
39
985-11040-06-00
Screw, Pan Head (98502-04006)
|
985-11040-06-00 |
— | ||
|
40
|
40
278-23181-50-00
Bolt, Hexagon Socket Head
|
278-23181-50-00 |
— | ||
| replacement | |||||
|
40
|
40
3D8-23181-00-00 Bolt, Hexagon Socket Head |
3D8-23181-00-00 |
from US $5.41 |
||
|
41
|
41
4U8-23356-10-00 Bolt |
4U8-23356-10-00 |
from US $2.41 |
||
| replacement | |||||
|
41
|
41
97017-08060-00 Bolt |
97017-08060-00 |
from US $2.41 |
||
|
42
|
42
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
| replacement | |||||
|
42
|
42
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
43
|
43
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
44
|
44
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
44
|
44
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
45
|
45
15R-23153-00-00
Ring, Snap
|
15R-23153-00-00 |
— | ||
|
46
|
46
2H7-23163-00-00 Gasket (42H-23163-00-00)42H-23163-00-00 |
2H7-23163-00-00 |
from US $6.61 |
||
|
47
|
47
583-23142-00-00
Seat, Spring Upper
|
583-23142-00-00 |
— | ||
|
48
|
48
58T-23118-L0-00
Spacer
|
58T-23118-L0-00 |
— | ||
|
49
|
49
16G-23340-00-00
Under Bracketcomp
|
16G-23340-00-00 |
— | ||
|
50
|
50
18G-23128-00-00 Bolt, With Washer |
18G-23128-00-00 |
from US $7.37 |
||
|
51
|
51
16G-2318A-01-00
Joint, Air 1
|
16G-2318A-01-00 |
— | ||
|
52
|
52
16G-2319A-01-00
Joint, Air
|
16G-2319A-01-00 |
— | ||
|
53
|
53
24M-2318F-01-00
Hose, Air
|
24M-2318F-01-00 |
— | ||
|
54
|
54
4V4-23190-L0-00 Air Valve |
4V4-23190-L0-00 |
from US $41.45 |
||
|
55
|
55
3J2-23147-00-00 O/ring |
3J2-23147-00-00 |
from US $4.39 |
||
|
56
|
56
15R-23188-00-00
O-Ring
|
15R-23188-00-00 |
— | ||
