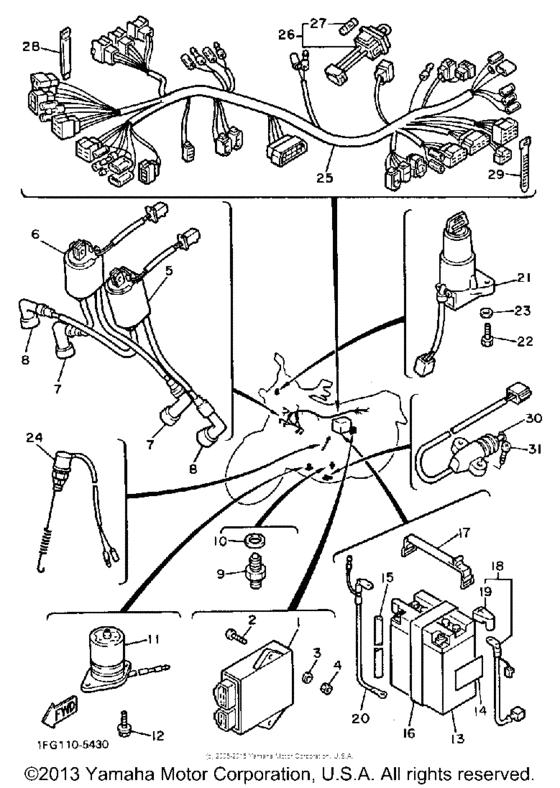

Electrical (2) Diagram Yamaha XJ700 Maxim
- Year
- 1985
- Sales region
- USA
- Engine Capacity
- 700
- Model
- XJ700
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1FG-82305-10-00
Ignitor Unit Assembly 1
|
1FG-82305-10-00 |
— | ||
|
2
|
2
92503-06016-00 New Genuine PartIN PRICE BOOK 9250 |
92503-06016-00 |
US $1.07 |
||
| replacement | |||||
|
2
|
2
98507-06014-00 Screw, Pan HeadIN PRICE BOOK 9250 |
98507-06014-00 |
from US $1.07 |
||
|
3
|
3
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
4
|
4
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.52 |
||
| replacement | |||||
|
4
|
4
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.52 |
||
|
5
|
5
1FG-82310-10-00 Ignition Coil Asy |
1FG-82310-10-00 |
US $289.10 |
||
| replacement | |||||
|
5
|
5
1AA-82310-09-00 Ignition Coil Assy |
1AA-82310-09-00 |
from US $265.60 |
||
|
6
|
6
1FG-82320-10-00 Ignition Coil Asy |
1FG-82320-10-00 |
US $289.10 |
||
| replacement | |||||
|
6
|
6
1AA-82310-09-00 Ignition Coil Assy |
1AA-82310-09-00 |
from US $265.60 |
||
|
7
|
7
1J7-82370-00-00 Plug Cap Assembly |
1J7-82370-00-00 |
from US $45.18 |
||
|
8
|
8
256-82370-00-00 Plug Cap Assy |
256-82370-00-00 |
from US $32.87 |
||
| replacements | |||||
|
8
|
8
4BP-82370-00-00 Plug Cap Assy |
4BP-82370-00-00 |
from US $38.34 |
||
|
8
|
8
4BP-82370-01-00 PLUG CAP ASSY |
4BP-82370-01-00 |
from US $38.34 |
||
|
9
|
9
2H7-82540-00-00
Neutral Switch Assy
|
2H7-82540-00-00 |
— | ||
| replacements | |||||
|
9
|
9
4KM-82540-00-00
Neutral Switch Assy
|
4KM-82540-00-00 |
— | ||
|
9
|
9
4GY-82540-10-00 Neutral Switch Assy |
4GY-82540-10-00 |
from US $26.22 |
||
|
10
|
10
90430-10171-00 Gasket (5R6) |
90430-10171-00 |
from US $1.39 |
||
|
11
|
11
4H7-85720-01-00 Oil Lvl Gauge Assembly |
4H7-85720-01-00 |
from US $183.75 |
||
| replacement | |||||
|
11
|
11
4H7-85720-02-00 |
4H7-85720-02-00 |
US $190.94 |
||
|
12
|
12
950-26060-16-00
Bolt, Flange
|
950-26060-16-00 |
— | ||
| replacement | |||||
|
12
|
12
901-05066-96-00 Bolt, Flange |
901-05066-96-00 |
from US $2.64 |
||
|
13
|
13
BTY-YB14L-A2-00
Yb14La2 Yuasa Batte
|
BTY-YB14L-A2-00 |
— | ||
| replacement | |||||
|
13
|
13
YB1-4LA20-00-00
Bat Yb14L-A2 (Cb14L-A2) Yu
|
YB1-4LA20-00-00 |
— | ||
|
14
|
14
118-82141-09-00
Label, Battery
|
118-82141-09-00 |
— | ||
| replacements | |||||
|
14
|
14
40A-82141-G0-00
Label, Battery
|
40A-82141-G0-00 |
— | ||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
15
|
15
90445-08348-00 Hose (L1500) |
90445-08348-00 |
from US $10.91 |
||
| replacement | |||||
|
15
|
15
90445-084J0-00 Pipe |
90445-084J0-00 |
from US $8.76 |
||
|
16
|
16
1UA-82124-00-00
Band, Battery
|
1UA-82124-00-00 |
— | ||
|
17
|
17
4J2-82131-01-00 Band, Battery |
4J2-82131-01-00 |
from US $13.74 |
||
|
18
|
18
1TX-82115-00-00 Wire, Plus Lead |
1TX-82115-00-00 |
from US $49.06 |
||
|
19
|
19
4X7-82119-00-00 Cover, Lead Wire |
4X7-82119-00-00 |
from US $13.07 |
||
|
20
|
20
1AA-82116-00-00
Wire, Minus Lead
|
1AA-82116-00-00 |
— | ||
|
21
|
21
42X-82501-50-00
Main Switch Steering Lock
|
42X-82501-50-00 |
— | ||
|
22
|
22
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
22
|
22
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
22
|
22
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
23
|
23
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
24
|
24
5R2-82530-02-00 Stop Switch Assembly |
5R2-82530-02-00 |
from US $16.02 |
||
| replacement | |||||
|
24
|
24
5R2-82530-03-00 Stop Switch Assy |
5R2-82530-03-00 |
from US $26.26 |
||
|
25
|
25
1FG-82590-00-00
Wire Harness Assemblyassy
|
1FG-82590-00-00 |
— | ||
|
26
|
26
3H5-82150-00-00
Fuse Holder Assembly
|
3H5-82150-00-00 |
— | ||
|
27
|
27
2H7-82151-00-00 Fuse12V-30A |
2H7-82151-00-00 |
from US $4.82 |
||
|
28
|
28
341-26397-01-00
Band
|
341-26397-01-00 |
— | ||
| replacements | |||||
|
28
|
28
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
28
|
28
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
29
|
29
25G-83936-01-00 Band, Switch Cord |
25G-83936-01-00 |
from US $1.56 |
||
|
30
|
30
1AA-82566-00-00
Switch,side Stand
|
1AA-82566-00-00 |
— | ||
| replacement | |||||
|
30
|
30
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
31
|
31
987-06050-16-00
Screw, Flat Head
|
987-06050-16-00 |
— | ||
| replacement | |||||
|
31
|
31
98707-05016-00 Screw, Flat Head |
98707-05016-00 |
from US $1.35 |
||
