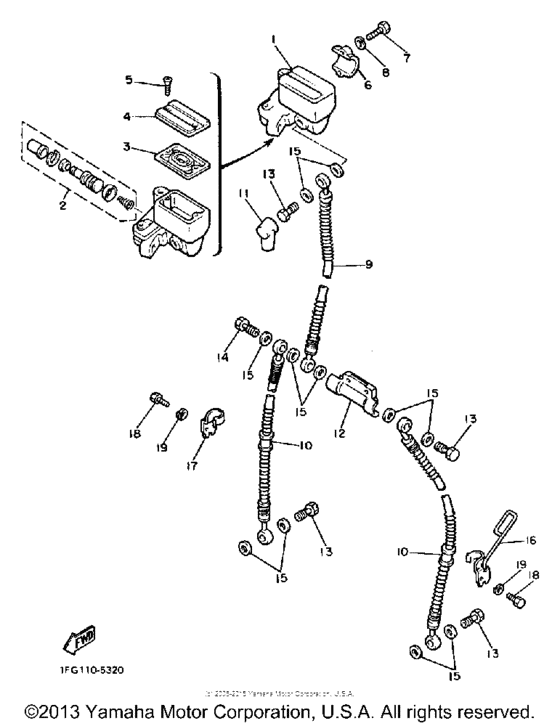

Front master cylinder Diagram Yamaha XJ700 Maxim
- Year
- 1985
- Sales region
- USA
- Engine Capacity
- 700
- Model
- XJ700
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4G0-25850-01-00 Master Cylinder Assembly |
4G0-25850-01-00 |
from US $441.94 |
||
|
2
|
2
4K0-W0041-00-00 Cylinder Kit,master |
4K0-W0041-00-00 |
from US $51.26 |
||
| replacement | |||||
|
2
|
2
4K0-W0041-50-00 Cylinder Kit, Master |
4K0-W0041-50-00 |
from US $51.26 |
||
|
3
|
3
4K0-25854-00-00
Diaphragm, Reservoir
|
4K0-25854-00-00 |
— | ||
| replacement | |||||
|
3
|
3
4HM-25854-00-00 Diaphragm, Reservoir |
4HM-25854-00-00 |
from US $17.48 |
||
|
4
|
4
3GM-25852-01-00
Cap, Reservoir
|
3GM-25852-01-00 |
— | ||
| replacement | |||||
|
4
|
4
3GM-25852-02-00 Cap, Reservoir |
3GM-25852-02-00 |
from US $15.84 |
||
|
5
|
5
987-06040-12-00
Screw, Flat Head
|
987-06040-12-00 |
— | ||
| replacement | |||||
|
5
|
5
98707-04012-00 Screw, Flat Head |
98707-04012-00 |
from US $1.52 |
||
|
6
|
6
4L0-25867-00-00 Holder |
4L0-25867-00-00 |
from US $18.42 |
||
|
7
|
7
97016-06025-00 Bolt |
97016-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
7
|
7
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
8
|
8
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
8
|
8
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
|
9
|
9
1AA-25872-01-00
Hose, Brake 1
|
1AA-25872-01-00 |
— | ||
| replacement | |||||
|
9
|
9
999-99027-95-00
element
|
999-99027-95-00 |
— | ||
|
10
|
10
1AA-25873-01-00
Hose,brake 2
|
1AA-25873-01-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99027-96-00
element
|
999-99027-96-00 |
— | ||
|
11
|
11
306-25862-00-00 Boot, Master Cylinder |
306-25862-00-00 |
from US $24.37 |
||
|
12
|
12
1AA-25885-00-00
Joint
|
1AA-25885-00-00 |
— | ||
|
13
|
13
90401-10034-00 Bolt, Union |
90401-10034-00 |
from US $3.26 |
||
| replacement | |||||
|
13
|
13
90401-10159-00 Bolt, Union(3Gm) |
90401-10159-00 |
from US $3.26 |
||
|
14
|
14
90401-10044-00 Bolt, Union |
90401-10044-00 |
from US $9.49 |
||
| replacement | |||||
|
14
|
14
90401-10038-00 Bolt, Union |
90401-10038-00 |
from US $9.49 |
||
|
15
|
15
902-01101-18-00 Washer, Plate |
902-01101-18-00 |
from US $1.39 |
||
| replacement | |||||
|
15
|
15
90201-108J9-00 Washer, Plate |
90201-108J9-00 |
US $1.39 |
||
|
16
|
16
42X-25875-00-00
Holder, Brake Hose 1
|
42X-25875-00-00 |
— | ||
|
17
|
17
42X-25876-00-00
Holder, Brake Hose 2
|
42X-25876-00-00 |
— | ||
|
18
|
18
970-11060-10-00
Bolt
|
970-11060-10-00 |
— | ||
| replacement | |||||
|
18
|
18
97017-06010-00 Bolt |
97017-06010-00 |
from US $1.66 |
||
|
19
|
19
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
