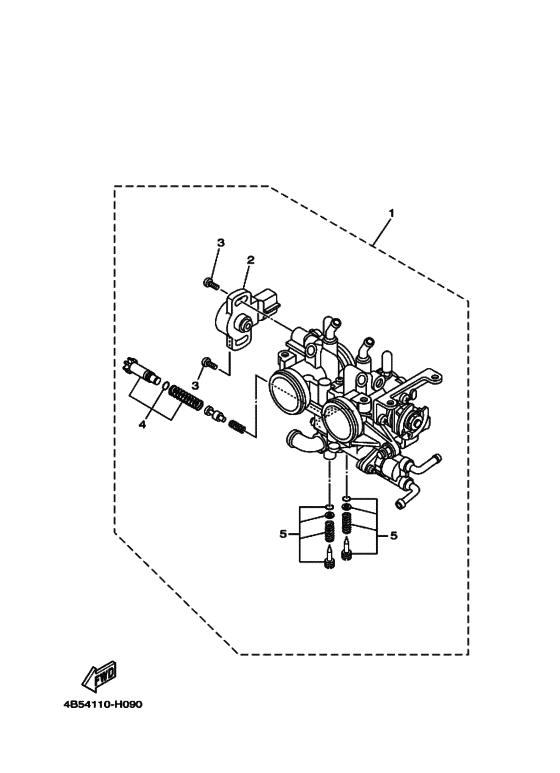

Intake 2 Diagram Yamaha XP500 T-MAX
- Year
- 2009
- Colour
- Reddish Yellow Cocktail 1 (RYC1; 0251)
- Model code
- 4B5B
- Sales region
- Europe (010)
- Engine Capacity
- 500
- Color Variant
- A
- Model
- XP500
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4B5-13750-10-00 Throttle Body Assy |
4B5-13750-10-00 |
US $764.26 |
||
|
2
|
2
8GL-85885-00-00 Throttle Sensor Assy |
8GL-85885-00-00 |
from US $67.01 |
||
| replacement | |||||
|
2
|
2
8GL-85885-01-00 THROTTLE SENSOR ASSY |
8GL-85885-01-00 |
from US $67.01 |
||
|
3
|
3
8CC-14216-10-00 Screw |
8CC-14216-10-00 |
from US $6.09 |
||
|
4
|
4
5VX-14503-00-00 Adjust Screw Set |
5VX-14503-00-00 |
from US $45.32 |
||
|
5
|
5
5JW-14104-00-00 Air Screw Set |
5JW-14104-00-00 |
from US $17.48 |
||
