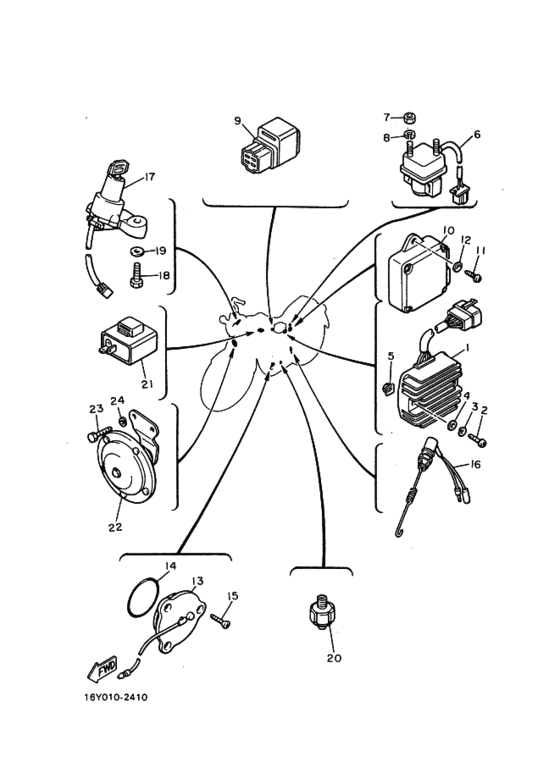

Electrical 2 Diagram Yamaha XS250 Special
- Year
- 1982
- Colour
- Super Red (SUR; 002U)
- Model code
- 17A
- Sales region
- Japan (010)
- Engine Capacity
- 250
- Color Variant
- A
- Model
- XS250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12R-81960-A0-00 Rectifier & Regulator Assyレクチフアイヤアンドレギユレ−タアセンブリ; |
12R-81960-A0-00 |
from US $333.68 |
||
| replacement | |||||
|
1
|
1
3G1-81960-A1-00 Rectifier/reg Assemblyレクチフアイヤアンドレギユレ−タアセンブリ; |
3G1-81960-A1-00 |
from US $333.68 |
||
|
2
|
2
92502-06030-00 Screw, Pan Head |
92502-06030-00 |
US $1.35 |
||
| replacement | |||||
|
2
|
2
97885-06030-00 Screw, Pan Head |
97885-06030-00 |
from US $1.52 |
||
|
3
|
3
92902-06100-00 Washer, Springワツシヤ，スプリング; |
92902-06100-00 |
US $0.99 |
||
| replacement | |||||
|
3
|
3
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.97 |
||
|
4
|
4
92902-06600-00 Washer, Plate |
92902-06600-00 |
US $1.07 |
||
| replacement | |||||
|
4
|
4
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
5
|
5
4G0-21736-00-00
Nut,plate
|
4G0-21736-00-00 |
— | ||
|
6
|
6
1J7-81940-10-00 Starter Switch Assemblyスタ−タスイツチアセンブリ; |
1J7-81940-10-00 |
US $135.70 |
||
|
7
|
7
95302-06700-00 Nut, Hexagon |
95302-06700-00 |
from US $1.42 |
||
| replacements | |||||
|
7
|
7
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.52 |
||
|
7
|
7
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.52 |
||
|
8
|
8
92902-06100-00 Washer, Springワツシヤ，スプリング; |
92902-06100-00 |
US $0.99 |
||
| replacement | |||||
|
8
|
8
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.97 |
||
|
9
|
9
12R-81950-00-00 Starter Circuit Cut-Off Relayスタ−タサ−キツトカツトオフリレ−アセンブリ; |
12R-81950-00-00 |
from US $57.75 |
||
| replacements | |||||
|
9
|
9
12R-81950-01-00 Relay Assy (12R-01)スタ−タサ−キツトカツトオフリレ−アセンブリ; |
12R-81950-01-00 |
from US $57.75 |
||
|
9
|
9
12R-81950-02-00 RELAY ASSYスタ−タサ−キツトカツトオフリレ−アセンブリ; |
12R-81950-02-00 |
from US $53.20 |
||
|
10
|
10
17A-82305-10-00
Ignitor Unit Assy
イグナイユニツトアセンブリ; |
17A-82305-10-00 |
— | ||
|
11
|
11
97701-60516-00 Screw, Tapping |
97701-60516-00 |
from US $2.23 |
||
| replacement | |||||
|
11
|
11
97780-60116-00 Screw, Tapping |
97780-60116-00 |
from US $3.73 |
||
|
12
|
12
929-02062-00-00
Washer, Plain
|
929-02062-00-00 |
— | ||
| replacement | |||||
|
12
|
12
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
13
|
13
1L9-82540-00-00 Neutral Switch Assy |
1L9-82540-00-00 |
from US $14.82 |
||
|
14
|
14
93210-29196-00 O-Ring (371) |
93210-29196-00 |
from US $1.81 |
||
|
15
|
15
987-02050-12-00
Screw, Flat Head
|
987-02050-12-00 |
— | ||
| replacement | |||||
|
15
|
15
98707-05012-00 Screw, Countersunk |
98707-05012-00 |
from US $2.21 |
||
|
16
|
16
1T2-82530-00-00 Stop Switch Assy |
1T2-82530-00-00 |
from US $30.80 |
||
| replacements | |||||
|
16
|
16
1T2-82530-02-00 Stop Switch Assembly |
1T2-82530-02-00 |
from US $29.18 |
||
|
16
|
16
1T2-82530-03-00 Stop Switch Assy |
1T2-82530-03-00 |
US $29.95 |
||
|
17
|
17
16Y-82508-80-00
Main Switch Assy
|
16Y-82508-80-00 |
— | ||
|
18
|
18
97322-06016-00 Bolt |
97322-06016-00 |
from US $1.28 |
||
| replacements | |||||
|
18
|
18
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
18
|
18
97014-06016-00 Bolt, Hexagon |
97014-06016-00 |
from US $1.39 |
||
|
18
|
18
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
19
|
19
92902-06600-00 Washer, Plate |
92902-06600-00 |
US $1.07 |
||
| replacement | |||||
|
19
|
19
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
20
|
20
341-82504-02-00
Oil Pressure Switch Assembly
|
341-82504-02-00 |
— | ||
|
21
|
21
16F-83350-20-00
Flasher Relay Assy
|
16F-83350-20-00 |
— | ||
|
22
|
22
12R-83371-20-00 Horn |
12R-83371-20-00 |
from US $62.81 |
||
| replacement | |||||
|
22
|
22
1FK-83371-02-00
Horn
|
1FK-83371-02-00 |
— | ||
|
23
|
23
97306-06014-00 Bolt |
97306-06014-00 |
from US $1.84 |
||
| replacement | |||||
|
23
|
23
97017-06014-00 Bolt(8Cp) |
97017-06014-00 |
from US $1.77 |
||
|
24
|
24
929-06061-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-06061-00-00 |
— | ||
| replacement | |||||
|
24
|
24
92907-06100-00 Washer, Springワツシヤ，スプリング; |
92907-06100-00 |
from US $0.88 |
||
