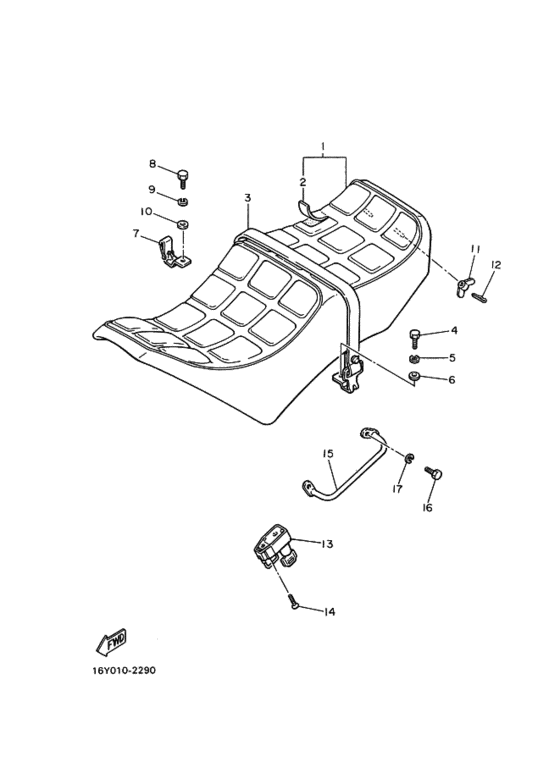

Seat Diagram Yamaha XS250 Special
- Year
- 1982
- Colour
- Super Red (SUR; 002U)
- Model code
- 17A
- Sales region
- Japan (010)
- Engine Capacity
- 250
- Color Variant
- A
- Model
- XS250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12R-24730-00-00
Double Seat Assembly (12R-24730
|
12R-24730-00-00 |
— | ||
|
2
|
2
12R-24731-00-00
Cover, Double Seat
．カバ−，ダブルシ−ト; |
12R-24731-00-00 |
— | ||
|
3
|
3
16Y-24720-00-00
Seat Band Assy
|
16Y-24720-00-00 |
— | ||
|
4
|
4
97301-08020-00 Bolt |
97301-08020-00 |
from US $2.09 |
||
| replacements | |||||
|
4
|
4
97095-08020-00 Bolt |
97095-08020-00 |
from US $3.64 |
||
|
4
|
4
97080-08020-00 Bolt(6Td) |
97080-08020-00 |
from US $4.05 |
||
|
5
|
5
929-01081-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-01081-00-00 |
— | ||
| replacement | |||||
|
5
|
5
92990-08100-00 Ybs67-8 Washer, Springワツシヤ，スプリング; |
92990-08100-00 |
from US $1.66 |
||
|
6
|
6
929-01086-00-00
Washer
ワツシヤ，プレ−ト; |
929-01086-00-00 |
— | ||
| replacement | |||||
|
6
|
6
92990-08600-00 Washer, Plateワツシヤ，プレ−ト; |
92990-08600-00 |
from US $1.66 |
||
|
7
|
7
16Y-24778-00-00
Band, Seat Fitting
|
16Y-24778-00-00 |
— | ||
|
8
|
8
97301-08020-00 Bolt |
97301-08020-00 |
from US $2.09 |
||
| replacements | |||||
|
8
|
8
97095-08020-00 Bolt |
97095-08020-00 |
from US $3.64 |
||
|
8
|
8
97080-08020-00 Bolt(6Td) |
97080-08020-00 |
from US $4.05 |
||
|
9
|
9
929-01081-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-01081-00-00 |
— | ||
| replacement | |||||
|
9
|
9
92990-08100-00 Ybs67-8 Washer, Springワツシヤ，スプリング; |
92990-08100-00 |
from US $1.66 |
||
|
10
|
10
929-01086-00-00
Washer
ワツシヤ，プレ−ト; |
929-01086-00-00 |
— | ||
| replacement | |||||
|
10
|
10
92990-08600-00 Washer, Plateワツシヤ，プレ−ト; |
92990-08600-00 |
from US $1.66 |
||
|
11
|
11
90175-06015-00 Nut, Wing |
90175-06015-00 |
US $7.79 |
||
|
12
|
12
90468-10050-00 Clip (156-83525-00) |
90468-10050-00 |
from US $1.84 |
||
|
13
|
13
4R8-21308-00-00
Helmet Hanger Assy
|
4R8-21308-00-00 |
— | ||
| replacement | |||||
|
13
|
13
26H-21308-01-00 Helmet Hanger Assy |
26H-21308-01-00 |
from US $44.85 |
||
|
14
|
14
90149-06150-00 Screw, Countersunk |
90149-06150-00 |
from US $1.98 |
||
|
15
|
15
12R-21165-00-00
Handle, Standing
|
12R-21165-00-00 |
— | ||
|
16
|
16
97306-08016-00 Bolt |
97306-08016-00 |
from US $1.42 |
||
| replacement | |||||
|
16
|
16
970-17080-16-00 Bolt |
970-17080-16-00 |
from US $1.42 |
||
|
17
|
17
929-01081-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-01081-00-00 |
— | ||
| replacement | |||||
|
17
|
17
92990-08100-00 Ybs67-8 Washer, Springワツシヤ，スプリング; |
92990-08100-00 |
from US $1.66 |
||
