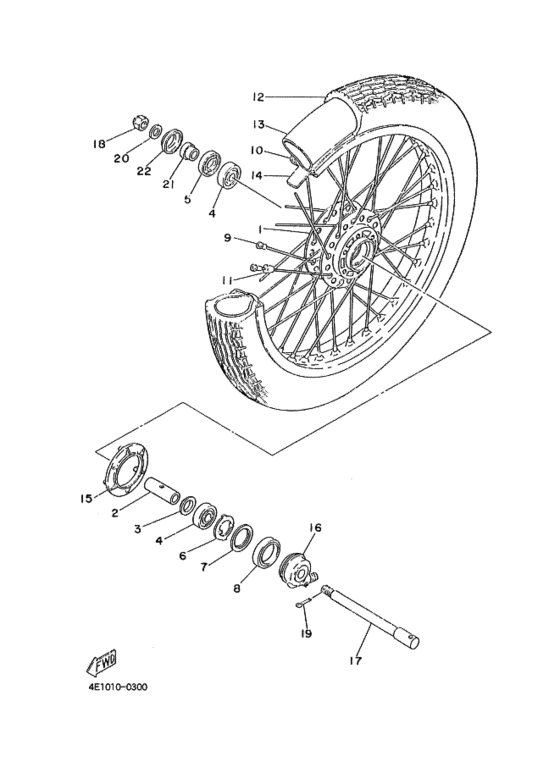

ﾌﾛﾝﾄﾎｲ-ﾙ Diagram Yamaha XS250
- Year
- 1980
- Colour
- New Midnight Blue (NMB; 00J9)
- Model code
- 4E1
- Sales region
- Japan (010)
- Engine Capacity
- 250
- Color Variant
- A
- Note
- ; スポークホイール
- Model
- XS250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1L9-25111-00-00
Hub, Front
|
1L9-25111-00-00 |
— | ||
|
2
|
2
90560-15161-00 Spacer |
90560-15161-00 |
from US $10.76 |
||
| replacement | |||||
|
2
|
2
90560-15240-00 Spacer (34L) |
90560-15240-00 |
from US $11.23 |
||
|
3
|
3
146-25115-00-00 Flange, Spacer |
146-25115-00-00 |
from US $6.23 |
||
|
4
|
4
93306-30203-00 Brg,r-B 6302Z 42Mm 27G Ntベアリング ; Ｂ６３０２Ｚ |
93306-30203-00 |
from US $20.54 |
||
| replacement | |||||
|
4
|
4
93306-30212-00 Bearingベアリング ; Ｂ６３０２Ｚ |
93306-30212-00 |
from US $16.84 |
||
|
5
|
5
931-02220-14-00 Oil Sealオイルシ−ル; |
931-02220-14-00 |
from US $8.08 |
||
|
6
|
6
341-25149-00-00 Clutch, Meter |
341-25149-00-00 |
from US $4.43 |
||
|
7
|
7
341-25846-00-00 Retainer, Clutch |
341-25846-00-00 |
from US $3.33 |
||
|
8
|
8
93105-45017-00 Oil Sealオイルシ−ル; |
93105-45017-00 |
from US $10.83 |
||
|
9
|
9
351-25104-00-00
Spoke Set, Front
|
351-25104-00-00 |
— | ||
|
10
|
10
94418-18084-00
Rim 1.85X18
リム ; １．８５−１８ |
94418-18084-00 |
— | ||
|
11
|
11
156-25398-00-00
Balancer, Wheel (15G)
ＵＮ |
156-25398-00-00 |
— | ||
| replacement | |||||
|
11
|
11
3HT-25398-00-00 Balancer, Wheel (15G)ＵＮ |
3HT-25398-00-00 |
from US $8.08 |
||
|
12
|
12
94130-18243-00
Tire (3.00-18)
タイヤ ; ３．００−１８; ＵＲ |
94130-18243-00 |
— | ||
|
12
|
12
94130-18566-00
Tire (3.00-18)
タイヤ ; ３．００−１８; ＵＲ |
94130-18566-00 |
— | ||
|
13
|
13
94227-18118-00 Tube (2.75-18)チユ−ブ ; ２．７５−１８; ＵＲ |
94227-18118-00 |
US $27.38 |
||
| replacement | |||||
|
13
|
13
94227-18195-00 Tubeチユ−ブ ; ２．７５−１８; ＵＲ |
94227-18195-00 |
US $37.53 |
||
|
13
|
13
94230-18084-00 Tube (3.00-18)チユ−ブ ; ３．００−１８; ＵＲ |
94230-18084-00 |
US $27.38 |
||
| replacement | |||||
|
13
|
13
94227-18195-00 Tubeチユ−ブ ; ３．００−１８; ＵＲ |
94227-18195-00 |
US $37.53 |
||
|
14
|
14
94325-18064-00 Band, Rim (2.50-18)バンド，リム ; ２．５０−１８; ＵＲ |
94325-18064-00 |
from US $4.39 |
||
| replacement | |||||
|
14
|
14
94340-18086-00 Band, Rim (2.50-18)バンド，リム ; ２．５０−１８; ＵＲ |
94340-18086-00 |
from US $4.72 |
||
|
14
|
14
94330-18087-00 Band, Rim (2.15-18)バンド，リム ; ３．００−１８; ＵＲ ＢＳ |
94330-18087-00 |
from US $4.39 |
||
| replacement | |||||
|
14
|
14
94340-18086-00 Band, Rim (2.50-18)バンド，リム ; ３．００−１８; ＵＲ ＢＳ |
94340-18086-00 |
from US $4.72 |
||
|
15
|
15
1L9-25847-00-00
Cover, Housing
|
1L9-25847-00-00 |
— | ||
|
16
|
16
1L9-25190-00-00 Gear Unit Asy |
1L9-25190-00-00 |
from US $85.38 |
||
| replacement | |||||
|
16
|
16
3M5-25190-10-00 Gear Unit Assy |
3M5-25190-10-00 |
from US $85.38 |
||
|
17
|
17
1L9-15181-00-00
Pin, Dowel
アクスル，ホイ−ル; |
1L9-15181-00-00 |
— | ||
|
18
|
18
90171-14006-00 Nut, Castle |
90171-14006-00 |
US $9.07 |
||
| replacement | |||||
|
18
|
18
90171-14056-00 Nut, Castle |
90171-14056-00 |
from US $7.42 |
||
|
19
|
19
914-01300-30-00
Pin,cotter
|
914-01300-30-00 |
— | ||
| replacement | |||||
|
19
|
19
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.39 |
||
|
20
|
20
92901-14200-00 Washer, Plainワツシヤ，プレ−ン; |
92901-14200-00 |
US $1.42 |
||
| replacement | |||||
|
20
|
20
92990-14200-00 Washer, Plainワツシヤ，プレ−ン; |
92990-14200-00 |
from US $1.66 |
||
|
21
|
21
90387-15550-00 Collar |
90387-15550-00 |
from US $12.18 |
||
|
22
|
22
401-25367-00-00 Cover, Hub Dust |
401-25367-00-00 |
from US $8.08 |
||
