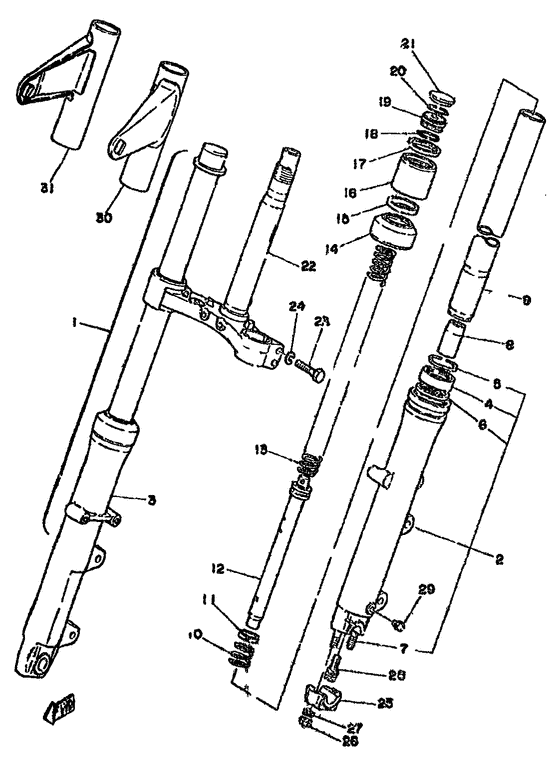

Front fork Diagram Yamaha XS500
- Year
- 1976
- Model code
- 1H2
- Sales region
- Europe (General) (999)
- Engine Capacity
- 500
- Model
- XS500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1H2-23101-30-00
Front Fork Assy
|
1H2-23101-30-00 |
— | ||
|
1
|
1
1J3-23101-00-00
Front Fork Assy
|
1J3-23101-00-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
1J3-23126-01-00
Tube, Outer 1
|
1J3-23126-01-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
3
|
3
1J3-23136-01-00
Tube, Outer 2
|
1J3-23136-01-00 |
— | ||
| replacement | |||||
|
3
|
3
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
4
|
4
1J3-23145-00-00 Oil Seal |
1J3-23145-00-00 |
from US $27.04 |
||
| replacement | |||||
|
4
|
4
1UA-23145-00-00 Oil Seal |
1UA-23145-00-00 |
from US $33.72 |
||
|
5
|
5
1J3-23156-00-00 Ring, Snap |
1J3-23156-00-00 |
from US $6.52 |
||
| replacement | |||||
|
5
|
5
34X-23156-00-00 Ring, Snap |
34X-23156-00-00 |
from US $6.52 |
||
|
6
|
6
1J7-23147-00-00
Seal, Spacer
|
1J7-23147-00-00 |
— | ||
|
7
|
7
1E7-23128-00-00
Bolt, Axle Holder
|
1E7-23128-00-00 |
— | ||
| replacement | |||||
|
7
|
7
90116-08260-00
Bolt, Stud
|
90116-08260-00 |
— | ||
|
8
|
8
1J3-23166-00-00
Spacer, Oil Lock
|
1J3-23166-00-00 |
— | ||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
9
|
9
1J3-23110-01-00
Inner Tube 1
|
1J3-23110-01-00 |
— | ||
| replacement | |||||
|
9
|
9
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
10
|
10
1J3-23151-00-00
Spring, Rebound
|
1J3-23151-00-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
11
|
11
1J3-23157-00-00
Ring, Piston Frtfrk
|
1J3-23157-00-00 |
— | ||
| replacement | |||||
|
11
|
11
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
12
|
12
1J3-23170-60-00
Cylinder Comp., Front Fork
|
1J3-23170-60-00 |
— | ||
| replacement | |||||
|
12
|
12
1J3-23170-61-00
Cylinder, Frtfrk
|
1J3-23170-61-00 |
— | ||
|
13
|
13
1J3-23141-60-00
Spring, Front Fork
|
1J3-23141-60-00 |
— | ||
| replacement | |||||
|
13
|
13
1J3-23141-61-00
Spring, Front Fork (1J3-23141
|
1J3-23141-61-00 |
— | ||
|
14
|
14
1J3-23144-00-00 Seal, Dust |
1J3-23144-00-00 |
from US $22.88 |
||
| replacement | |||||
|
14
|
14
29L-23144-01-00 Seal, Dust |
29L-23144-01-00 |
from US $27.40 |
||
|
15
|
15
1J3-23163-00-00
Gasket
|
1J3-23163-00-00 |
— | ||
| replacement | |||||
|
15
|
15
23W-23163-00-00
Gasket
|
23W-23163-00-00 |
— | ||
|
16
|
16
1J3-23116-00-00
Guide, Cover Lower
|
1J3-23116-00-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
17
|
17
1J3-23115-00-00
Guide, Cover Upper
|
1J3-23115-00-00 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
18
|
18
1J3-23114-00-00
Gasket
|
1J3-23114-00-00 |
— | ||
| replacement | |||||
|
18
|
18
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
19
|
19
1J3-23111-00-00
Bolt, Cap
|
1J3-23111-00-00 |
— | ||
| replacement | |||||
|
19
|
19
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
20
|
20
1J3-23183-01-00
Ring, Stopper
|
1J3-23183-01-00 |
— | ||
|
21
|
21
1J3-23168-00-00
Cap, Front Fork
|
1J3-23168-00-00 |
— | ||
|
22
|
22
1H2-23340-30-33
Under Bracket Comp
|
1H2-23340-30-33 |
— | ||
| replacement | |||||
|
22
|
22
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
22
|
22
1J3-23340-00-33
Under Bracket
|
1J3-23340-00-33 |
— | ||
| replacement | |||||
|
22
|
22
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
23
|
23
97323-08040-00
Bolt
|
97323-08040-00 |
— | ||
| replacements | |||||
|
23
|
23
97014-08040-00 Bolt, Hexagon |
97014-08040-00 |
from US $2.35 |
||
|
23
|
23
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
24
|
24
929-01081-00-00
Washer, Spring
|
929-01081-00-00 |
— | ||
| replacement | |||||
|
24
|
24
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
25
|
25
1J3-23167-00-00
Holder, Axle
|
1J3-23167-00-00 |
— | ||
|
26
|
26
90185-08054-00 Nut, Self-Locking |
90185-08054-00 |
from US $4.53 |
||
| replacements | |||||
|
26
|
26
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.20 |
||
|
26
|
26
901-85080-89-00
Nut, Self-Locking
|
901-85080-89-00 |
— | ||
|
27
|
27
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
27
|
27
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
28
|
28
1E7-23181-00-00 Bolt, Hexagon Socket Head |
1E7-23181-00-00 |
from US $5.29 |
||
| replacement | |||||
|
28
|
28
3M7-23181-00-00 Bolt, Hexagon Socket Head |
3M7-23181-00-00 |
from US $8.08 |
||
|
29
|
29
1E7-23119-00-00
Plug, Drain
|
1E7-23119-00-00 |
— | ||
|
30
|
30
1J3-23121-00-33
Cover, Upper 1
|
1J3-23121-00-33 |
— | ||
|
31
|
31
1J3-23131-00-33
Cover, Upper 2
|
1J3-23131-00-33 |
— | ||
