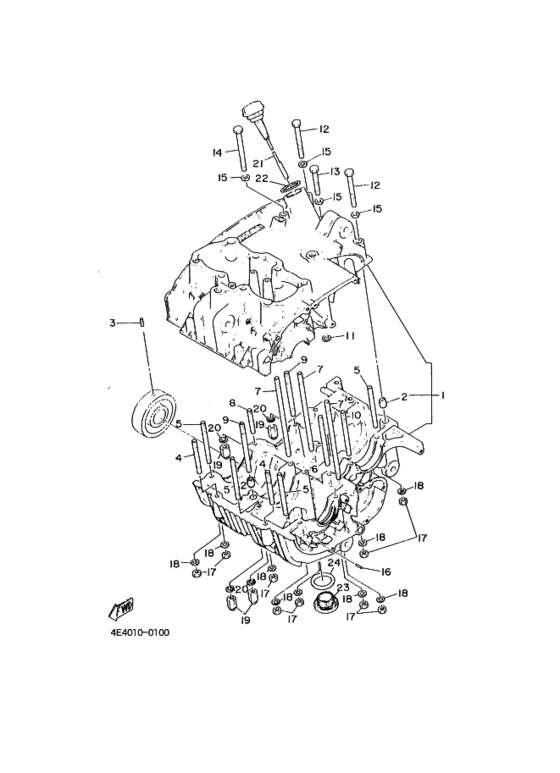

Crankcase Diagram Yamaha XS650
- Year
- 1980
- Colour
- Black Red (BLR; 002J)
- Model code
- 4E40
- Sales region
- Japan (010)
- Engine Capacity
- 650
- Color Variant
- A
- Model
- XS650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
306-15100-03-00
Crankcase Assembly
クランクケースアセンブリ; |
306-15100-03-00 |
— | ||
|
2
|
2
918-30220-16-00 Pin, Dowel．ピン，ダウエル; |
918-30220-16-00 |
from US $1.42 |
||
| replacement | |||||
|
2
|
2
99530-12016-00 Pin, Dowel．ピン，ダウエル; |
99530-12016-00 |
from US $1.52 |
||
|
3
|
3
93605-12069-00
Pin, Dowel
|
93605-12069-00 |
— | ||
|
4
|
4
90116-08196-00
Bolt, Stud
|
90116-08196-00 |
— | ||
| replacements | |||||
|
4
|
4
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
4
|
4
90116-08371-00
Bolt, Stud
|
90116-08371-00 |
— | ||
|
4
|
4
90116-08371-00
Bolt, Stud
|
90116-08371-00 |
— | ||
|
5
|
5
90116-08064-00 Bolt, Stud |
90116-08064-00 |
from US $4.04 |
||
|
6
|
6
90116-08232-00 Bolt, Stud (1A1) |
90116-08232-00 |
from US $4.04 |
||
|
7
|
7
90116-08199-00
Bolt, Stud
|
90116-08199-00 |
— | ||
|
8
|
8
90116-08047-00
Bolt, Stud (306-15192-00)
|
90116-08047-00 |
— | ||
|
9
|
9
90116-08066-00
Bolt, Stud
|
90116-08066-00 |
— | ||
|
10
|
10
90116-08055-00 Bolt, Stud |
90116-08055-00 |
from US $5.10 |
||
| replacement | |||||
|
10
|
10
90116-08393-00 Bolt, Stud |
90116-08393-00 |
from US $5.10 |
||
|
11
|
11
256-15395-00-00
Gasket, Oil Sealing
ガスケツト，オイルシーリング; |
256-15395-00-00 |
— | ||
|
12
|
12
97323-08075-00 Bolt (447) |
97323-08075-00 |
from US $5.29 |
||
| replacement | |||||
|
12
|
12
97013-08075-00 Bolt (6K8) |
97013-08075-00 |
from US $6.09 |
||
|
13
|
13
97313-08055-00 Bolt (661) |
97313-08055-00 |
from US $4.12 |
||
| replacement | |||||
|
13
|
13
97013-08055-00 Bolt |
97013-08055-00 |
from US $3.55 |
||
|
14
|
14
97323-08090-00
Bolt
|
97323-08090-00 |
— | ||
| replacement | |||||
|
14
|
14
97023-08090-00
Bolt (97321-08090)
|
97023-08090-00 |
— | ||
|
15
|
15
929-01082-00-00
Washer, Plain
ワツシヤ，プレーン; |
929-01082-00-00 |
— | ||
| replacements | |||||
|
15
|
15
92990-08200-00 Washer, Plainワツシヤ，プレーン; |
92990-08200-00 |
from US $1.18 |
||
|
15
|
15
92907-08200-00 Washerワツシヤ，プレーン; |
92907-08200-00 |
from US $1.36 |
||
|
16
|
16
93603-14026-00 Pin, Dowel |
93603-14026-00 |
from US $2.08 |
||
|
17
|
17
95301-08600-00 Nut Hexagon (738) |
95301-08600-00 |
from US $1.28 |
||
| replacements | |||||
|
17
|
17
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
17
|
17
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
|
18
|
18
929-01082-00-00
Washer, Plain
ワツシヤ，プレーン; |
929-01082-00-00 |
— | ||
| replacements | |||||
|
18
|
18
92990-08200-00 Washer, Plainワツシヤ，プレーン; |
92990-08200-00 |
from US $1.18 |
||
|
18
|
18
92907-08200-00 Washerワツシヤ，プレーン; |
92907-08200-00 |
from US $1.36 |
||
|
19
|
19
90176-08019-00
Nut, Crown
|
90176-08019-00 |
— | ||
|
20
|
20
90430-08143-00 Gasket |
90430-08143-00 |
from US $1.81 |
||
|
21
|
21
256-15362-02-00
Plug, Oil Level
|
256-15362-02-00 |
— | ||
|
22
|
22
90430-29050-00 Gasket |
90430-29050-00 |
from US $2.83 |
||
| replacement | |||||
|
22
|
22
90430-29114-00 Gasket |
90430-29114-00 |
from US $2.83 |
||
|
23
|
23
256-15351-00-00
Plug, Drain
プラグ，ドレーン; |
256-15351-00-00 |
— | ||
|
24
|
24
256-15353-00-00 Gasket, Drainガスケツト，ドレーン; |
256-15353-00-00 |
from US $15.44 |
||
