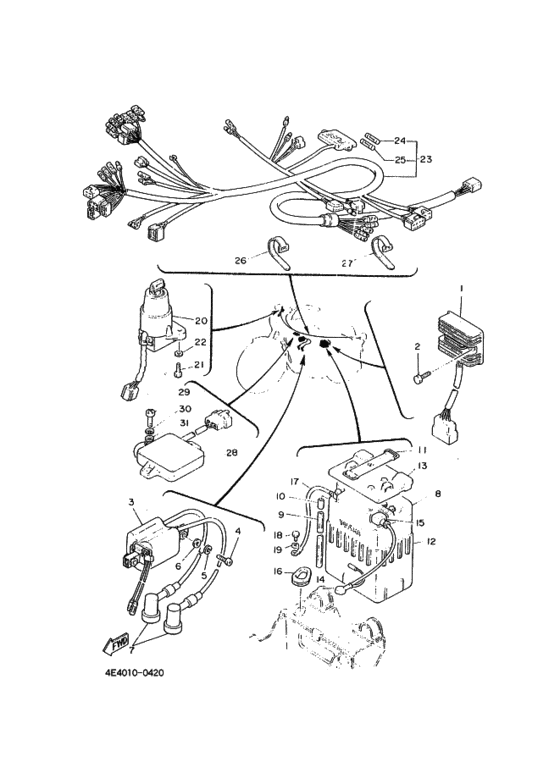

Electrical 1 Diagram Yamaha XS650
- Year
- 1980
- Colour
- Black Red (BLR; 002J)
- Model code
- 4E40
- Sales region
- Japan (010)
- Engine Capacity
- 650
- Color Variant
- A
- Model
- XS650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3G1-81960-50-00 Rectifier & Regulator Assyレクチフアイヤアンドレギユレータアセンブリ; |
3G1-81960-50-00 |
from US $333.68 |
||
| replacement | |||||
|
1
|
1
3G1-81960-A1-00 Rectifier/reg Assemblyレクチフアイヤアンドレギユレータアセンブリ; |
3G1-81960-A1-00 |
from US $333.68 |
||
|
2
|
2
90109-06558-00
Bolt
|
90109-06558-00 |
— | ||
|
3
|
3
3G1-82310-60-00
Ignition Coil Assembly
|
3G1-82310-60-00 |
— | ||
|
4
|
4
92501-06030-00 Screw, Pan Head |
92501-06030-00 |
from US $1.35 |
||
| replacement | |||||
|
4
|
4
97885-06030-00 Screw, Pan Head |
97885-06030-00 |
from US $1.52 |
||
|
5
|
5
92901-06100-00 Washer, Springワツシヤ，スプリング; |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
5
|
5
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.97 |
||
|
6
|
6
929-01066-00-00
Washer
ワツシヤ，プレート; |
929-01066-00-00 |
— | ||
| replacements | |||||
|
6
|
6
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.18 |
||
|
6
|
6
902-01061-A5-00 Washer, Plate (4H7)ワツシヤ，プレート; |
902-01061-A5-00 |
from US $2.08 |
||
|
6
|
6
92907-06600-00 Washer, Plateワツシヤ，プレート; |
92907-06600-00 |
from US $1.18 |
||
|
7
|
7
256-82370-00-00 Plug Cap Assy |
256-82370-00-00 |
from US $32.87 |
||
| replacements | |||||
|
7
|
7
4BP-82370-00-00 Plug Cap Assy |
4BP-82370-00-00 |
from US $38.34 |
||
|
7
|
7
4BP-82370-01-00 PLUG CAP ASSY |
4BP-82370-01-00 |
from US $38.34 |
||
|
8
|
8
447-82110-T0-00
Battery Assy (Yuasa Yb14L-A2)
バツテリアセンブリ ; ＹＢ１４Ｌ−Ａ２ |
447-82110-T0-00 |
— | ||
| replacements | |||||
|
8
|
8
YB1-4LA20-00-00
Bat Yb14L-A2 (Cb14L-A2) Yu
バツテリアセンブリ ; ＹＢ１４Ｌ−Ａ２ |
YB1-4LA20-00-00 |
— | ||
|
8
|
8
CB1-4LA20-00-00
element
バツテリアセンブリ ; ＹＢ１４Ｌ−Ａ２ |
CB1-4LA20-00-00 |
— | ||
|
9
|
9
90445-08048-00 Hose (L1500)ホース; |
90445-08048-00 |
from US $10.91 |
||
| replacement | |||||
|
9
|
9
90445-084J0-00 Pipeホース; |
90445-084J0-00 |
from US $8.76 |
||
|
10
|
10
90386-07043-00
Bush, Spec''l Nylon
|
90386-07043-00 |
— | ||
|
11
|
11
120-82131-00-00
Band, Battery
|
120-82131-00-00 |
— | ||
| replacement | |||||
|
11
|
11
7H3-82131-00-00 Band, Battery |
7H3-82131-00-00 |
from US $5.06 |
||
|
12
|
12
3G1-82122-00-00
Seat, Battery
シート，バツテリ; |
3G1-82122-00-00 |
— | ||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
シート，バツテリ; |
999-99999-99-00 |
— | ||
|
13
|
13
2M0-82129-00-00
Cover, Battery
カバー，バツテリ; |
2M0-82129-00-00 |
— | ||
|
14
|
14
447-82115-01-00
Wire, Plus Lead
ワイヤ，プラスリード; |
447-82115-01-00 |
— | ||
|
15
|
15
447-82119-00-00
Cover, Lead Wire
カバー，リードワイヤ; |
447-82119-00-00 |
— | ||
|
16
|
16
447-82128-00-00
Bracket, Battery
グロメツト; |
447-82128-00-00 |
— | ||
|
17
|
17
447-82116-00-00
Wire, Minus Lead
ワイヤ，マイナスリード; |
447-82116-00-00 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
ワイヤ，マイナスリード; |
999-99999-99-00 |
— | ||
|
18
|
18
97301-06012-00 Bolt |
97301-06012-00 |
from US $3.12 |
||
| replacements | |||||
|
18
|
18
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
18
|
18
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
|
19
|
19
92901-06100-00 Washer, Springワツシヤ，スプリング; |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
19
|
19
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.97 |
||
|
20
|
20
2K1-82508-80-00 Main Switch Assy |
2K1-82508-80-00 |
US $138.16 |
||
|
21
|
21
97322-06016-00 Bolt |
97322-06016-00 |
from US $1.28 |
||
| replacements | |||||
|
21
|
21
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
21
|
21
97014-06016-00 Bolt, Hexagon |
97014-06016-00 |
from US $1.39 |
||
|
21
|
21
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
22
|
22
92902-06600-00 Washer, Plate |
92902-06600-00 |
US $1.07 |
||
| replacement | |||||
|
22
|
22
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
23
|
23
4E4-82590-40-00
Wire Harness Assy
ワイヤハーネスアセンブリ; |
4E4-82590-40-00 |
— | ||
|
24
|
24
1A0-82161-00-00 Fuse (12V-20A)．フユーズ ; １２Ｖ−２０Ａ |
1A0-82161-00-00 |
from US $11.96 |
||
|
25
|
25
1A0-82151-00-00 Fuse (12V-10A)．フユーズ ; １２Ｖ−１０Ａ |
1A0-82151-00-00 |
from US $4.96 |
||
|
26
|
26
447-82591-00-00 Band, Switch Cord |
447-82591-00-00 |
from US $1.56 |
||
| replacement | |||||
|
26
|
26
25G-83936-01-00 Band, Switch Cord |
25G-83936-01-00 |
from US $1.56 |
||
|
27
|
27
435-13474-00-00 Band |
435-13474-00-00 |
US $2.27 |
||
| replacements | |||||
|
27
|
27
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
27
|
27
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
27
|
27
341-26397-01-00
Band
|
341-26397-01-00 |
— | ||
|
27
|
27
341-26397-01-00
Band
|
341-26397-01-00 |
— | ||
|
28
|
28
3G1-82305-10-00
Ignitor Unit Assy
|
3G1-82305-10-00 |
— | ||
| replacement | |||||
|
28
|
28
4M4-82305-10-00
Ignitor Unit Assembly 1
|
4M4-82305-10-00 |
— | ||
|
29
|
29
92501-06025-00 Screw, Pan Head |
92501-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
29
|
29
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
30
|
30
92901-06100-00 Washer, Springワツシヤ，スプリング; |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
30
|
30
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.97 |
||
|
31
|
31
90201-06067-00 Washer, Plateワツシヤ，プレート; |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
31
|
31
90201-06380-00 Washer Plainワツシヤ，プレート; |
90201-06380-00 |
from US $0.86 |
||
