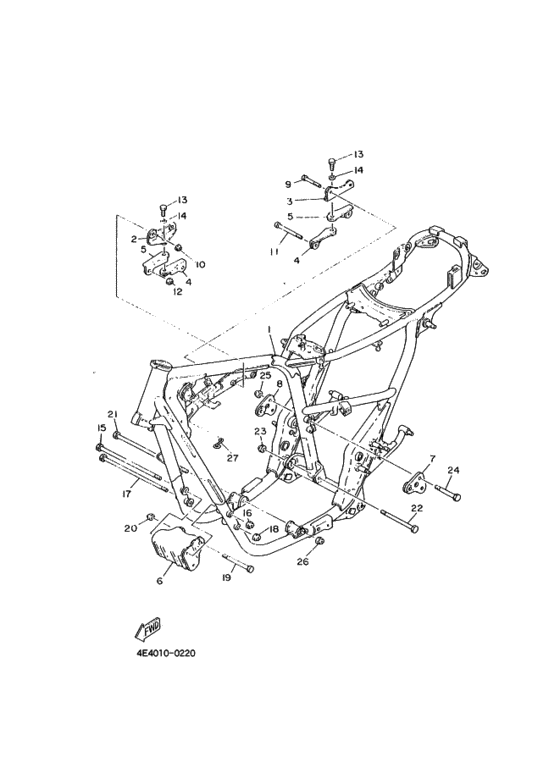

Frame Diagram Yamaha XS650
- Year
- 1980
- Colour
- Black Red (BLR; 002J)
- Model code
- 4E40
- Sales region
- Japan (010)
- Engine Capacity
- 650
- Color Variant
- A
- Model
- XS650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4E4-21110-00-33
Frame Comp
フレームコンプリート; ヤマハブラツク |
4E4-21110-00-33 |
— | ||
|
2
|
2
447-21314-00-00
Stay, Engine 1
ステー，エンジン １; |
447-21314-00-00 |
— | ||
|
3
|
3
447-21315-00-00
Stay, Engine 2
ステー，エンジン ２; |
447-21315-00-00 |
— | ||
|
4
|
4
256-21316-01-00
Stay, Engine 3
ステー，エンジン ３; |
256-21316-01-00 |
— | ||
|
5
|
5
256-21317-01-00
Stay, Engine 4
ステー，エンジン ４; |
256-21317-01-00 |
— | ||
|
6
|
6
447-21318-00-93
Stay, Engine Front
ステー，エンジンフロント; クロムメツキ |
447-21318-00-93 |
— | ||
| replacement | |||||
|
6
|
6
447-21318-00-98
Stay, Engine 5
ステー，エンジンフロント; クロムメツキ |
447-21318-00-98 |
— | ||
|
7
|
7
447-21319-00-00
Stay, Engine 6
ステー，エンジン ６; |
447-21319-00-00 |
— | ||
|
8
|
8
447-21387-00-00
Stay, Engine 7
ステー，エンジン ７; |
447-21387-00-00 |
— | ||
|
9
|
9
95821-08055-00 Bolt, Flange |
95821-08055-00 |
from US $1.42 |
||
| replacement | |||||
|
9
|
9
95817-08055-00 Bolt, Flange |
95817-08055-00 |
from US $1.33 |
||
|
10
|
10
90185-08054-00 Nut, Self-Locking |
90185-08054-00 |
from US $4.53 |
||
| replacements | |||||
|
10
|
10
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.20 |
||
|
10
|
10
901-85080-89-00
Nut, Self-Locking
|
901-85080-89-00 |
— | ||
|
11
|
11
95826-08090-00 Bolt, Flange |
95826-08090-00 |
from US $2.25 |
||
| replacement | |||||
|
11
|
11
95817-08090-00 Bolt, Flange |
95817-08090-00 |
from US $5.24 |
||
|
12
|
12
901-85080-90-00 Nut, Self-Locking |
901-85080-90-00 |
US $4.53 |
||
| replacement | |||||
|
12
|
12
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.20 |
||
|
13
|
13
95821-10025-00 Bolt, Flange |
95821-10025-00 |
from US $1.07 |
||
| replacement | |||||
|
13
|
13
95817-10025-00 Bolt, Flange |
95817-10025-00 |
from US $1.18 |
||
|
14
|
14
92901-10100-00 Washer, Springワツシヤ，スプリング; |
92901-10100-00 |
from US $1.50 |
||
| replacement | |||||
|
14
|
14
92990-10100-00 Ybs67-10 Washer, Springワツシヤ，スプリング; |
92990-10100-00 |
from US $1.66 |
||
|
15
|
15
90105-10043-00 Bolt, Flangeボルト，ワツシヤベースドヘツド; |
90105-10043-00 |
from US $7.85 |
||
| replacement | |||||
|
15
|
15
90105-10139-00
Bolt, Washer Based
ボルト，ワツシヤベースドヘツド; |
90105-10139-00 |
— | ||
|
16
|
16
90185-10035-00 Nut, Self-Locking |
90185-10035-00 |
from US $5.24 |
||
| replacement | |||||
|
16
|
16
90185-10060-00 Nut, Self-Locking |
90185-10060-00 |
from US $5.58 |
||
|
17
|
17
90105-10044-00 Bolt, Flangeボルト，ワツシヤベースドヘツド; |
90105-10044-00 |
from US $10.75 |
||
| replacement | |||||
|
17
|
17
90105-10N53-00 Bolt, Flangeボルト，ワツシヤベースドヘツド; |
90105-10N53-00 |
from US $12.06 |
||
|
18
|
18
90185-10035-00 Nut, Self-Locking |
90185-10035-00 |
from US $5.24 |
||
| replacement | |||||
|
18
|
18
90185-10060-00 Nut, Self-Locking |
90185-10060-00 |
from US $5.58 |
||
|
19
|
19
90105-10039-00 Bolt, Flangeボルト，ワツシヤベースドヘツド; |
90105-10039-00 |
from US $5.81 |
||
| replacements | |||||
|
19
|
19
95817-10100-00 Bolt, Flangeボルト，ワツシヤベースドヘツド; |
95817-10100-00 |
from US $4.25 |
||
|
19
|
19
90105-10747-00 Bolt, Washer Based(1Ru)ボルト，ワツシヤベースドヘツド; |
90105-10747-00 |
from US $5.78 |
||
|
20
|
20
90185-10035-00 Nut, Self-Locking |
90185-10035-00 |
from US $5.24 |
||
| replacement | |||||
|
20
|
20
90185-10060-00 Nut, Self-Locking |
90185-10060-00 |
from US $5.58 |
||
|
21
|
21
90106-10029-00
Bolt, Dome Head
|
90106-10029-00 |
— | ||
|
22
|
22
90105-10041-00 Bolt, Flangeボルト，ワツシヤベースドヘツド; |
90105-10041-00 |
from US $7.24 |
||
| replacement | |||||
|
22
|
22
90109-101A0-00 Bolt(30W)ボルト，ワツシヤベースドヘツド; |
90109-101A0-00 |
from US $9.21 |
||
|
23
|
23
90185-10035-00 Nut, Self-Locking |
90185-10035-00 |
from US $5.24 |
||
| replacement | |||||
|
23
|
23
90185-10060-00 Nut, Self-Locking |
90185-10060-00 |
from US $5.58 |
||
|
24
|
24
95826-10070-00 Bolt, Flange |
95826-10070-00 |
US $2.69 |
||
|
25
|
25
90185-10091-00 Nut, Self-Locking |
90185-10091-00 |
from US $5.10 |
||
|
26
|
26
90185-10060-00 Nut, Self-Locking |
90185-10060-00 |
from US $5.58 |
||
|
27
|
27
90465-20138-00
Clamp
|
90465-20138-00 |
— | ||
