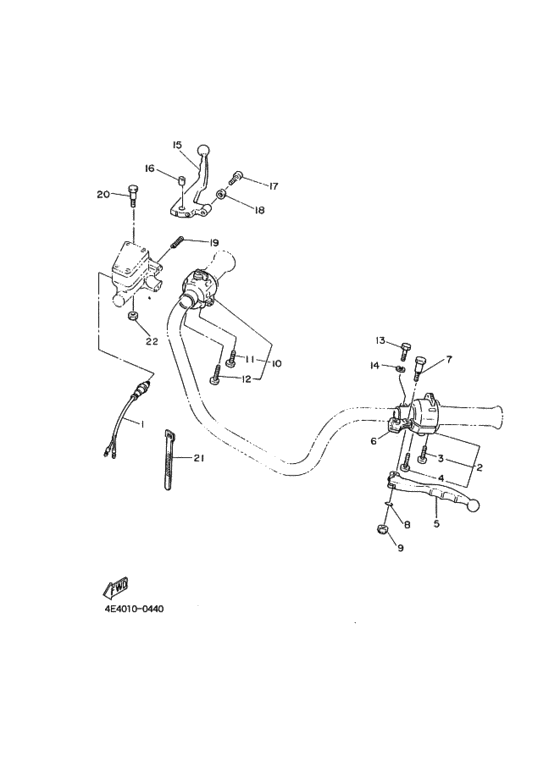

Handle switch & lever Diagram Yamaha XS650
- Year
- 1980
- Colour
- Black Red (BLR; 002J)
- Model code
- 4E40
- Sales region
- Japan (010)
- Engine Capacity
- 650
- Color Variant
- A
- Model
- XS650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1A0-83980-30-00
Front Stop Switch Assy
|
1A0-83980-30-00 |
— | ||
| replacement | |||||
|
1
|
1
26H-83980-00-00 Front Stop Switch Assy |
26H-83980-00-00 |
from US $64.66 |
||
|
2
|
2
2M1-83972-40-98
Switch, Handle 4
ツヤケシブラツク |
2M1-83972-40-98 |
— | ||
|
3
|
3
985-01050-30-00
Screw, Pan Head
．スクリユ，パンヘツド; |
985-01050-30-00 |
— | ||
| replacements | |||||
|
3
|
3
98517-05030-00 Screw, Pan Head．スクリユ，パンヘツド; |
98517-05030-00 |
from US $1.22 |
||
|
3
|
3
98580-05530-00 Screw, Pan Head．スクリユ，パンヘツド; |
98580-05530-00 |
from US $2.27 |
||
|
4
|
4
985-01050-35-00
Screw, Pan Head
．スクリユ，パンヘツド; |
985-01050-35-00 |
— | ||
| replacements | |||||
|
4
|
4
98507-05035-00 Screw, Pan Head．スクリユ，パンヘツド; |
98507-05035-00 |
from US $1.42 |
||
|
4
|
4
98580-05035-00 Screw, Pan Head．スクリユ，パンヘツド; |
98580-05035-00 |
from US $3.40 |
||
|
5
|
5
2H7-83912-00-00 Lever 1レバー １; |
2H7-83912-00-00 |
US $19.69 |
||
| replacement | |||||
|
5
|
5
2H0-83912-31-00 Lever 1レバー １; |
2H0-83912-31-00 |
from US $19.69 |
||
|
6
|
6
341-82911-00-00 Holder, Lever 1ホルダー，レバー １; |
341-82911-00-00 |
from US $29.95 |
||
|
7
|
7
2H7-83945-00-00
Bolt
ボルト，レバー; |
2H7-83945-00-00 |
— | ||
| replacements | |||||
|
7
|
7
90109-06799-00 Bolt (2Yk1)ボルト，レバー; |
90109-06799-00 |
from US $3.60 |
||
|
7
|
7
90109-06798-00 Boltボルト，レバー; |
90109-06798-00 |
from US $2.36 |
||
|
8
|
8
93210-11368-00 O-Ring (2H7) |
93210-11368-00 |
from US $3.54 |
||
|
9
|
9
956-01061-00-00
Nut, U
ナツト，ｕ; |
956-01061-00-00 |
— | ||
| replacement | |||||
|
9
|
9
95617-06100-00 Nut, Uナツト，ｕ; |
95617-06100-00 |
from US $1.39 |
||
|
10
|
10
2M1-83963-40-98
Switch, Handle 3
ツヤケシブラツク |
2M1-83963-40-98 |
— | ||
| replacement | |||||
|
10
|
10
2K1-83963-40-98
Switch, Handle
ツヤケシブラツク |
2K1-83963-40-98 |
— | ||
|
11
|
11
985-01050-30-00
Screw, Pan Head
．スクリユ，パンヘツド; |
985-01050-30-00 |
— | ||
| replacements | |||||
|
11
|
11
98517-05030-00 Screw, Pan Head．スクリユ，パンヘツド; |
98517-05030-00 |
from US $1.22 |
||
|
11
|
11
98580-05530-00 Screw, Pan Head．スクリユ，パンヘツド; |
98580-05530-00 |
from US $2.27 |
||
|
12
|
12
985-01050-40-00
Screw, Pan Head
．スクリユ，パンヘツド; |
985-01050-40-00 |
— | ||
| replacements | |||||
|
12
|
12
98507-05040-00 Screw, Pan Head．スクリユ，パンヘツド; |
98507-05040-00 |
from US $1.42 |
||
|
12
|
12
98580-05540-00 Screw,panhead (Eg9)．スクリユ，パンヘツド; |
98580-05540-00 |
from US $3.12 |
||
|
13
|
13
97306-06022-00 Bolt |
97306-06022-00 |
from US $1.56 |
||
| replacement | |||||
|
13
|
13
97007-06022-00 Bolt |
97007-06022-00 |
from US $1.56 |
||
|
14
|
14
929-06061-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-06061-00-00 |
— | ||
| replacement | |||||
|
14
|
14
92907-06100-00 Washer, Springワツシヤ，スプリング; |
92907-06100-00 |
from US $0.88 |
||
|
15
|
15
2H7-83922-00-00 Lever 2レバー ２; |
2H7-83922-00-00 |
from US $24.53 |
||
| replacement | |||||
|
15
|
15
2H7-83922-20-00 Lever Rレバー ２; |
2H7-83922-20-00 |
from US $39.10 |
||
|
16
|
16
90386-08094-00
Bush, Spec''l Nylon
|
90386-08094-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
17
|
17
90149-06131-00 Screw |
90149-06131-00 |
from US $1.81 |
||
|
18
|
18
90170-06010-00 Nut |
90170-06010-00 |
from US $2.08 |
||
|
19
|
19
90501-10312-00 Spring, Compression |
90501-10312-00 |
from US $1.66 |
||
|
20
|
20
90109-06465-00 Bolt |
90109-06465-00 |
from US $1.42 |
||
| replacement | |||||
|
20
|
20
90109-06577-00 Bolt |
90109-06577-00 |
from US $1.52 |
||
|
21
|
21
437-83936-00-00
Band, Switch Cord
バンド，スイツチコード; |
437-83936-00-00 |
— | ||
| replacement | |||||
|
21
|
21
437-83936-01-00 Band, Switch Cordバンド，スイツチコード; |
437-83936-01-00 |
from US $1.81 |
||
|
22
|
22
956-01061-00-00
Nut, U
ナツト，ｕ; |
956-01061-00-00 |
— | ||
| replacement | |||||
|
22
|
22
95617-06100-00 Nut, Uナツト，ｕ; |
95617-06100-00 |
from US $1.39 |
||
