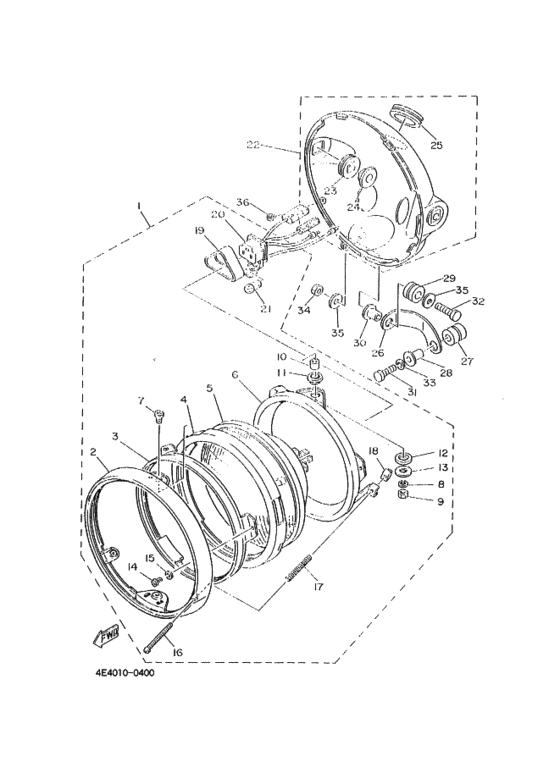

Headlight Diagram Yamaha XS650
- Year
- 1980
- Colour
- Black Red (BLR; 002J)
- Model code
- 4E40
- Sales region
- Japan (010)
- Engine Capacity
- 650
- Color Variant
- A
- Model
- XS650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2M1-84310-00-00
Headlight Unit Assy
|
2M1-84310-00-00 |
— | ||
|
2
|
2
341-84315-40-00 Rim, Headlight．リム，ヘツドライト; |
341-84315-40-00 |
from US $56.78 |
||
|
3
|
3
447-84395-60-00
Ring, Retaining
．リング，リテーニング; |
447-84395-60-00 |
— | ||
|
4
|
4
447-84322-60-00
Gasket, Lens
．ガスケツト，レンズ; |
447-84322-60-00 |
— | ||
|
5
|
5
341-84320-00-00
Lens Assy (12V 50/40W)
．レンズアセンブリ; |
341-84320-00-00 |
— | ||
| replacement | |||||
|
5
|
5
999-99999-99-00
Not Available
．レンズアセンブリ; |
999-99999-99-00 |
— | ||
|
6
|
6
584-84394-61-00
Ring, Mounting
．リング，マウンテイング; |
584-84394-61-00 |
— | ||
| replacement | |||||
|
6
|
6
447-84394-69-00
Ring, Mounting
．リング，マウンテイング; |
447-84394-69-00 |
— | ||
|
7
|
7
584-84398-60-00 Screw, Mounting Ring．スクリユ，マウンテイングリング; |
584-84398-60-00 |
from US $1.84 |
||
| replacement | |||||
|
7
|
7
98517-05020-00 Screw, Pan Head．スクリユ，マウンテイングリング; |
98517-05020-00 |
from US $1.70 |
||
|
8
|
8
929-01051-00-00
Washer, Spring
．ワツシヤ，スプリング; |
929-01051-00-00 |
— | ||
| replacement | |||||
|
8
|
8
92990-05100-00 Washer, Spring．ワツシヤ，スプリング; |
92990-05100-00 |
from US $1.21 |
||
|
9
|
9
953-01056-00-00
Nut
．ナツト; |
953-01056-00-00 |
— | ||
| replacement | |||||
|
9
|
9
95380-05600-00 Nut．ナツト; |
95380-05600-00 |
from US $1.42 |
||
|
10
|
10
584-84392-60-00 Collar 1．カラー １; |
584-84392-60-00 |
US $8.10 |
||
|
11
|
11
584-84393-60-00 Damper．ダンパ，マウントリング; |
584-84393-60-00 |
US $9.79 |
||
|
12
|
12
584-84399-60-00
Damper, Mntng Rng 1
．ダンパ，マウンテイングリング; |
584-84399-60-00 |
— | ||
|
13
|
13
584-84344-60-00 Washer, Plain．ワツシヤ，プレーン; |
584-84344-60-00 |
from US $1.70 |
||
| replacement | |||||
|
13
|
13
90201-05032-00 Washer Plate 803835240000．ワツシヤ，プレーン; |
90201-05032-00 |
from US $1.81 |
||
|
14
|
14
985-01040-08-00
Screw, Pan Head
．スクリユ，パンヘツド; |
985-01040-08-00 |
— | ||
| replacement | |||||
|
14
|
14
98580-04008-00 Screw, Pan Head (713)．スクリユ，パンヘツド; |
98580-04008-00 |
from US $1.39 |
||
|
15
|
15
929-01041-00-00
Washer, Spring
．ワツシヤ，スプリング; |
929-01041-00-00 |
— | ||
| replacement | |||||
|
15
|
15
92990-04100-00 Washer, Spring．ワツシヤ，スプリング; |
92990-04100-00 |
from US $1.21 |
||
|
16
|
16
447-84331-61-00
Screw, Rim Adjusting
．スクリユ，リムアジヤステイング; |
447-84331-61-00 |
— | ||
|
17
|
17
447-84332-60-00 Spring, Screw．スプリング，スクリユ; |
447-84332-60-00 |
from US $10.75 |
||
|
18
|
18
198-84334-60-00 Nut, Adjusting．ナツト，アジヤステイング; |
198-84334-60-00 |
from US $3.47 |
||
|
19
|
19
341-84397-61-00
Cover, Socket
．カバー，ソケツト; |
341-84397-61-00 |
— | ||
|
20
|
20
371-84312-00-00
Cord Assy
．ソケツト; |
371-84312-00-00 |
— | ||
| replacement | |||||
|
20
|
20
999-99999-99-00
Not Available
．ソケツト; |
999-99999-99-00 |
— | ||
|
21
|
21
123-83516-21-00 Bulb (12V3.4W)．．バルブ ; １２Ｖ−３４Ｗ |
123-83516-21-00 |
from US $3.26 |
||
| replacement | |||||
|
21
|
21
123-83516-21-XX Bulb (12V-3.4W)．．バルブ ; １２Ｖ−３４Ｗ |
123-83516-21-XX |
US $63.70 |
||
|
22
|
22
584-84330-62-93
Body Assy
ボデーアセンブリ; クロムメツキ |
584-84330-62-93 |
— | ||
| replacement | |||||
|
22
|
22
584-84330-61-93
Body Assembly
ボデーアセンブリ; クロムメツキ |
584-84330-61-93 |
— | ||
|
23
|
23
584-84345-60-00 Damper, Headlight．ダンパ，ヘツドライト; |
584-84345-60-00 |
from US $10.71 |
||
|
24
|
24
584-84338-60-00 Collar, Body Ftng．カラー，ボデーフイツテイング; |
584-84338-60-00 |
from US $7.79 |
||
|
25
|
25
214-84153-60-00 Grommet, Wire Harness．グロメツト，ワイヤハーネス; |
214-84153-60-00 |
from US $2.99 |
||
|
26
|
26
2M0-84318-00-00
Stay, Headlight 1
ステー，ヘツドライト １; |
2M0-84318-00-00 |
— | ||
|
27
|
27
90480-14244-00
Grommet
|
90480-14244-00 |
— | ||
|
28
|
28
90387-07549-00
Collar
カラー; |
90387-07549-00 |
— | ||
|
29
|
29
904-80141-02-00
Grommet
|
904-80141-02-00 |
— | ||
| replacement | |||||
|
29
|
29
90480-14023-00 Grommet 839774310000 |
90480-14023-00 |
from US $1.66 |
||
|
30
|
30
903-87063-88-00
Collar
カラー; |
903-87063-88-00 |
— | ||
| replacement | |||||
|
30
|
30
90387-06158-00 Collarカラー; |
90387-06158-00 |
from US $1.66 |
||
|
31
|
31
97301-06025-00 Bolt |
97301-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
31
|
31
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
32
|
32
97301-06030-00 Bolt |
97301-06030-00 |
from US $1.07 |
||
| replacements | |||||
|
32
|
32
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
32
|
32
97017-06030-00 Bolt |
97017-06030-00 |
from US $1.07 |
||
|
33
|
33
92901-06100-00 Washer, Springワツシヤ，スプリング; |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
33
|
33
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.97 |
||
|
34
|
34
95301-06600-00 Nut, Hexagon |
95301-06600-00 |
from US $0.90 |
||
| replacement | |||||
|
34
|
34
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
35
|
35
90201-06067-00 Washer, Plateワツシヤ，プレート; |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
35
|
35
90201-06380-00 Washer Plainワツシヤ，プレート; |
90201-06380-00 |
from US $0.86 |
||
|
36
|
36
90152-05005-00 Screw, Countersunk |
90152-05005-00 |
from US $1.56 |
||
