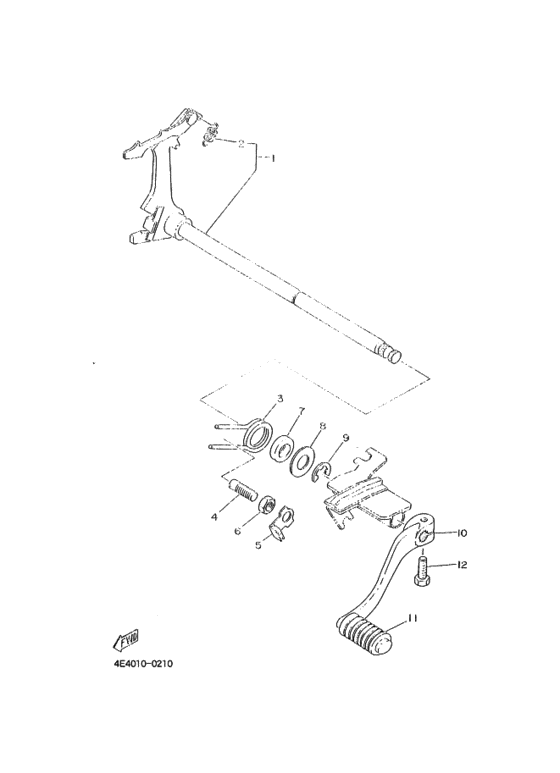

ｼﾌﾄｼﾔﾌﾄ. ﾍﾟﾀﾞﾙ Diagram Yamaha XS650
- Year
- 1980
- Colour
- Black Red (BLR; 002J)
- Model code
- 4E40
- Sales region
- Japan (010)
- Engine Capacity
- 650
- Color Variant
- A
- Model
- XS650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
256-18101-02-00
Shift Shaft Assembly. 1
|
256-18101-02-00 |
— | ||
| replacement | |||||
|
1
|
1
256-18101-03-00
Shift Shaft Assembly. 1
|
256-18101-03-00 |
— | ||
|
2
|
2
90506-08007-00
Spring, Tension
．スプリング，テンシヨン; |
90506-08007-00 |
— | ||
|
3
|
3
90508-32053-00
Spring, Torsion
スプリング，トーシヨン; |
90508-32053-00 |
— | ||
| replacement | |||||
|
3
|
3
905-08325-59-00
Spring, Torsion
スプリング，トーシヨン; |
905-08325-59-00 |
— | ||
|
4
|
4
901-49100-18-00
Screw, Spec''l Shape
|
901-49100-18-00 |
— | ||
|
5
|
5
902-15101-05-00
Washer, Lock
|
902-15101-05-00 |
— | ||
|
6
|
6
90170-10038-00 Nut, Hexagon |
90170-10038-00 |
from US $4.53 |
||
|
7
|
7
93109-14010-00 Oil Seal, Sdo-Typeオイルシール; |
93109-14010-00 |
from US $5.74 |
||
|
8
|
8
90201-14220-00 Washer Plate 248181370000ワツシヤ，プレート; |
90201-14220-00 |
from US $1.56 |
||
|
9
|
9
93430-12009-00 Circlipサークリツプ; |
93430-12009-00 |
from US $1.56 |
||
| replacement | |||||
|
9
|
9
99001-12600-00 Circlipサークリツプ; |
99001-12600-00 |
from US $1.56 |
||
|
10
|
10
1J7-18111-01-93 Pedal, Shiftクロムメツキ |
1J7-18111-01-93 |
from US $57.34 |
||
| replacement | |||||
|
10
|
10
2J2-18111-01-00 Pedal, Shiftクロムメツキ |
2J2-18111-01-00 |
from US $57.34 |
||
|
11
|
11
132-18113-01-00 Cover, Shift Pedalカバー，シフトペダル; |
132-18113-01-00 |
from US $2.02 |
||
|
12
|
12
97321-06020-00 Bolt |
97321-06020-00 |
from US $1.07 |
||
| replacement | |||||
|
12
|
12
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.16 |
||
