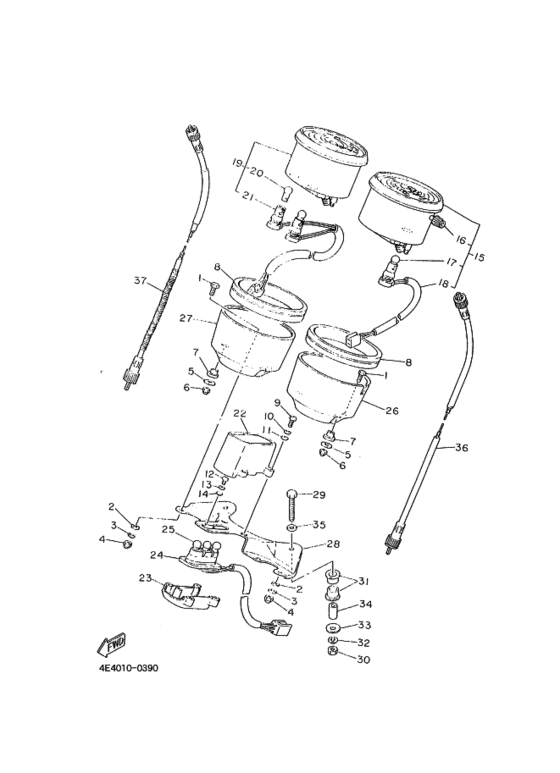

ｽﾋﾟｰﾄﾞﾒｰﾀ. ﾀｺﾒｰﾀ Diagram Yamaha XS650
- Year
- 1980
- Colour
- Black Red (BLR; 002J)
- Model code
- 4E40
- Sales region
- Japan (010)
- Engine Capacity
- 650
- Color Variant
- A
- Model
- XS650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
584-83546-00-00 Bolt |
584-83546-00-00 |
from US $2.98 |
||
|
2
|
2
92901-06200-00 Washer, Plainワツシヤ，プレーン; |
92901-06200-00 |
from US $1.07 |
||
| replacement | |||||
|
2
|
2
92990-06200-00 Washer, Plainワツシヤ，プレーン; |
92990-06200-00 |
from US $1.18 |
||
|
3
|
3
92901-06100-00 Washer, Springワツシヤ，スプリング; |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
3
|
3
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.97 |
||
|
4
|
4
95301-06800-00 Nutナツト，クラウン; |
95301-06800-00 |
from US $0.90 |
||
| replacement | |||||
|
4
|
4
95380-06800-00 Nut (J17)ナツト，クラウン; |
95380-06800-00 |
from US $1.18 |
||
|
5
|
5
90201-05031-00 Washer, Plateワツシヤ，プレート; |
90201-05031-00 |
from US $1.70 |
||
| replacements | |||||
|
5
|
5
90201-05725-00 Washer, Plateワツシヤ，プレート; |
90201-05725-00 |
from US $1.70 |
||
|
5
|
5
90201-05043-00 Washer, Plateワツシヤ，プレート; |
90201-05043-00 |
from US $1.70 |
||
|
6
|
6
95301-05800-00 Nut (Crown)ナツト，クラウン; |
95301-05800-00 |
US $1.56 |
||
| replacement | |||||
|
6
|
6
953-04058-00-00 Nutナツト，クラウン; |
953-04058-00-00 |
from US $1.56 |
||
|
7
|
7
584-83523-00-00 Damper |
584-83523-00-00 |
from US $8.36 |
||
| replacement | |||||
|
7
|
7
21L-H3523-10-00
Damper
|
21L-H3523-10-00 |
— | ||
|
8
|
8
3H3-83513-00-00 Damper |
3H3-83513-00-00 |
from US $21.39 |
||
|
9
|
9
98506-04012-00 Screw, Pan Head |
98506-04012-00 |
from US $1.07 |
||
| replacement | |||||
|
9
|
9
98517-04012-00 Screw, Pan Head |
98517-04012-00 |
from US $1.07 |
||
|
10
|
10
92906-04100-00 Washer, Springワツシヤ，スプリング; |
92906-04100-00 |
from US $1.21 |
||
| replacements | |||||
|
10
|
10
92907-04100-00 Washer, Springワツシヤ，スプリング; |
92907-04100-00 |
from US $1.21 |
||
|
10
|
10
999-99999-99-00
Not Available
ワツシヤ，スプリング; |
999-99999-99-00 |
— | ||
|
11
|
11
92906-04600-00 Washerワツシヤ，プレート; |
92906-04600-00 |
from US $1.07 |
||
| replacement | |||||
|
11
|
11
92907-04600-00 Washer(Jf2)ワツシヤ，プレート; |
92907-04600-00 |
from US $1.07 |
||
|
12
|
12
92501-04008-00 Screw, Pan Head |
92501-04008-00 |
US $1.07 |
||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
13
|
13
929-01041-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-01041-00-00 |
— | ||
| replacement | |||||
|
13
|
13
92990-04100-00 Washer, Springワツシヤ，スプリング; |
92990-04100-00 |
from US $1.21 |
||
|
14
|
14
929-01046-00-00
Washer
ワツシヤ，プレート; |
929-01046-00-00 |
— | ||
| replacement | |||||
|
14
|
14
929-90046-00-00 Washer, Plateワツシヤ，プレート; |
929-90046-00-00 |
from US $1.07 |
||
|
15
|
15
4E3-83580-50-00
Speedometer Assy
スピードメータアセンブリ; |
4E3-83580-50-00 |
— | ||
|
16
|
16
854-83578-71-00
Knob, Trip Meter
．ノブ，トリツプメータ; |
854-83578-71-00 |
— | ||
|
17
|
17
123-83516-21-00 Bulb (12V3.4W)．．バルブ ; １２Ｖ−３４Ｗ |
123-83516-21-00 |
from US $3.26 |
||
| replacement | |||||
|
17
|
17
123-83516-21-XX Bulb (12V-3.4W)．．バルブ ; １２Ｖ−３４Ｗ |
123-83516-21-XX |
US $63.70 |
||
|
18
|
18
4E3-83536-00-00
Socket, Meter
．ソケツト，メータ; |
4E3-83536-00-00 |
— | ||
|
19
|
19
3U6-83540-F0-00
Tachometer Assy
タコメータアセンブリ; |
3U6-83540-F0-00 |
— | ||
|
20
|
20
123-83516-21-00 Bulb (12V3.4W)．．バルブ ; １２Ｖ−３４Ｗ |
123-83516-21-00 |
from US $3.26 |
||
| replacement | |||||
|
20
|
20
123-83516-21-XX Bulb (12V-3.4W)．．バルブ ; １２Ｖ−３４Ｗ |
123-83516-21-XX |
US $63.70 |
||
|
21
|
21
3J3-83520-01-00
Socket Cord Assembly
．ソケツトアセンブリ; |
3J3-83520-01-00 |
— | ||
|
22
|
22
4E3-83568-50-00
Pilot Box, Upper
パイロツトボツクス，アツパ; |
4E3-83568-50-00 |
— | ||
|
23
|
23
2G2-83569-A0-00
Pilot Box, Lower
|
2G2-83569-A0-00 |
— | ||
|
24
|
24
4E3-83509-00-00
Socket Cord Assy
ソケツトコードアセンブリ; |
4E3-83509-00-00 |
— | ||
|
25
|
25
123-83516-21-00 Bulb (12V3.4W)．バルブ ; １２Ｖ−３４Ｗ |
123-83516-21-00 |
from US $3.26 |
||
| replacement | |||||
|
25
|
25
123-83516-21-XX Bulb (12V-3.4W)．バルブ ; １２Ｖ−３４Ｗ |
123-83516-21-XX |
US $63.70 |
||
|
26
|
26
2J2-83507-00-00 Cover, Speedometerカバー，スピードメータ; |
2J2-83507-00-00 |
from US $52.78 |
||
|
27
|
27
2J2-83508-00-00 Cover, Tachometerカバー，タコメータ; |
2J2-83508-00-00 |
from US $50.65 |
||
|
28
|
28
2M0-83519-00-00
Bracket, Meter
ブラケツト，メータ; |
2M0-83519-00-00 |
— | ||
|
29
|
29
97306-06040-00 Bolt |
97306-06040-00 |
from US $2.69 |
||
| replacement | |||||
|
29
|
29
97017-06040-00 Bolt(8Bc) |
97017-06040-00 |
from US $2.69 |
||
|
30
|
30
95301-06600-00 Nut, Hexagon |
95301-06600-00 |
from US $0.90 |
||
| replacement | |||||
|
30
|
30
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
31
|
31
584-83541-00-00 Damper |
584-83541-00-00 |
from US $11.03 |
||
|
32
|
32
92901-06100-00 Washer, Springワツシヤ，スプリング; |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
32
|
32
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.97 |
||
|
33
|
33
90201-06067-00 Washer, Plateワツシヤ，プレート; |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
33
|
33
90201-06380-00 Washer Plainワツシヤ，プレート; |
90201-06380-00 |
from US $0.86 |
||
|
34
|
34
90387-06249-00 Collarカラー; |
90387-06249-00 |
from US $1.28 |
||
|
35
|
35
929-06066-00-00
Washer
ワツシヤ，プレート; |
929-06066-00-00 |
— | ||
| replacement | |||||
|
35
|
35
92907-06600-00 Washer, Plateワツシヤ，プレート; |
92907-06600-00 |
from US $1.18 |
||
|
36
|
36
341-83550-01-00 Speedometer Cable Assyスピードメータケーブルアセンブリ; |
341-83550-01-00 |
from US $28.22 |
||
| replacement | |||||
|
36
|
36
16M-83550-01-00 Speedometer Cable Assyスピードメータケーブルアセンブリ; |
16M-83550-01-00 |
from US $48.55 |
||
|
37
|
37
447-83560-01-00 Tachometer Cableタコメータケーブルアセンブリ; |
447-83560-01-00 |
US $49.61 |
||
