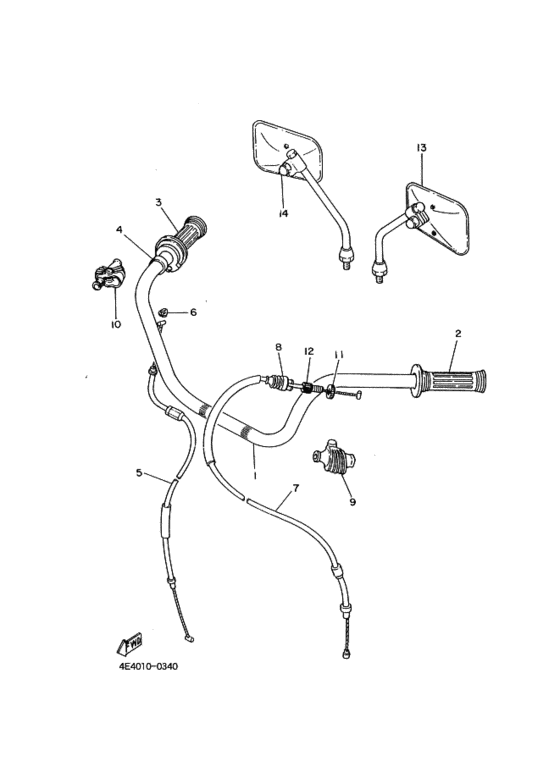

Steering handle & cable Diagram Yamaha XS650
- Year
- 1980
- Colour
- Black Red (BLR; 002J)
- Model code
- 4E40
- Sales region
- Japan (010)
- Engine Capacity
- 650
- Color Variant
- A
- Model
- XS650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2M0-26111-00-00
Handlebar
ハンドルバー; |
2M0-26111-00-00 |
— | ||
| replacement | |||||
|
1
|
1
3H3-26111-00-00
Handlebar
ハンドルバー; |
3H3-26111-00-00 |
— | ||
|
2
|
2
2H7-26241-00-00 Grip Lhグリツプ ; レフト |
2H7-26241-00-00 |
from US $11.33 |
||
| replacement | |||||
|
2
|
2
2H7-26241-01-00 グリツプ ; レフト |
2H7-26241-01-00 |
from US $11.33 |
||
|
3
|
3
2H7-26240-00-00 Grip Assy, Rh |
2H7-26240-00-00 |
from US $17.60 |
||
| replacement | |||||
|
3
|
3
2H7-26240-01-00 |
2H7-26240-01-00 |
US $20.47 |
||
|
4
|
4
90387-22660-00 Collarカラー; |
90387-22660-00 |
from US $1.84 |
||
|
5
|
5
2M0-26311-00-00
Cable, Throttle 1
ケーブル，スロツトル １; |
2M0-26311-00-00 |
— | ||
| replacement | |||||
|
5
|
5
2M0-26311-01-00 Cable, Throttle 1ケーブル，スロツトル １; |
2M0-26311-01-00 |
US $43.29 |
||
|
6
|
6
584-26393-01-00 Holder |
584-26393-01-00 |
US $3.40 |
||
| replacement | |||||
|
6
|
6
584-26393-02-00 Holder, Wire Guide |
584-26393-02-00 |
from US $3.40 |
||
|
7
|
7
3L1-26335-00-00 Cable, clutchケーブル，クラツチ; |
3L1-26335-00-00 |
from US $58.72 |
||
|
8
|
8
1E6-26342-00-00 Boot, Cableブーツ，ケーブル; |
1E6-26342-00-00 |
from US $15.68 |
||
|
9
|
9
1E6-26372-00-00 Cover, Handle Lever 1カバー，ハンドルレバー; |
1E6-26372-00-00 |
from US $14.29 |
||
|
10
|
10
1T5-26372-00-00 Cover, Handle Lever 1カバー，ハンドルレバー; |
1T5-26372-00-00 |
from US $14.29 |
||
|
11
|
11
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
| replacement | |||||
|
11
|
11
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.94 |
||
|
12
|
12
901-23080-46-00 Bolt |
901-23080-46-00 |
from US $3.74 |
||
| replacement | |||||
|
12
|
12
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.74 |
||
|
13
|
13
2G2-26290-10-00 Mirror Assembly Lhミラーアセンブリ; |
2G2-26290-10-00 |
from US $39.04 |
||
|
14
|
14
2G2-26290-00-00 Mirror Assembly Rhミラーアセンブリ; |
2G2-26290-00-00 |
from US $39.85 |
||
