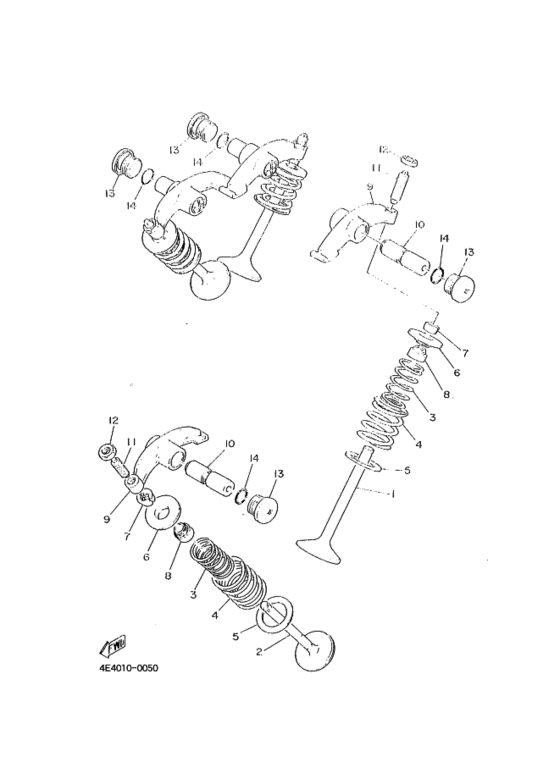

Valve Diagram Yamaha XS650
- Year
- 1980
- Colour
- Black Red (BLR; 002J)
- Model code
- 4E40
- Sales region
- Japan (010)
- Engine Capacity
- 650
- Color Variant
- A
- Model
- XS650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
341-12111-03-00
Valve, Intake
バルブ，インテーク; |
341-12111-03-00 |
— | ||
| replacement | |||||
|
1
|
1
341-12111-04-00
Valve, Intake#4
バルブ，インテーク; |
341-12111-04-00 |
— | ||
|
2
|
2
341-12121-01-00
Valve, Exhaust#1
バルブ，エキゾースト; |
341-12121-01-00 |
— | ||
|
3
|
3
90501-29284-00
Spring, Compression
|
90501-29284-00 |
— | ||
|
4
|
4
90501-42286-00
Spring, Compression
|
90501-42286-00 |
— | ||
|
5
|
5
256-12116-01-00
Seat, Valve Spring
シート，バルブスプリング; |
256-12116-01-00 |
— | ||
|
6
|
6
256-12117-01-00 Retainer, Valve Springリテーナ，バルブスプリング; |
256-12117-01-00 |
from US $14.17 |
||
| replacement | |||||
|
6
|
6
256-12117-02-00 Retainer, Valve Sprリテーナ，バルブスプリング; |
256-12117-02-00 |
from US $14.17 |
||
|
7
|
7
341-12118-00-00 Cotter, Valve |
341-12118-00-00 |
from US $4.39 |
||
|
8
|
8
341-12119-02-00 Seal, Valve Stemシール，バルブステム; |
341-12119-02-00 |
from US $13.60 |
||
|
9
|
9
256-12151-00-00
Arm, Valve Rocker
アーム，バルブロツカ; |
256-12151-00-00 |
— | ||
| replacement | |||||
|
9
|
9
306-12151-00-00
Arm, Valve Rocker
アーム，バルブロツカ; |
306-12151-00-00 |
— | ||
|
10
|
10
256-12156-01-00
Shaft, Rocker
|
256-12156-01-00 |
— | ||
|
11
|
11
583-12159-00-00 Screw, Valve Adjusting |
583-12159-00-00 |
from US $15.58 |
||
| replacement | |||||
|
11
|
11
3HT-12159-R0-00 Screw, Valve Adjusting |
3HT-12159-R0-00 |
from US $15.58 |
||
|
12
|
12
90170-08173-00 Nut |
90170-08173-00 |
from US $1.39 |
||
|
13
|
13
90340-18017-00
Plug, Straight Scrw
|
90340-18017-00 |
— | ||
|
14
|
14
93210-17143-00
O-Ring
|
93210-17143-00 |
— | ||
