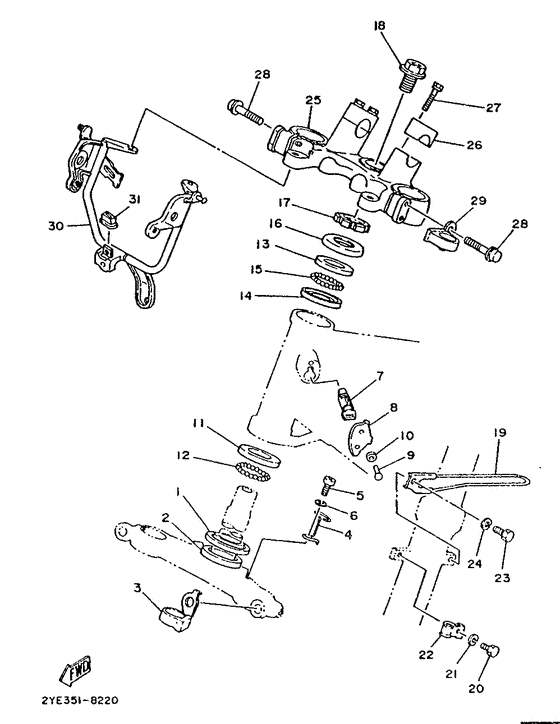

Steering Diagram Yamaha XT125
- Year
- 1988
- Colour
- White (WW; 0036)
- Model code
- 2YE1
- Sales region
- France (999)
- Engine Capacity
- 125
- Model
- XT125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
156-23411-00-00 Race, Ball 1 |
156-23411-00-00 |
from US $17.10 |
||
| replacement | |||||
|
01
|
01
B6E-23411-00-00 Race, Ball 1 |
B6E-23411-00-00 |
from US $9.65 |
||
|
02
|
02
164-23462-00-00 Seal, Dust |
164-23462-00-00 |
from US $4.72 |
||
|
03
|
03
15A-23389-00-00
Guide, Cable
|
15A-23389-00-00 |
— | ||
|
04
|
04
3Y1-2331E-00-00
Guide, Cable
|
3Y1-2331E-00-00 |
— | ||
|
05
|
05
92501-06012-00 Screw, Pan Head |
92501-06012-00 |
from US $1.56 |
||
| replacement | |||||
|
05
|
05
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.66 |
||
|
06
|
06
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
06
|
06
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
08
|
08
134-23484-10-00 Cap, Handle Lock |
134-23484-10-00 |
from US $10.34 |
||
|
09
|
09
90269-04003-00 Rivet |
90269-04003-00 |
from US $2.55 |
||
|
10
|
10
90208-04029-00 Washer, Conical Spring |
90208-04029-00 |
from US $1.98 |
||
|
11
|
11
156-23412-00-00 Race, Ball 2 |
156-23412-00-00 |
from US $12.48 |
||
| replacement | |||||
|
11
|
11
B6E-23412-00-00 Race, Ball 2 |
B6E-23412-00-00 |
from US $11.83 |
||
|
12
|
12
93501-04011-00 Ball |
93501-04011-00 |
from US $1.70 |
||
|
13
|
13
122-23411-00-00 Race, Ball 1 |
122-23411-00-00 |
from US $8.78 |
||
| replacements | |||||
|
13
|
13
22F-23411-01-00 Race, Ball 1 |
22F-23411-01-00 |
US $9.71 |
||
|
13
|
13
BP2-23411-00-00 Race, Ball 1 |
BP2-23411-00-00 |
from US $9.71 |
||
|
14
|
14
122-23412-00-00 Race, Ball 2 |
122-23412-00-00 |
from US $7.93 |
||
| replacements | |||||
|
14
|
14
22F-23412-01-00 Race, Ball 2 |
22F-23412-01-00 |
US $8.74 |
||
|
14
|
14
BP2-23412-00-00 Race, Ball 2 |
BP2-23412-00-00 |
from US $8.74 |
||
|
15
|
15
93503-16010-00 Ball 3-16 |
93503-16010-00 |
from US $1.39 |
||
| replacement | |||||
|
15
|
15
93503-16003-00 Ball |
93503-16003-00 |
from US $1.39 |
||
|
16
|
16
122-23416-00-00 Cover, Ball Race 2 |
122-23416-00-00 |
from US $2.69 |
||
|
17
|
17
901-79250-33-00
Nut
|
901-79250-33-00 |
— | ||
| replacements | |||||
|
17
|
17
901-79250-04-00 Nut |
901-79250-04-00 |
from US $4.86 |
||
|
17
|
17
90179-25003-00 Nut |
90179-25003-00 |
from US $9.92 |
||
|
18
|
18
90105-14102-00 Bolt, Flange |
90105-14102-00 |
from US $7.97 |
||
|
19
|
19
15A-23317-00-00
Holder, Cable
|
15A-23317-00-00 |
— | ||
|
20
|
20
97001-06012-00 Bolt, Hexagon |
97001-06012-00 |
from US $3.12 |
||
| replacements | |||||
|
20
|
20
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
20
|
20
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
|
21
|
21
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
21
|
21
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
22
|
22
3Y1-23319-00-00 Wire, Holder 2 |
3Y1-23319-00-00 |
from US $5.97 |
||
|
23
|
23
97006-06012-00 Bolt |
97006-06012-00 |
from US $1.21 |
||
| replacement | |||||
|
23
|
23
97017-06012-00 Bolt |
97017-06012-00 |
from US $1.39 |
||
|
24
|
24
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
24
|
24
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
|
25
|
25
15A-23435-00-98
Crown, Handle
|
15A-23435-00-98 |
— | ||
| replacement | |||||
|
25
|
25
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
26
|
26
1E6-23441-00-00 Holder, Handle Upr (1E6-23441-0 |
1E6-23441-00-00 |
from US $20.97 |
||
|
27
|
27
95816-08035-00 Bolt, Flange(36R) |
95816-08035-00 |
from US $1.07 |
||
| replacement | |||||
|
27
|
27
95817-08035-00 Bolt, Flange |
95817-08035-00 |
from US $1.18 |
||
|
28
|
28
95826-08040-00 Bolt, Flange |
95826-08040-00 |
from US $1.07 |
||
| replacement | |||||
|
28
|
28
95817-08040-00 Bolt, Flange |
95817-08040-00 |
from US $1.07 |
||
|
29
|
29
5Y1-23317-00-00 Holder, Cable |
5Y1-23317-00-00 |
US $16.33 |
||
|
30
|
30
47J-23174-00-00
Stay, Headlight
|
47J-23174-00-00 |
— | ||
| replacement | |||||
|
30
|
30
47J-23174-01-00
Stay, Headlight
|
47J-23174-01-00 |
— | ||
|
31
|
31
30X-23445-00-00 Damper |
30X-23445-00-00 |
from US $8.74 |
||
