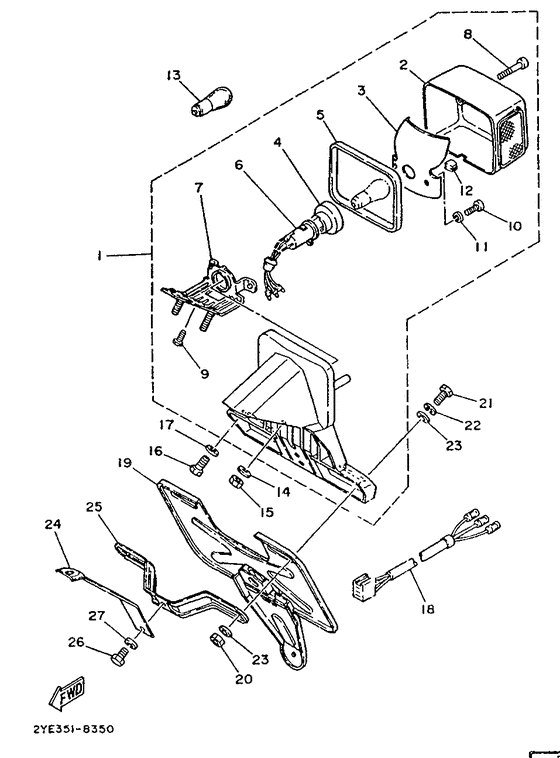

Taillight Diagram Yamaha XT125
- Year
- 1988
- Colour
- White (WW; 0036)
- Model code
- 2YE1
- Sales region
- France (999)
- Engine Capacity
- 125
- Model
- XT125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
12V-84500-E0-00
Taillight Assy
|
12V-84500-E0-00 |
— | ||
| replacement | |||||
|
01
|
01
12V-84500-E1-00
Taillight Assy
|
12V-84500-E1-00 |
— | ||
|
02
|
02
1M8-84521-40-00 Lens, Taillight |
1M8-84521-40-00 |
from US $37.89 |
||
| replacement | |||||
|
02
|
02
1M1-84521-60-00 Lens, Tail Lamp |
1M1-84521-60-00 |
from US $47.80 |
||
|
03
|
03
3Y8-84531-40-00
Reflecter, Tail Light
|
3Y8-84531-40-00 |
— | ||
| replacement | |||||
|
03
|
03
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
04
|
04
15A-84736-00-00
Damper, Tail
|
15A-84736-00-00 |
— | ||
|
05
|
05
15A-84545-00-00
Gasket, Lens
|
15A-84545-00-00 |
— | ||
|
06
|
06
15A-84536-00-00
Socket Cord Assembly
|
15A-84536-00-00 |
— | ||
| replacement | |||||
|
06
|
06
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
07
|
07
15A-84552-00-00
Bolt, Fitting
|
15A-84552-00-00 |
— | ||
| replacement | |||||
|
07
|
07
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
08
|
08
3Y1-84524-00-00 Screw, Lens Fitting |
3Y1-84524-00-00 |
from US $3.40 |
||
|
09
|
09
989-01040-08-00
Screw, Bind
|
989-01040-08-00 |
— | ||
| replacement | |||||
|
09
|
09
98980-04008-00 Screw, Bind |
98980-04008-00 |
from US $1.21 |
||
|
10
|
10
985-01040-06-00
Screw, Pan Head
|
985-01040-06-00 |
— | ||
| replacements | |||||
|
10
|
10
985-17040-16-00 Screw, Pan Head |
985-17040-16-00 |
from US $1.52 |
||
|
10
|
10
901-59041-44-00
Screw, With Washer
|
901-59041-44-00 |
— | ||
|
10
|
10
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
10
|
10
99999-04427-00 Screw,pan Head W/washer |
99999-04427-00 |
US $3.04 |
||
|
11
|
11
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
11
|
11
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
12
|
12
1A2-84718-40-00
Grommet
|
1A2-84718-40-00 |
— | ||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
14
|
14
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
14
|
14
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
15
|
15
953-03066-00-00
Nut, Hexagon
|
953-03066-00-00 |
— | ||
| replacement | |||||
|
15
|
15
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
16
|
16
97001-06020-00 Bolt(78G) |
97001-06020-00 |
from US $1.07 |
||
| replacement | |||||
|
16
|
16
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.16 |
||
|
17
|
17
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
17
|
17
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
18
|
18
15A-84517-00-00
Cord, Taillight
|
15A-84517-00-00 |
— | ||
| replacement | |||||
|
18
|
18
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
19
|
19
2J4-28189-00-00
Plate, Number Support
|
2J4-28189-00-00 |
— | ||
|
20
|
20
953-03066-00-00
Nut, Hexagon
|
953-03066-00-00 |
— | ||
| replacement | |||||
|
20
|
20
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
21
|
21
97001-06020-00 Bolt(78G) |
97001-06020-00 |
from US $1.07 |
||
| replacement | |||||
|
21
|
21
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.16 |
||
|
22
|
22
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
22
|
22
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
23
|
23
90201-062G3-00 Washer, Plate |
90201-062G3-00 |
US $1.70 |
||
| replacement | |||||
|
23
|
23
90201-06049-00 Washer, Plate |
90201-06049-00 |
from US $1.70 |
||
|
24
|
24
12V-21682-10-00
Stay, Plate
|
12V-21682-10-00 |
— | ||
| replacement | |||||
|
24
|
24
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
25
|
25
12V-21688-00-00
Bracket, Rear Stay
|
12V-21688-00-00 |
— | ||
| replacement | |||||
|
25
|
25
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
26
|
26
97001-06012-00 Bolt, Hexagon |
97001-06012-00 |
from US $3.12 |
||
| replacements | |||||
|
26
|
26
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
26
|
26
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
|
27
|
27
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
27
|
27
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
