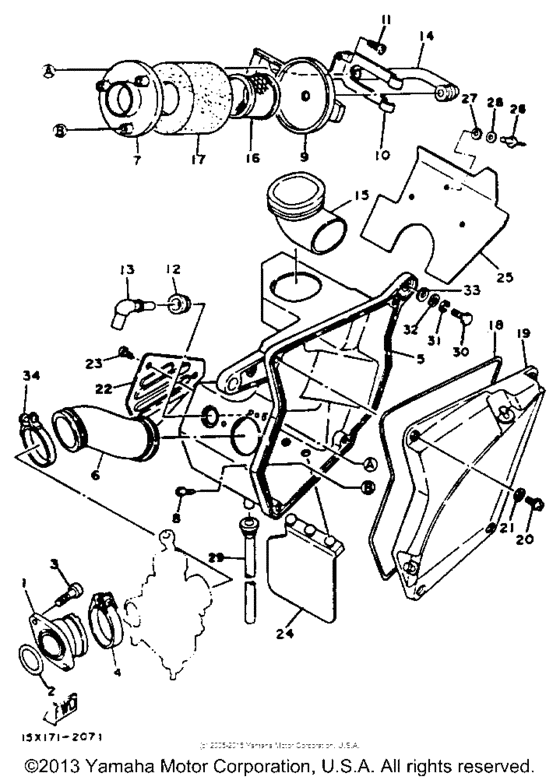

Air filter Diagram Yamaha XT125
- Year
- 1982
- Sales region
- USA
- Engine Capacity
- 125
- Model
- XT125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15A-13586-02-00
Joint,carburetor 1
|
15A-13586-02-00 |
— | ||
| replacement | |||||
|
1
|
1
15A-13586-03-00
Joint, Carburetor 1
|
15A-13586-03-00 |
— | ||
|
2
|
2
932-10355-37-00
O-Ring
|
932-10355-37-00 |
— | ||
| replacement | |||||
|
2
|
2
93210-35803-00 O-Ring |
93210-35803-00 |
from US $1.85 |
||
|
3
|
3
913-16060-20-00
Bolt
|
913-16060-20-00 |
— | ||
| replacement | |||||
|
3
|
3
91317-06020-00 Bolt |
91317-06020-00 |
from US $1.18 |
||
|
4
|
4
90460-43179-00 Clamp, Hose |
90460-43179-00 |
from US $7.65 |
||
|
5
|
5
15A-14411-00-00
Case, Air Cleaner 1
|
15A-14411-00-00 |
— | ||
|
6
|
6
15E-14453-00-00
Joint, Air Clnr 1
|
15E-14453-00-00 |
— | ||
|
7
|
7
15A-14472-00-00
Plate, Element
|
15A-14472-00-00 |
— | ||
|
8
|
8
97701-40510-00 Screw, Tapping |
97701-40510-00 |
from US $1.56 |
||
| replacement | |||||
|
8
|
8
97707-40610-00 Screw, Tapping |
97707-40610-00 |
from US $1.66 |
||
|
9
|
9
15A-14468-00-00
Plate, Element Ftng
|
15A-14468-00-00 |
— | ||
|
10
|
10
14X-W2472-00-00
Double Seat Assembly
IN PRICE BOOK |
14X-W2472-00-00 |
— | ||
|
11
|
11
97701-40510-00 Screw, Tapping |
97701-40510-00 |
from US $1.56 |
||
| replacement | |||||
|
11
|
11
97707-40610-00 Screw, Tapping |
97707-40610-00 |
from US $1.66 |
||
|
12
|
12
90480-16278-00 Grommet |
90480-16278-00 |
from US $1.35 |
||
|
13
|
13
15A-14485-00-00
Pipe, Joint
|
15A-14485-00-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
14
|
14
14X-W2472-00-00
Double Seat Assembly
IN PRICE BOOK |
14X-W2472-00-00 |
— | ||
|
15
|
15
14X-W2472-00-00
Double Seat Assembly
IN PRICE BOOK |
14X-W2472-00-00 |
— | ||
|
16
|
16
15A-14458-01-00
Guide, Element
|
15A-14458-01-00 |
— | ||
|
17
|
17
15A-14451-00-00 Element, Air Clnr |
15A-14451-00-00 |
from US $24.39 |
||
|
18
|
18
1VJ-14462-00-00 Seal |
1VJ-14462-00-00 |
from US $11.12 |
||
|
19
|
19
15A-14412-00-00
Cap, Cleaner Case 1
|
15A-14412-00-00 |
— | ||
|
20
|
20
98586-05016-00 Screw, Pan Head |
98586-05016-00 |
from US $1.42 |
||
| replacement | |||||
|
20
|
20
90157-05M19-00 Screw, Pan Head |
90157-05M19-00 |
from US $1.42 |
||
|
21
|
21
929-06056-00-00
Washer, Plate
|
929-06056-00-00 |
— | ||
| replacement | |||||
|
21
|
21
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
|
22
|
22
15A-1442F-00-00
Protector
|
15A-1442F-00-00 |
— | ||
|
23
|
23
97701-40510-00 Screw, Tapping |
97701-40510-00 |
from US $1.56 |
||
| replacement | |||||
|
23
|
23
97707-40610-00 Screw, Tapping |
97707-40610-00 |
from US $1.66 |
||
|
24
|
24
15A-21621-00-00
Flap
|
15A-21621-00-00 |
— | ||
|
25
|
25
15A-21691-01-00
Flap
|
15A-21691-01-00 |
— | ||
|
26
|
26
90267-40073-00 Rivet, Blind |
90267-40073-00 |
from US $3.26 |
||
| replacement | |||||
|
26
|
26
90267-40029-00 Rivet, Blind (4X18 Black) |
90267-40029-00 |
from US $3.54 |
||
|
27
|
27
90201-047A2-00 Washer, Plate |
90201-047A2-00 |
from US $1.70 |
||
|
28
|
28
92990-04200-00 Washer |
92990-04200-00 |
from US $1.21 |
||
|
29
|
29
15A-1443E-00-00
Pipe, Drain
|
15A-1443E-00-00 |
— | ||
|
30
|
30
970-11060-25-00
Bolt
|
970-11060-25-00 |
— | ||
| replacement | |||||
|
30
|
30
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
31
|
31
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
32
|
32
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
32
|
32
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
32
|
32
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
32
|
32
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
33
|
33
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
34
|
34
90460-45040-00 Hose Clamp Assy |
90460-45040-00 |
from US $8.46 |
||
| replacements | |||||
|
34
|
34
904-50440-46-00 Hose Clamp Assy |
904-50440-46-00 |
from US $6.40 |
||
|
34
|
34
90450-45075-00 Hose Clamp Assy |
90450-45075-00 |
from US $5.80 |
||
