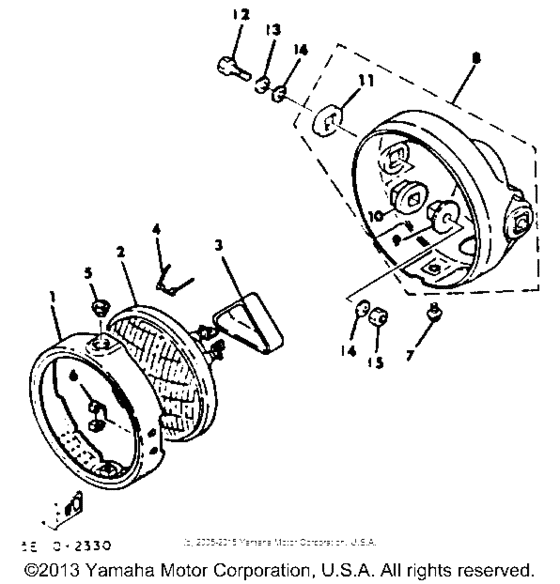

Headlight Diagram Yamaha XT125
- Year
- 1982
- Sales region
- USA
- Engine Capacity
- 125
- Model
- XT125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3J0-84195-60-00 Ring, Retaining |
3J0-84195-60-00 |
from US $64.33 |
||
|
2
|
2
2A6-84120-60-00
Lens Assembly
|
2A6-84120-60-00 |
— | ||
|
3
|
3
341-84397-61-00
Cover, Socket
|
341-84397-61-00 |
— | ||
|
4
|
4
1M1-84124-60-00 Spring, Set |
1M1-84124-60-00 |
from US $6.38 |
||
|
5
|
5
1M1-84133-60-00 Collar, Screw |
1M1-84133-60-00 |
from US $7.23 |
||
|
6
|
6
498-84128-60-00
Spacer
|
498-84128-60-00 |
— | ||
|
7
|
7
1M1-84137-60-00 Bolt, Special |
1M1-84137-60-00 |
from US $9.09 |
||
|
8
|
8
3J0-84130-60-00 Body Assembly, Headlight |
3J0-84130-60-00 |
from US $82.78 |
||
|
9
|
9
498-84145-60-00 Collar, Body Fitting |
498-84145-60-00 |
from US $9.66 |
||
|
10
|
10
498-84163-60-00 Damper |
498-84163-60-00 |
from US $9.63 |
||
|
11
|
11
1M1-84164-60-00 Damper |
1M1-84164-60-00 |
from US $16.58 |
||
|
12
|
12
97306-08040-00 Bolt |
97306-08040-00 |
from US $5.67 |
||
| replacement | |||||
|
12
|
12
90101-08499-00 Bolt |
90101-08499-00 |
from US $5.67 |
||
|
13
|
13
92902-08100-00 Washer, Spring |
92902-08100-00 |
from US $0.85 |
||
| replacement | |||||
|
13
|
13
92907-08100-00 Washer, Spring |
92907-08100-00 |
from US $0.85 |
||
|
14
|
14
92906-08200-00 Washer |
92906-08200-00 |
from US $1.56 |
||
| replacement | |||||
|
14
|
14
92907-08200-00 Washer |
92907-08200-00 |
from US $1.36 |
||
|
15
|
15
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
| replacement | |||||
|
15
|
15
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
