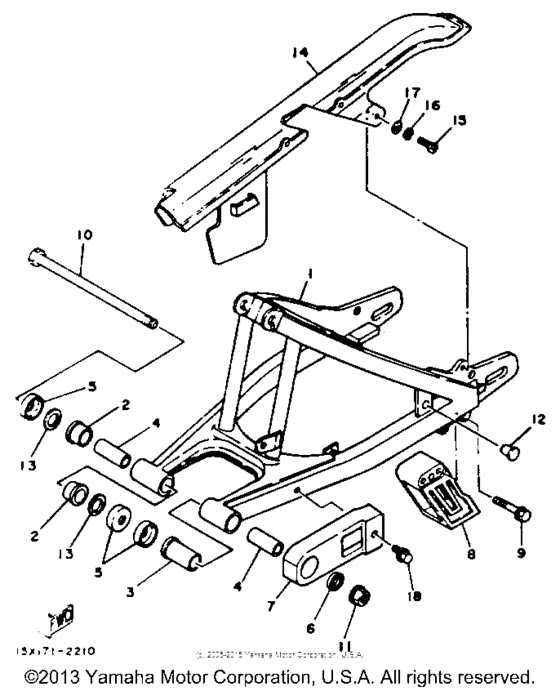

Swing arm Diagram Yamaha XT125
- Year
- 1982
- Sales region
- USA
- Engine Capacity
- 125
- Model
- XT125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15A-22110-00-35
Rear Arm
|
15A-22110-00-35 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
15A-22123-00-00 Bush 1 |
15A-22123-00-00 |
from US $16.43 |
||
|
3
|
3
90386-18028-00 Bush |
90386-18028-00 |
from US $8.76 |
||
|
4
|
4
15A-22126-00-00 Collar |
15A-22126-00-00 |
from US $12.61 |
||
| replacement | |||||
|
4
|
4
90387-124R8-00 Collar |
90387-124R8-00 |
from US $12.61 |
||
|
5
|
5
401-22128-01-00 Cover, Thrust 1 |
401-22128-01-00 |
from US $8.42 |
||
|
6
|
6
921-09180-20-00
New Genuine Part
IN PRICE BOOK |
921-09180-20-00 |
— | ||
|
7
|
7
15A-22151-01-00
Seal, Guard
|
15A-22151-01-00 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
8
|
8
10V-22153-00-00 Guard, Chain |
10V-22153-00-00 |
from US $35.28 |
||
|
9
|
9
95811-06050-00 Bolt, Flange(53Y) |
95811-06050-00 |
from US $1.21 |
||
| replacement | |||||
|
9
|
9
95817-06050-00 Bolt, Flange |
95817-06050-00 |
from US $1.21 |
||
|
10
|
10
4V0-22141-00-00
Shaft, Pivot
|
4V0-22141-00-00 |
— | ||
|
11
|
11
90185-12072-00 Nut, Self-Locking |
90185-12072-00 |
from US $1.84 |
||
|
12
|
12
90338-11111-00 Plug, Special Shape |
90338-11111-00 |
from US $2.45 |
||
|
13
|
13
401-22127-00-00 Shim |
401-22127-00-00 |
from US $3.12 |
||
|
14
|
14
15A-22310-00-00
Chain Case Assembly
|
15A-22310-00-00 |
— | ||
|
15
|
15
985-06060-16-00
Screw Pan Head
|
985-06060-16-00 |
— | ||
| replacement | |||||
|
15
|
15
98507-06016-00 Screw, Pan Head |
98507-06016-00 |
from US $1.52 |
||
|
16
|
16
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
16
|
16
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
|
17
|
17
90201-062A8-00 Washer, Plate |
90201-062A8-00 |
from US $1.84 |
||
|
18
|
18
90119-05062-00 Bolt, With Washer |
90119-05062-00 |
from US $1.70 |
||
| replacement | |||||
|
18
|
18
97017-05012-00 Bolt |
97017-05012-00 |
from US $1.52 |
||
