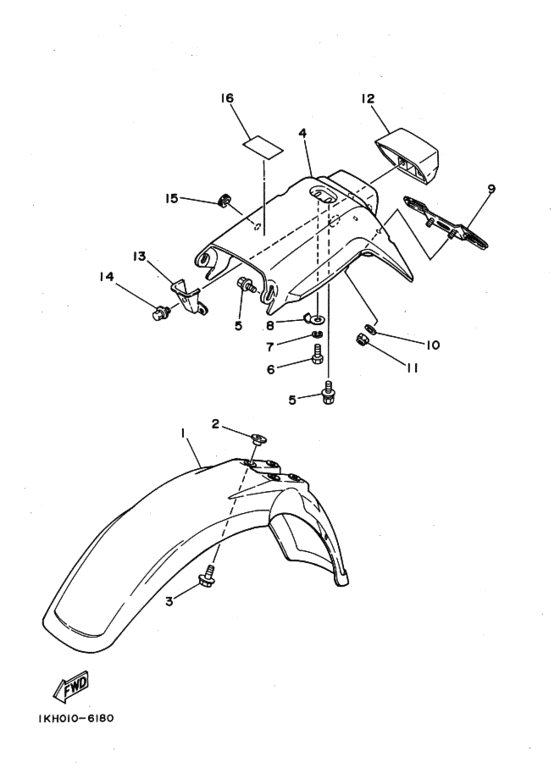

Fender Diagram Yamaha XT225 Serow
- Year
- 1987
- Colour
- Forest Green (FGE; 00MU)
- Model code
- 2LN0
- Sales region
- Japan (010)
- Engine Capacity
- 225
- Color Variant
- A
- Model
- XT225
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1KH-21511-00-00 Fender, Frontホワイト |
1KH-21511-00-00 |
US $132.36 |
||
| replacement | |||||
|
1
|
1
30X-21511-00-00 309 Fender, Front (White)ホワイト |
30X-21511-00-00 |
from US $68.08 |
||
|
2
|
2
903-87066-81-00
Collar
カラー; |
903-87066-81-00 |
— | ||
| replacement | |||||
|
2
|
2
90387-06857-00 Collarカラー; |
90387-06857-00 |
from US $1.52 |
||
|
3
|
3
90119-06063-00 Bolt, With Washer (10V) |
90119-06063-00 |
from US $1.81 |
||
|
4
|
4
1KH-21611-00-00
Fender, Rear
ホワイト |
1KH-21611-00-00 |
— | ||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
ホワイト |
999-99999-99-00 |
— | ||
|
5
|
5
901-19060-56-00
Bolt, With Washer
|
901-19060-56-00 |
— | ||
| replacements | |||||
|
5
|
5
90119-06152-00 Bolt, With Washer |
90119-06152-00 |
from US $1.52 |
||
|
5
|
5
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.36 |
||
|
6
|
6
970-11060-20-00
P57 Bolt (1Lv)
|
970-11060-20-00 |
— | ||
| replacement | |||||
|
6
|
6
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.16 |
||
|
7
|
7
929-90061-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-90061-00-00 |
— | ||
| replacement | |||||
|
7
|
7
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.97 |
||
|
8
|
8
1KH-21615-00-00
Washer, Special 1
|
1KH-21615-00-00 |
— | ||
|
9
|
9
1KH-84751-00-90 Bracket, Licenseユニクロ （ブラツク） |
1KH-84751-00-90 |
from US $16.01 |
||
| replacement | |||||
|
9
|
9
999-99023-51-00 Bracket, Licenseユニクロ （ブラツク） |
999-99023-51-00 |
from US $13.07 |
||
|
10
|
10
902-01060-59-00
Washer, Plate
ワツシヤ，プレート; |
902-01060-59-00 |
— | ||
| replacements | |||||
|
10
|
10
90201-06057-00 Washer, Plateワツシヤ，プレート; |
90201-06057-00 |
from US $1.28 |
||
|
10
|
10
90201-06020-00 Washer, Plateワツシヤ，プレート; |
90201-06020-00 |
from US $1.56 |
||
|
11
|
11
95606-06100-00 Nut, Uナツト，Ｕ; |
95606-06100-00 |
US $1.21 |
||
| replacement | |||||
|
11
|
11
95617-06100-00 Nut, Uナツト，Ｕ; |
95617-06100-00 |
from US $1.39 |
||
|
12
|
12
1KH-2163A-00-00
Cover, Rear Fender 1
カバー，リヤフエンダ １; |
1KH-2163A-00-00 |
— | ||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
カバー，リヤフエンダ １; |
999-99999-99-00 |
— | ||
|
13
|
13
1KH-2163E-00-00
Cover, Rear Fender 2
カバー，リヤフエンダ ２; |
1KH-2163E-00-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
カバー，リヤフエンダ ２; |
999-99999-99-00 |
— | ||
|
14
|
14
90119-06063-00 Bolt, With Washer (10V) |
90119-06063-00 |
from US $1.81 |
||
|
15
|
15
90480-10297-00 Grommet |
90480-10297-00 |
from US $1.70 |
||
|
16
|
16
1KH-21668-00-00
Label, Tire
|
1KH-21668-00-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
