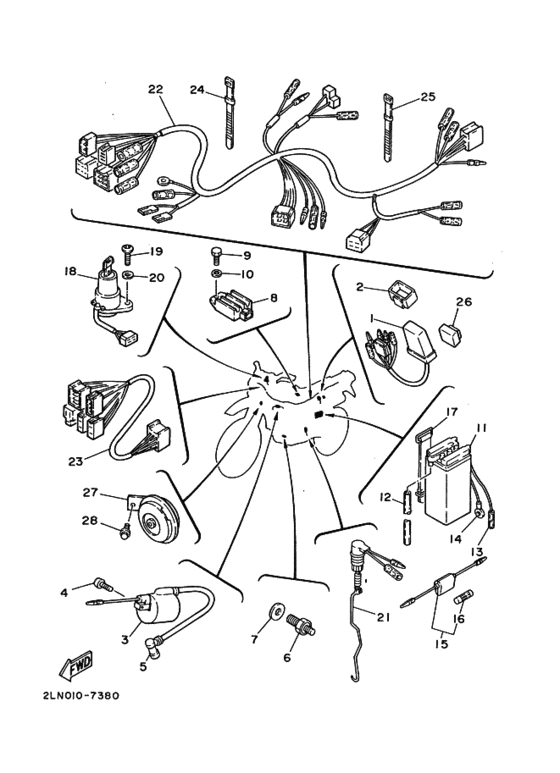

Electrical 1 Diagram Yamaha XT225 Serow
- Year
- 1987
- Colour
- Maxim Yellow (MXY; 005F)
- Model code
- 2LN0
- Sales region
- Japan (010)
- Engine Capacity
- 225
- Color Variant
- B
- Model
- XT225
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2LN-85540-M0-00
C.d.i. Unit Assy
．．．ＣＤＩユニツトアセンブリ; |
2LN-85540-M0-00 |
— | ||
|
2
|
2
34X-85546-00-00
Band
|
34X-85546-00-00 |
— | ||
|
3
|
3
22F-82310-M1-00
Ignition Coil Assy
|
22F-82310-M1-00 |
— | ||
| replacements | |||||
|
3
|
3
4RP-82310-29-00 Ignition Coil Assembly |
4RP-82310-29-00 |
from US $89.39 |
||
|
3
|
3
4RP-82310-28-00 Ignition Coil Assy |
4RP-82310-28-00 |
from US $91.57 |
||
|
3
|
3
4RP-82310-27-00
Ignition Coil Assy
|
4RP-82310-27-00 |
— | ||
|
3
|
3
4RP-82310-26-00 Ignition Coil Assy |
4RP-82310-26-00 |
from US $81.02 |
||
|
3
|
3
4RP-82310-26-00 Ignition Coil Assy |
4RP-82310-26-00 |
from US $81.02 |
||
|
3
|
3
4RP-82310-26-00 Ignition Coil Assy |
4RP-82310-26-00 |
from US $81.02 |
||
|
4
|
4
925-02060-16-00
Screw, Pan Head (J10)
|
925-02060-16-00 |
— | ||
| replacement | |||||
|
4
|
4
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.70 |
||
|
5
|
5
55X-82370-00-00 Plug Cap Assy |
55X-82370-00-00 |
from US $32.87 |
||
| replacements | |||||
|
5
|
5
4BP-82370-00-00 Plug Cap Assy |
4BP-82370-00-00 |
from US $38.34 |
||
|
5
|
5
4BP-82370-01-00 PLUG CAP ASSY |
4BP-82370-01-00 |
from US $38.34 |
||
|
6
|
6
341-82540-01-00
Neutral Switch Assy
ニユートラルスイツチアセンブリ; |
341-82540-01-00 |
— | ||
| replacements | |||||
|
6
|
6
4KM-82540-00-00
Neutral Switch Assy
ニユートラルスイツチアセンブリ; |
4KM-82540-00-00 |
— | ||
|
6
|
6
4GY-82540-10-00 Neutral Switch Assyニユートラルスイツチアセンブリ; |
4GY-82540-10-00 |
from US $26.22 |
||
|
7
|
7
90430-10027-00 Gasket 256-13168-00 |
90430-10027-00 |
from US $1.39 |
||
| replacement | |||||
|
7
|
7
90430-10171-00 Gasket (5R6) |
90430-10171-00 |
from US $1.39 |
||
|
8
|
8
1KH-81960-00-00 Rectifier & Reg. Assembly (1Kh-レクチフアイヤアンドレギユレータアセンブリ; |
1KH-81960-00-00 |
from US $109.72 |
||
| replacement | |||||
|
8
|
8
2JA-81960-A0-00 Rectifier & Reg. Assembly (1Kh-レクチフアイヤアンドレギユレータアセンブリ; |
2JA-81960-A0-00 |
US $126.97 |
||
|
9
|
9
97313-06012-00 Bolt |
97313-06012-00 |
from US $3.12 |
||
| replacements | |||||
|
9
|
9
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
9
|
9
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
|
10
|
10
929-01066-00-00
Washer
ワツシヤ，プレート; |
929-01066-00-00 |
— | ||
| replacements | |||||
|
10
|
10
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.18 |
||
|
10
|
10
902-01061-A5-00 Washer, Plate (4H7)ワツシヤ，プレート; |
902-01061-A5-00 |
from US $2.08 |
||
|
10
|
10
92907-06600-00 Washer, Plateワツシヤ，プレート; |
92907-06600-00 |
from US $1.18 |
||
|
11
|
11
90890-85841-00
Battery Assy (Gm3-3B Gs)
バツテリー ; ＧＭ３−３Ｂ ＧＳ |
90890-85841-00 |
— | ||
|
12
|
12
90445-08338-00 Hose (L500)ホース，ブレーキ １; |
90445-08338-00 |
US $10.91 |
||
| replacement | |||||
|
12
|
12
90445-084J0-00 Pipeホース，ブレーキ １; |
90445-084J0-00 |
from US $8.76 |
||
|
13
|
13
1M1-82115-00-00 Wire, Plus Leadワイヤ，プラスリード; |
1M1-82115-00-00 |
from US $26.21 |
||
|
14
|
14
558-82116-00-00 Wire, Minus Leadワイヤ，マイナスリード; |
558-82116-00-00 |
US $9.41 |
||
|
15
|
15
353-82150-00-00
Fuse Holder Assy
フユーズホルダアセンブリ; |
353-82150-00-00 |
— | ||
| replacements | |||||
|
15
|
15
55K-82150-01-00 Fuse H0Lder Assyフユーズホルダアセンブリ; |
55K-82150-01-00 |
from US $11.33 |
||
|
15
|
15
55K-82150-02-00 FUSE HOLDER ASSYフユーズホルダアセンブリ; |
55K-82150-02-00 |
from US $11.55 |
||
|
16
|
16
116-82151-00-00
Fuse (12V-10A)
．フユーズ ; １０Ａ |
116-82151-00-00 |
— | ||
| replacement | |||||
|
16
|
16
1A0-82151-00-00 Fuse (12V-10A)．フユーズ ; １０Ａ |
1A0-82151-00-00 |
from US $4.96 |
||
|
17
|
17
18G-82131-00-00 Band, Battery |
18G-82131-00-00 |
US $7.37 |
||
| replacement | |||||
|
17
|
17
7H3-82131-00-00 Band, Battery |
7H3-82131-00-00 |
from US $5.06 |
||
|
18
|
18
2GK-82021-00-00
Key Set
キーセツト; ＡＰ＊１ |
2GK-82021-00-00 |
— | ||
| replacement | |||||
|
18
|
18
2GK-82027-01-00
Key Set
キーセツト; ＡＰ＊１ |
2GK-82027-01-00 |
— | ||
|
18
|
18
2GK-82501-00-00 Main Switch Steering Lock |
2GK-82501-00-00 |
from US $134.54 |
||
| replacement | |||||
|
18
|
18
2GK-82501-01-00
Main Switch Steering Lock
|
2GK-82501-01-00 |
— | ||
|
19
|
19
90149-06228-00 Screw |
90149-06228-00 |
from US $1.70 |
||
| replacement | |||||
|
19
|
19
90149-06308-00 Screw(4Hm) |
90149-06308-00 |
from US $1.81 |
||
|
20
|
20
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.18 |
||
|
21
|
21
1KH-82530-02-00
Stop Switch Assy
|
1KH-82530-02-00 |
— | ||
|
22
|
22
2LN-82590-00-00
Wire Harness Assy
ワイヤハーネスアセンブリ; |
2LN-82590-00-00 |
— | ||
| replacement | |||||
|
22
|
22
999-99999-99-00
Not Available
ワイヤハーネスアセンブリ; |
999-99999-99-00 |
— | ||
|
23
|
23
1KH-84159-00-00
Cord, Headlight
コード，ヘツドライト; |
1KH-84159-00-00 |
— | ||
| replacement | |||||
|
23
|
23
999-99999-99-00
Not Available
コード，ヘツドライト; |
999-99999-99-00 |
— | ||
|
24
|
24
25G-83936-00-00 Band, Switch Cordバンド，スイツチコード; |
25G-83936-00-00 |
from US $1.56 |
||
| replacement | |||||
|
24
|
24
25G-83936-01-00 Band, Switch Cordバンド，スイツチコード; |
25G-83936-01-00 |
from US $1.56 |
||
|
25
|
25
366-82591-00-00 Band, Switch Cord |
366-82591-00-00 |
from US $1.56 |
||
| replacement | |||||
|
25
|
25
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
26
|
26
29G-83350-20-00 Flasher Relay Assyフラツシヤリレーアセンブリ; |
29G-83350-20-00 |
from US $47.25 |
||
|
27
|
27
1KH-83371-00-00
Horn
ホーン; |
1KH-83371-00-00 |
— | ||
| replacement | |||||
|
27
|
27
3WN-83371-10-00
Horn
ホーン; |
3WN-83371-10-00 |
— | ||
|
28
|
28
91006-06010-00 Bolt, Flangeボルト，フランジ; |
91006-06010-00 |
from US $1.07 |
||
| replacement | |||||
|
28
|
28
95817-06010-00 Bolt, Flangeボルト，フランジ; |
95817-06010-00 |
from US $1.18 |
||
