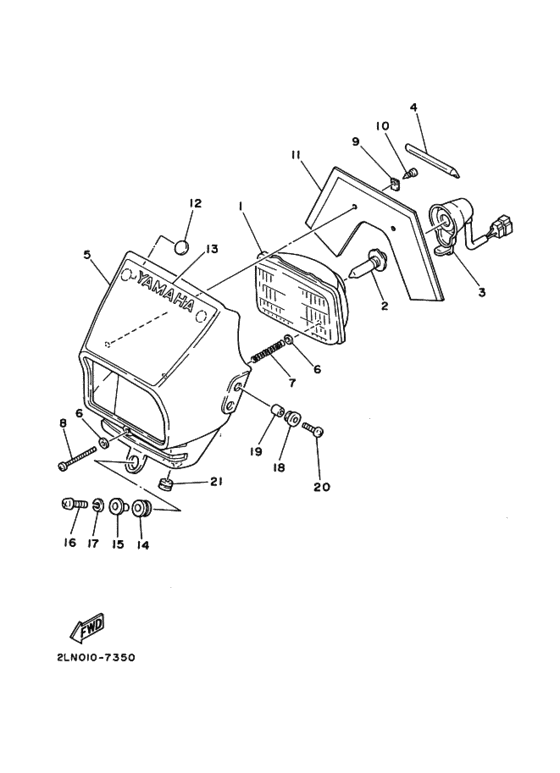

Headlight Diagram Yamaha XT225 Serow
- Year
- 1987
- Colour
- Maxim Yellow (MXY; 005F)
- Model code
- 2LN0
- Sales region
- Japan (010)
- Engine Capacity
- 225
- Color Variant
- B
- Model
- XT225
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53Y-84120-00-00
Lens Assy
|
53Y-84120-00-00 |
— | ||
|
2
|
2
35R-84314-00-00 Bulb (12V30/30W) (2Gn-84314-00-バルブ，ヘツドライト ; １２Ｖ−３０／３０Ｗ |
35R-84314-00-00 |
US $21.49 |
||
| replacement | |||||
|
2
|
2
2GN-84314-00-XX
Bulb (12V30/30W) (2Gn-84314-00-
バルブ，ヘツドライト ; １２Ｖ−３０／３０Ｗ |
2GN-84314-00-XX |
— | ||
|
3
|
3
1KH-84140-00-00
Socket Cord Assy
ソケツトコードアセンブリ; |
1KH-84140-00-00 |
— | ||
| replacement | |||||
|
3
|
3
1KH-84140-01-00
Socket Cord Assy
ソケツトコードアセンブリ; |
1KH-84140-01-00 |
— | ||
|
4
|
4
26A-84143-00-00
Damper, Headlight Stay
ダンパ，ヘツドライトステー; |
26A-84143-00-00 |
— | ||
|
5
|
5
1KH-84111-00-00 Body, Headlight |
1KH-84111-00-00 |
US $52.86 |
||
|
6
|
6
929-01046-00-00
Washer
ワツシヤ，プレート; |
929-01046-00-00 |
— | ||
| replacement | |||||
|
6
|
6
929-90046-00-00 Washer, Plateワツシヤ，プレート; |
929-90046-00-00 |
from US $1.07 |
||
|
7
|
7
18A-84132-00-00 Spring, Screw |
18A-84132-00-00 |
from US $4.11 |
||
|
8
|
8
18A-84131-00-00 Screw, Rim Adjusting |
18A-84131-00-00 |
from US $4.39 |
||
|
9
|
9
26A-8411H-00-00 Plate, Stopperプレート，ストツパー; |
26A-8411H-00-00 |
US $3.37 |
||
|
10
|
10
97701-40610-00 Screw, Tapping |
97701-40610-00 |
US $1.56 |
||
| replacement | |||||
|
10
|
10
97780-40110-00 Screw, Tapping |
97780-40110-00 |
from US $1.56 |
||
|
11
|
11
1KH-84196-01-00
Cover, Socket
カバー，ソケツト; |
1KH-84196-01-00 |
— | ||
|
12
|
12
47G-83341-00-00
Damper, Flasher
|
47G-83341-00-00 |
— | ||
|
13
|
13
2LN-28368-10-00
Emblem
ＵＲ イエロー ヨウ |
2LN-28368-10-00 |
— | ||
|
14
|
14
90480-14023-00 Grommet 839774310000 |
90480-14023-00 |
from US $1.66 |
||
|
15
|
15
903-87063-E6-00
Collar
カラー; |
903-87063-E6-00 |
— | ||
| replacement | |||||
|
15
|
15
90387-06158-00 Collarカラー; |
90387-06158-00 |
from US $1.66 |
||
|
16
|
16
92506-06025-00 Screw |
92506-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
16
|
16
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
17
|
17
929-06061-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-06061-00-00 |
— | ||
| replacement | |||||
|
17
|
17
92907-06100-00 Washer, Springワツシヤ，スプリング; |
92907-06100-00 |
from US $0.88 |
||
|
18
|
18
90480-12072-00 Grommet |
90480-12072-00 |
from US $1.94 |
||
|
19
|
19
90387-066H9-00 Collarカラー; |
90387-066H9-00 |
from US $2.94 |
||
|
20
|
20
98903-05020-00 Screw, Bind |
98903-05020-00 |
US $1.56 |
||
|
21
|
21
90480-12053-00 Grommet |
90480-12053-00 |
from US $1.94 |
||
