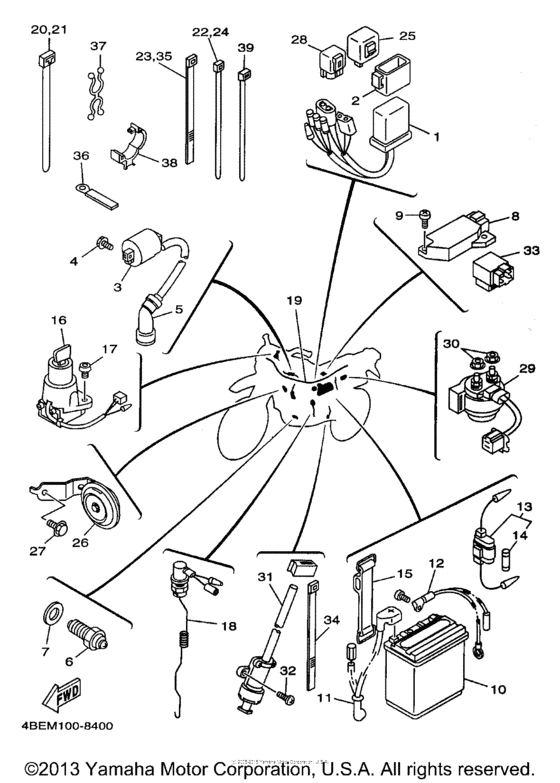

Electrical (1) Diagram Yamaha XT225 Serow
- Year
- 1998
- Sales region
- USA
- Engine Capacity
- 225
- Model
- XT225
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4BE-85540-01-00
C.d.i. Unit Assembly
|
4BE-85540-01-00 |
— | ||
|
2
|
2
3RW-85546-00-00 Band |
3RW-85546-00-00 |
from US $14.03 |
||
|
3
|
3
4BE-82310-10-00 Ignition Coil Assy |
4BE-82310-10-00 |
from US $59.27 |
||
| replacements | |||||
|
3
|
3
3KJ-82310-10-00
Ignition Coil Assy
|
3KJ-82310-10-00 |
— | ||
|
3
|
3
3KJ-82310-11-00
IGNITION COIL ASSY
|
3KJ-82310-11-00 |
— | ||
|
3
|
3
3KJ-82310-12-00 IGNITION COIL ASSY |
3KJ-82310-12-00 |
from US $50.67 |
||
|
3
|
3
3KJ-82310-13-00 IGNITION COIL ASSY |
3KJ-82310-13-00 |
from US $56.83 |
||
|
3
|
3
3KJ-82310-13-00 IGNITION COIL ASSY |
3KJ-82310-13-00 |
from US $56.83 |
||
|
3
|
3
3KJ-82310-13-00 IGNITION COIL ASSY |
3KJ-82310-13-00 |
from US $56.83 |
||
|
4
|
4
950-27060-16-00
Bolt, Flange
|
950-27060-16-00 |
— | ||
| replacement | |||||
|
4
|
4
901-05066-96-00 Bolt, Flange |
901-05066-96-00 |
from US $2.64 |
||
|
5
|
5
3NS-82370-00-00 Plug Cap Assy |
3NS-82370-00-00 |
from US $21.77 |
||
| replacement | |||||
|
5
|
5
5EL-82370-00-00 Plug Cap Assy |
5EL-82370-00-00 |
from US $24.92 |
||
|
6
|
6
4KM-82540-00-00
Neutral Switch Assy
|
4KM-82540-00-00 |
— | ||
| replacement | |||||
|
6
|
6
4GY-82540-10-00 Neutral Switch Assy |
4GY-82540-10-00 |
from US $26.22 |
||
|
7
|
7
90430-10148-00 Gasket |
90430-10148-00 |
from US $1.66 |
||
|
8
|
8
3TJ-81960-02-00 Rectifier & Regulator Assy |
3TJ-81960-02-00 |
from US $198.22 |
||
|
9
|
9
985-07060-25-00
Screw, Pan Head
|
985-07060-25-00 |
— | ||
| replacement | |||||
|
9
|
9
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
10
|
10
4BE-82100-11-00
Ytx7Lbs Yuasa Batte
|
4BE-82100-11-00 |
— | ||
| replacements | |||||
|
10
|
10
YTX-7LBS0-00-00 Bat Ytx7L-Bs (Ptx7L-Bs) Yu |
YTX-7LBS0-00-00 |
US $145.17 |
||
|
10
|
10
GTX-7LBS0-00-00
CB14A-A & A1 GS BAT
|
GTX-7LBS0-00-00 |
— | ||
|
11
|
11
4JG-82115-00-00 Wire, Plus Lead |
4JG-82115-00-00 |
from US $35.99 |
||
|
12
|
12
4JG-82116-00-00 Wire, Minus Lead |
4JG-82116-00-00 |
from US $19.98 |
||
|
13
|
13
2TV-82150-02-00 Fuse Holder Assembly |
2TV-82150-02-00 |
from US $14.45 |
||
|
14
|
14
4X7-82151-00-00 Fuse (15A)15A |
4X7-82151-00-00 |
from US $4.96 |
||
|
15
|
15
3L8-82131-01-00
Band, Battery
|
3L8-82131-01-00 |
— | ||
| replacement | |||||
|
15
|
15
22F-82131-00-00 Band, Battery |
22F-82131-00-00 |
from US $15.44 |
||
|
16
|
16
2HV-82501-00-00
Main Switch Steering Lock
|
2HV-82501-00-00 |
— | ||
|
17
|
17
90149-06228-00 Screw |
90149-06228-00 |
from US $1.70 |
||
| replacement | |||||
|
17
|
17
90149-06308-00 Screw(4Hm) |
90149-06308-00 |
from US $1.81 |
||
|
18
|
18
5BT-82530-00-00 Stop Switch Assy |
5BT-82530-00-00 |
from US $35.06 |
||
|
19
|
19
4BE-82590-01-00 Wire Harness Assembly |
4BE-82590-01-00 |
US $261.43 |
||
|
20
|
20
90464-20044-00 Clamp |
90464-20044-00 |
from US $1.56 |
||
| replacement | |||||
|
20
|
20
90464-20258-00 Clamp |
90464-20258-00 |
from US $1.66 |
||
|
21
|
21
90464-20044-00 Clamp |
90464-20044-00 |
from US $1.56 |
||
| replacement | |||||
|
21
|
21
90464-20258-00 Clamp |
90464-20258-00 |
from US $1.66 |
||
|
22
|
22
90465-13152-00 Band |
90465-13152-00 |
from US $1.28 |
||
| replacement | |||||
|
22
|
22
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.52 |
||
|
23
|
23
90464-16061-00 Band |
90464-16061-00 |
from US $1.28 |
||
| replacement | |||||
|
23
|
23
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.52 |
||
|
24
|
24
90465-13152-00 Band |
90465-13152-00 |
from US $1.28 |
||
| replacement | |||||
|
24
|
24
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.52 |
||
|
25
|
25
4BE-83350-00-00 Flasher Relay Assy |
4BE-83350-00-00 |
from US $51.81 |
||
| replacements | |||||
|
25
|
25
4VR-83350-00-00 Flasher Relay Assy |
4VR-83350-00-00 |
from US $51.81 |
||
|
25
|
25
4VR-83350-01-00 |
4VR-83350-01-00 |
US $64.43 |
||
|
25
|
25
4VR-83350-02-00 Flasher Relay Assy |
4VR-83350-02-00 |
US $61.16 |
||
|
25
|
25
4VR-83350-02-00 Flasher Relay Assy |
4VR-83350-02-00 |
US $61.16 |
||
|
26
|
26
3RW-83371-00-00 Horn |
3RW-83371-00-00 |
from US $37.71 |
||
| replacement | |||||
|
26
|
26
3RW-83371-11-00 Horn |
3RW-83371-11-00 |
from US $37.71 |
||
|
27
|
27
958-07060-10-00
Bolt, Flange
|
958-07060-10-00 |
— | ||
| replacement | |||||
|
27
|
27
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.18 |
||
|
28
|
28
3RW-81950-00-00 Relay Assy (3Rw-00)3RW-00 |
3RW-81950-00-00 |
from US $30.46 |
||
|
29
|
29
3AY-81940-00-00
Starter Relay Assy (Ms5D-611)
|
3AY-81940-00-00 |
— | ||
| replacement | |||||
|
29
|
29
4KD-81940-00-00 Starter Relay Assy (Ms5D-611) |
4KD-81940-00-00 |
from US $97.54 |
||
|
30
|
30
95707-06500-00 Nut, Flange |
95707-06500-00 |
from US $1.12 |
||
|
31
|
31
3LD-82566-40-00 Switch, Side Stand |
3LD-82566-40-00 |
from US $61.74 |
||
| replacement | |||||
|
31
|
31
3LD-82566-41-00 Switch, Side Stand |
3LD-82566-41-00 |
US $77.69 |
||
|
32
|
32
98507-05016-00 Screw, Pan Head |
98507-05016-00 |
from US $1.18 |
||
|
33
|
33
29U-81950-93-00 Relay Assy (Aca12115-1)29U-93 |
29U-81950-93-00 |
from US $35.70 |
||
|
34
|
34
90464-16061-00 Band |
90464-16061-00 |
from US $1.28 |
||
| replacement | |||||
|
34
|
34
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.52 |
||
|
35
|
35
90464-16061-00 Band |
90464-16061-00 |
from US $1.28 |
||
| replacement | |||||
|
35
|
35
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.52 |
||
|
36
|
36
90465-06332-00 Clamp(Ja1) |
90465-06332-00 |
from US $2.41 |
||
| replacement | |||||
|
36
|
36
90465-06376-00 Clamp |
90465-06376-00 |
from US $2.41 |
||
|
37
|
37
90464-16115-00 Clamp |
90464-16115-00 |
from US $2.69 |
||
|
38
|
38
90464-16061-00 Band |
90464-16061-00 |
from US $1.28 |
||
| replacement | |||||
|
38
|
38
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.52 |
||
|
39
|
39
90464-10190-00 Clamp |
90464-10190-00 |
from US $1.81 |
||
